Applies to: OnCAFE

Summary

Physical credential formats define which credential bit formats are accepted within an OnCAFE organization. These settings help ensure that only approved credential formats can be assigned and  interpreted. Selecting the correct credential formats is important for supporting existing cards, Wavelynx LEAF credentials, HID formats, CSN-based credentials, and other physical credential technologies.

This article provides instructions for configuring physical credential formats.

Configuring Physical Credential Formats

To configure physical credential formats:

1. Log in to OnCAFE.

2. Select the target organization.

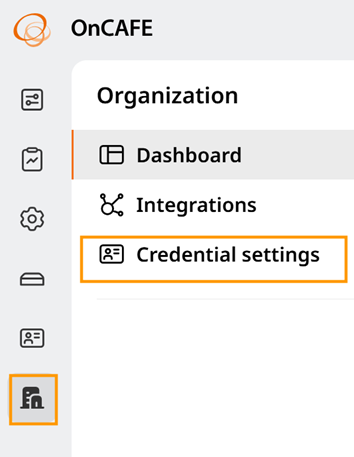

3. From the left-side navigation menu, select Organization > Credential settings.

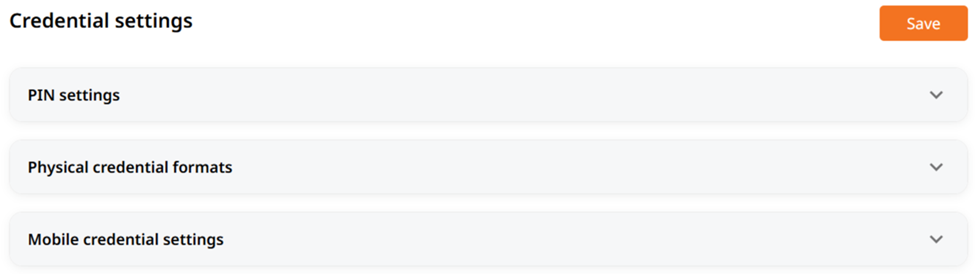

4. Expand the Physical credential formats section.

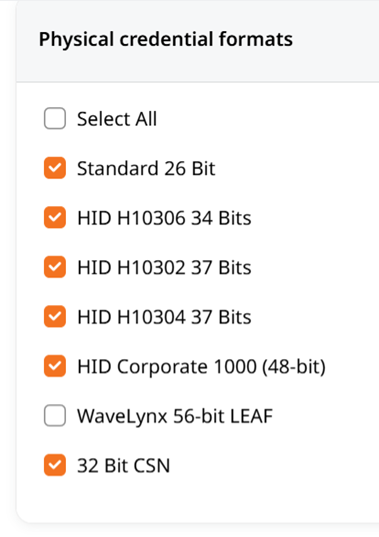

5. Select the checkbox next to each format the organization needs to support. Use Select All if all listed formats should be enabled.




   NOTE: See the table at the end of this article for format descriptions.

6. Click Save.

Available Credential Formats

The following credential format options are shown on the Credential settings page:
