Applies to: OnCAFE

Summary

Near Field Communication (NFC) / Wallet credentials allow a user to add a supported Wavelynx Wallet mobile pass to Apple Wallet and use an iPhone as an NFC-based access credential.

After the NFC/Wallet credential is issued in OnCAFE, the user must activate the pass from the OnCAFE mobile app and add it to Apple Wallet before it can be used at supported readers.

This article provides instructions for claiming an NCF/Wallet credential on iPhone.

Prerequisites

Before claiming an NFC/Wallet credential on iPhone:

• The user must have the OnCAFE mobile app installed.

• The user must be able to log in to the OnCAFE mobile app.

• A Wavelynx Wallet credential must already be issued to the identity in OnCAFE.

• The credential must be within the configured activation date range.

• The user must have a supported iPhone.

• The user must have Apple Wallet available on the device.

• The site must have supported NFC/Wallet readers installed and configured.

Claiming an NFC/Wallet Credential on iPhone

To claim an NFC/Wallet credential on iPhone:

1. Open the OnCAFE mobile app on the iPhone.

2. (If prompted) Log in to the OnCAFE mobile app using the account associated with the issued credential.

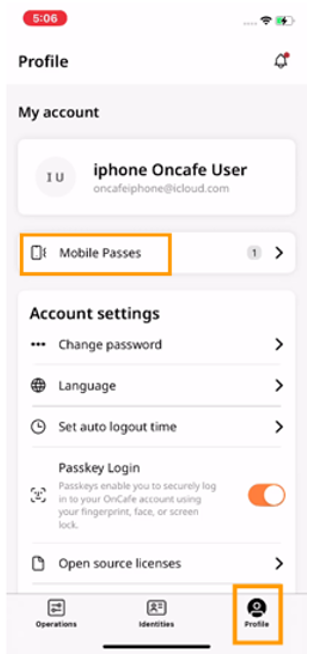

3. From the bottom navigation menu, click Profile > Mobile Passes



4. Locate the pending Wavelynx Wallet credential.



   The credential may display the following information:
   Pending Activation
   Wavelynx Wallet
   NFC
   Start date
   Credential ID

5. If the credential does not appear under Mobile Passes, verify that it was issued to the correct identity and user account in OnCAFE.

6. Select the pending Wavelynx Wallet credential.

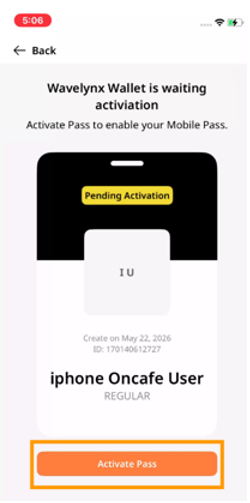

7. On the activation screen, click Activate Pass.



   Wait for the activation process to complete.

   IMPORTANT: This step must be complete before adding the pass to Apple Wallet.

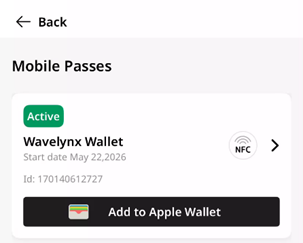

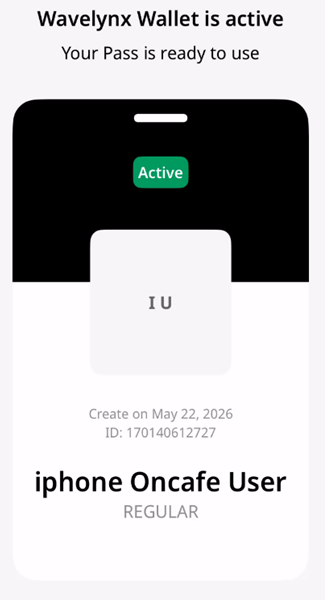

8. Confirm the credential status changes to Active.



9. Click Add to Apple Wallet.

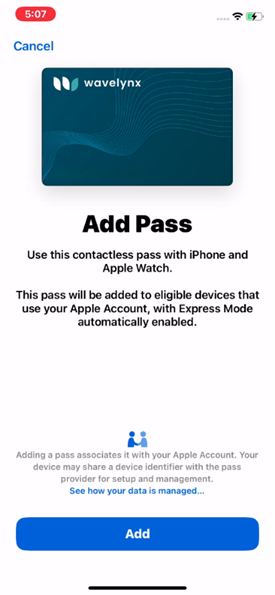

10. Click Add.



11. Confirm the pass displays Added to Wallet, then return to the OnCAFE mobile app.

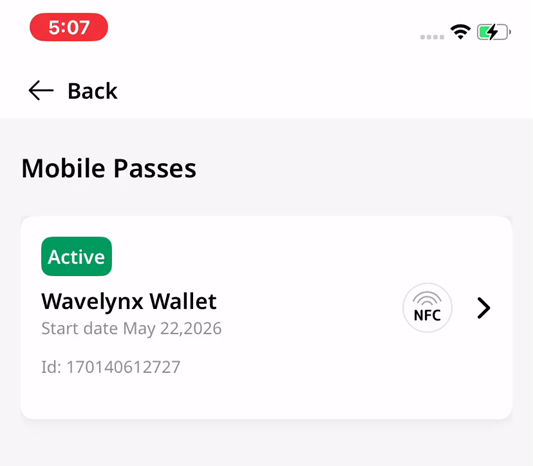

12. Confirm the Wavelynx Wallet credential displays as Active under Mobile Passes.



13. Test the credential at a supported NFC/Wallet reader. Access is granted if the credential is active and the identity has valid access permissions assigned.
