Applies to: ConfigPro

Summary

This article describes how to onboard devices to OnCloud with ConfigPro.

Onboarding Devices to OnCloud

To onboard devices to OnCloud:

1. Log in to ConfigPro.

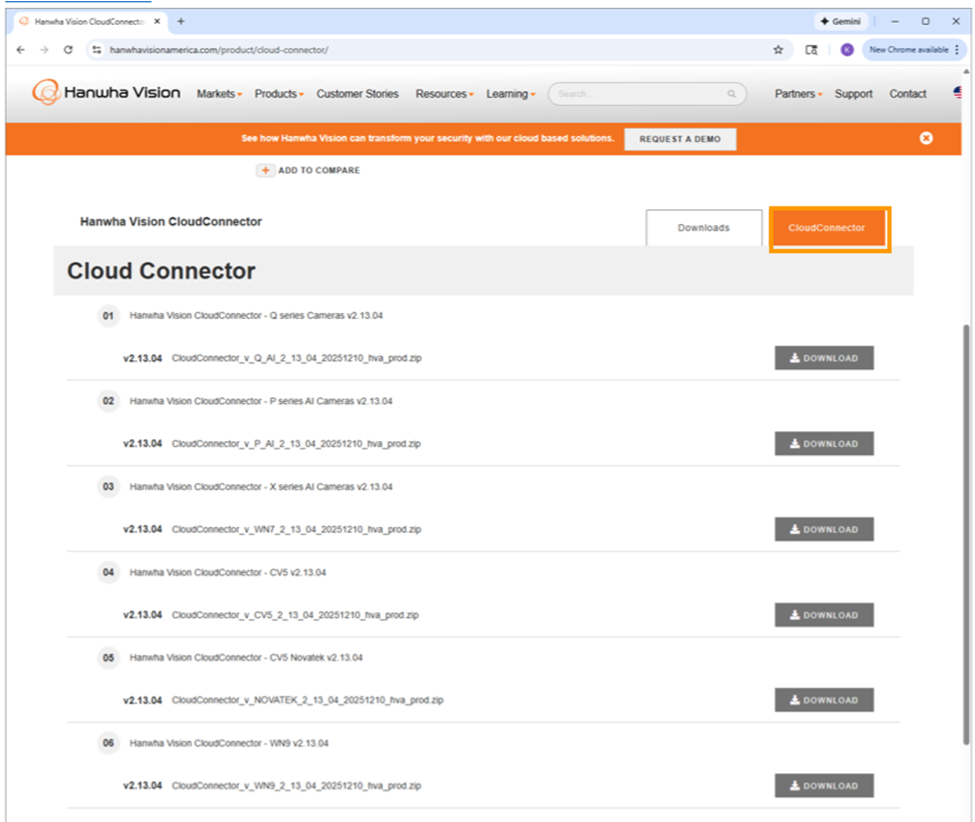

2. Download the latest CloudConnector files that are relevant to your devices from the Hanwha Vision website.

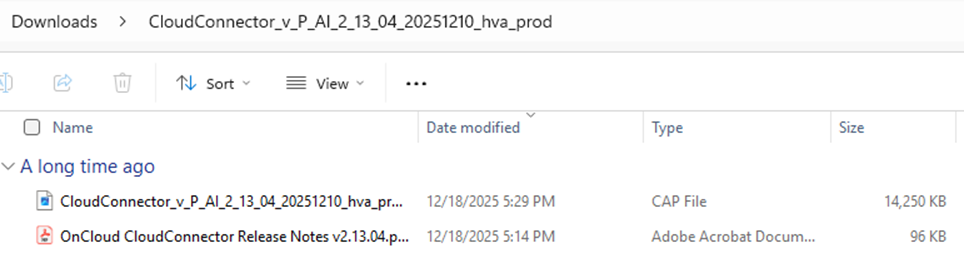

3. Extract the downloaded zip file and note the location.

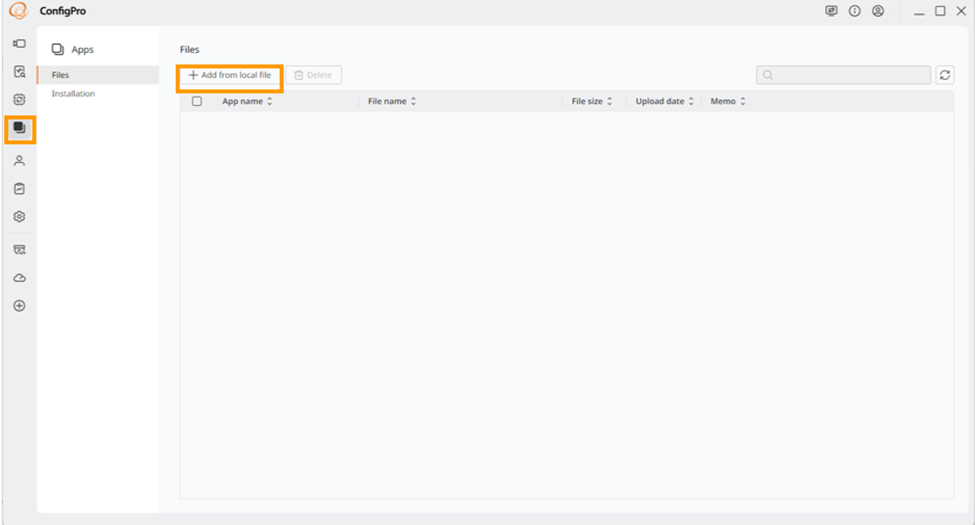

4. Navigate to the Apps tab and select Add from local file.

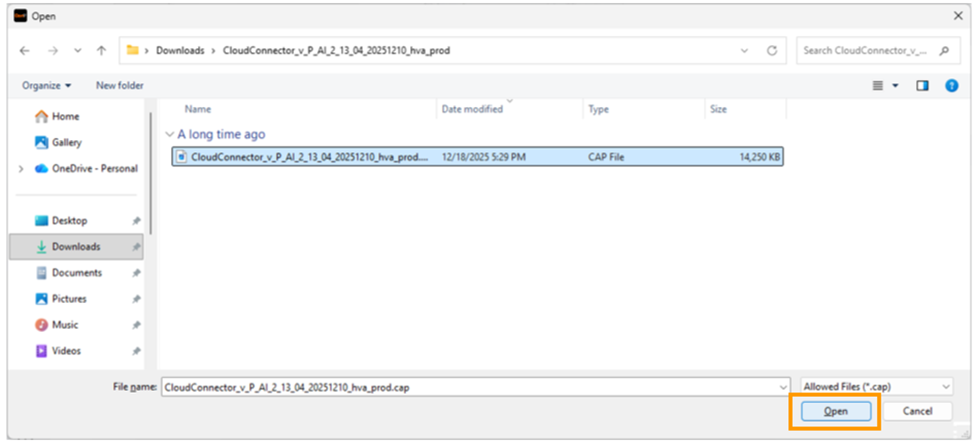

5. Locate the extracted CloudConnector file and open it.

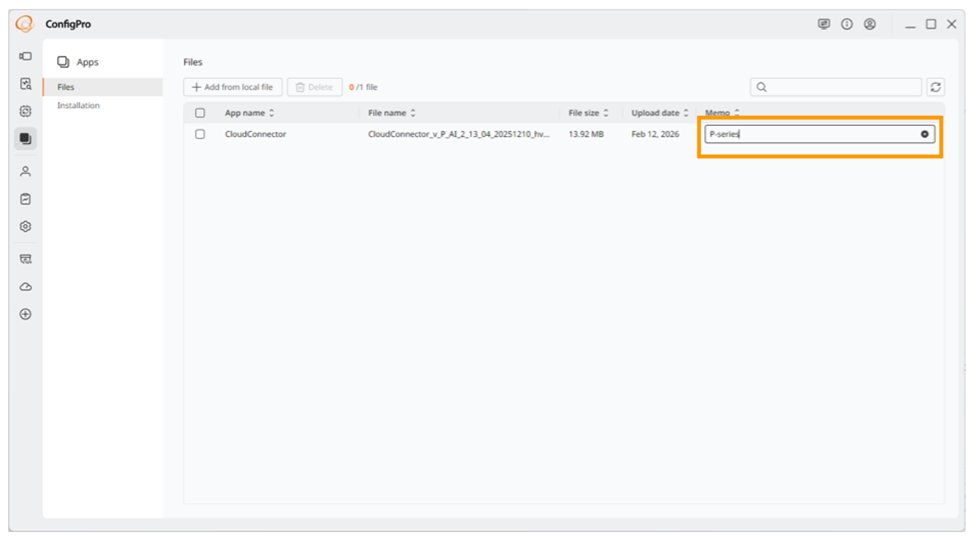

6. After the CloudConnector file is uploaded, add a Memo if needed.

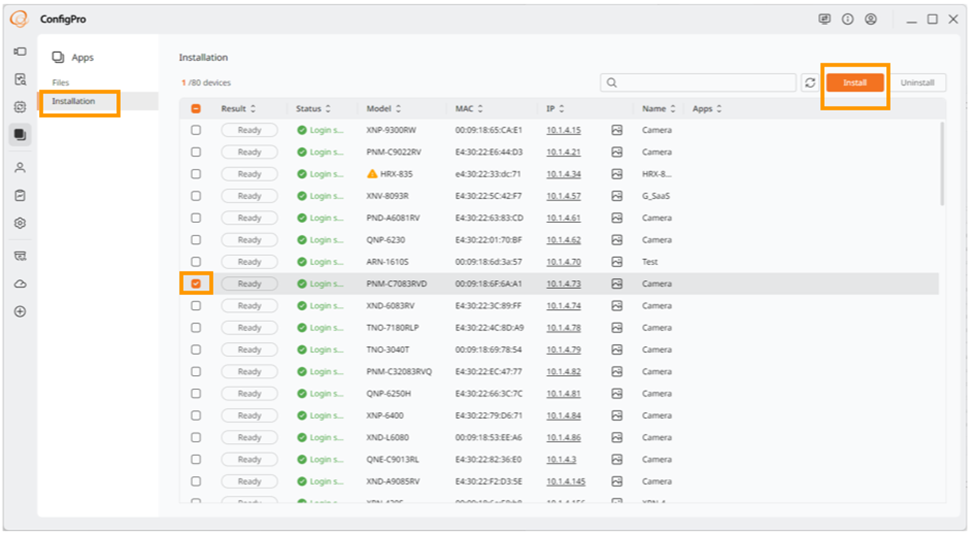

7. Navigate to the Installation tab, select the device in which to install the CloudConnector, and click Install.

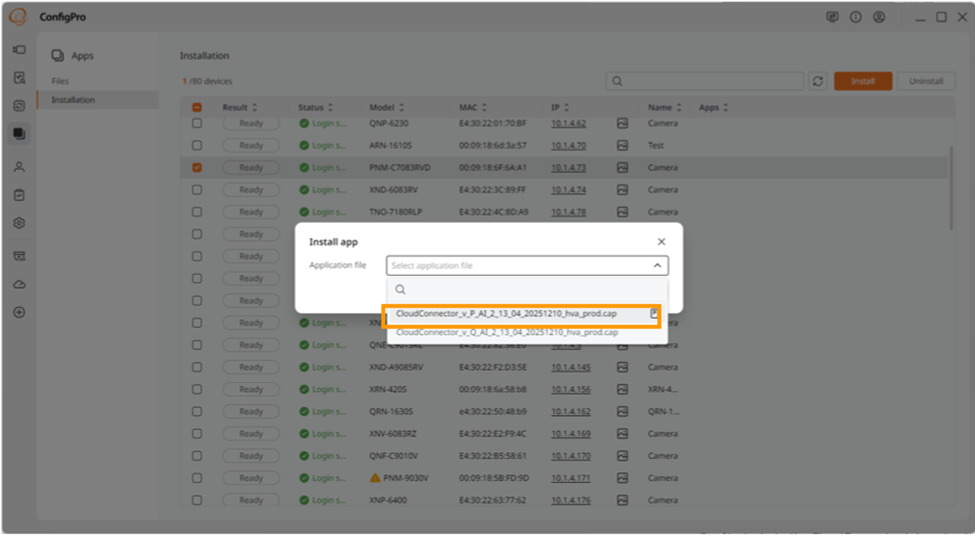

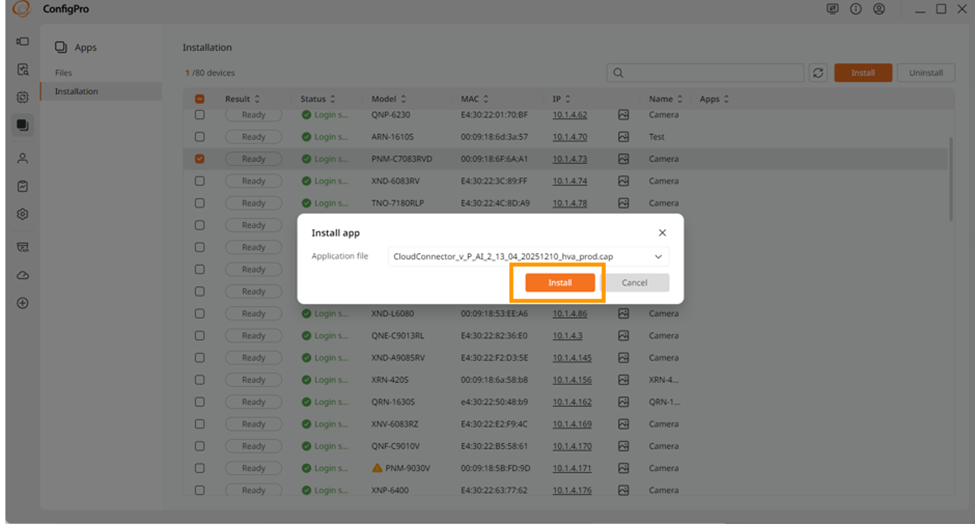

8. Locate the CloudConnector file to install to your selected devices.


9. Click Install.

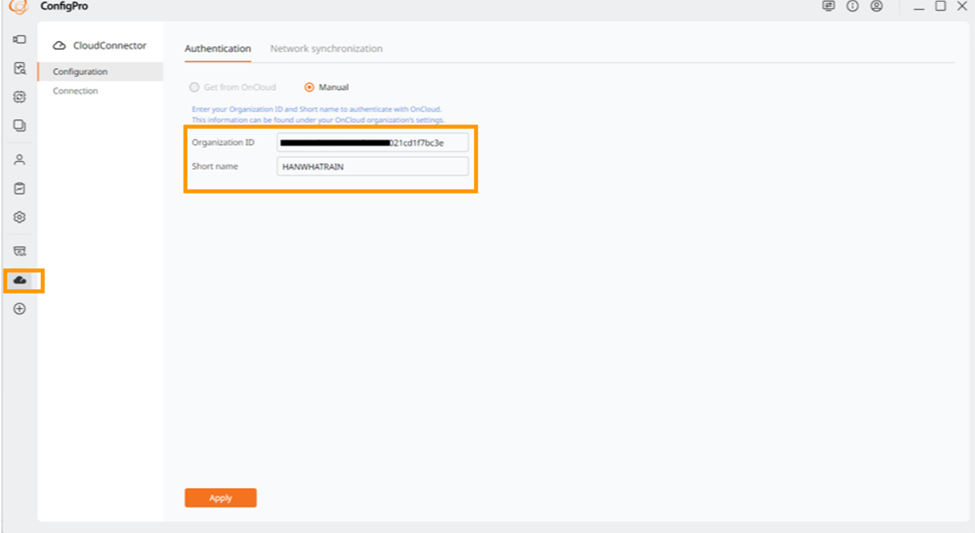

10. Navigate to the CloudConnector tab and enter your Organization ID and Short name.


11. Click Apply.

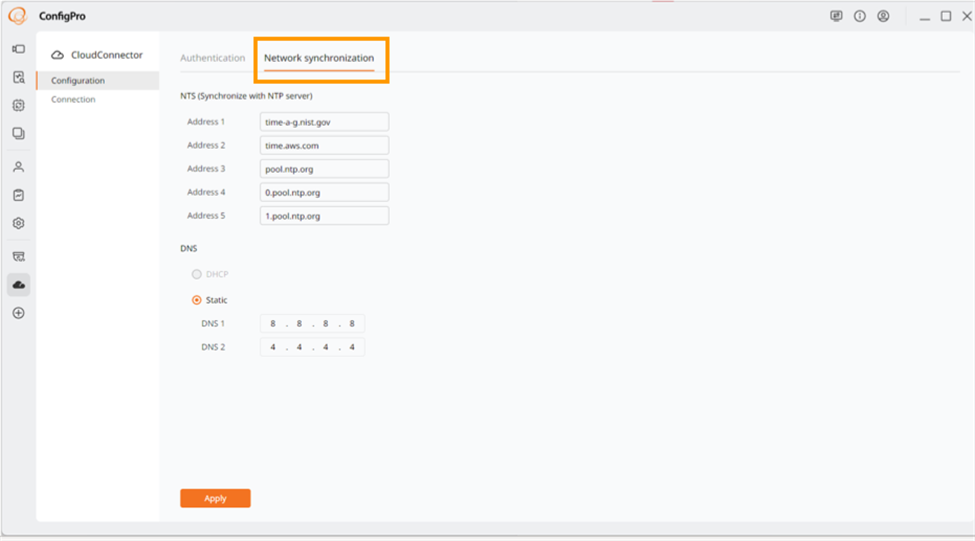

12. Navigate to the Network Synchronization tab and enter your NTP server and DNS information.


13. Click Apply.

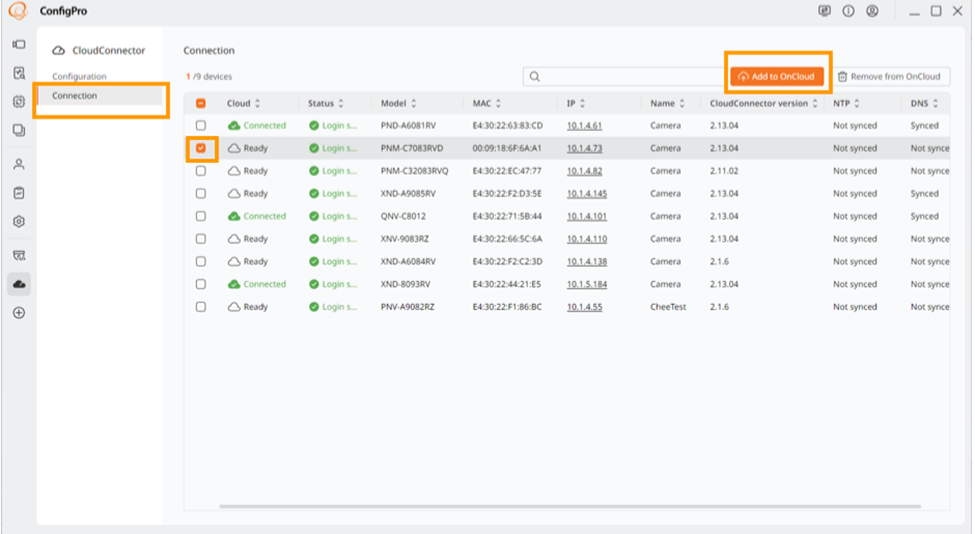

14. Navigate to the Connection tab and select the devices to onboard to OnCloud.




15. Select Add to OnCloud.

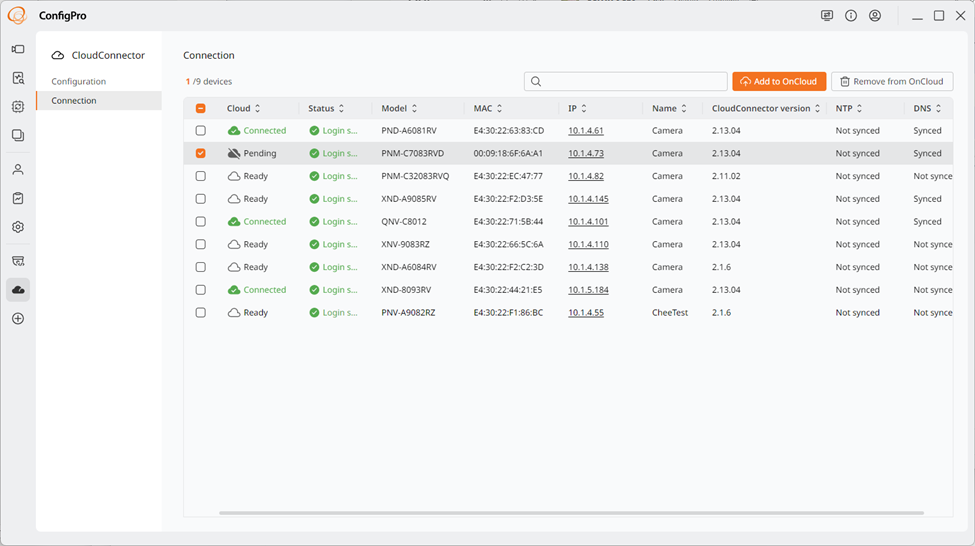

    The status changes to Pending when the device is ready to be onboarded from OnCloud.



16. Navigate to OnCloud.

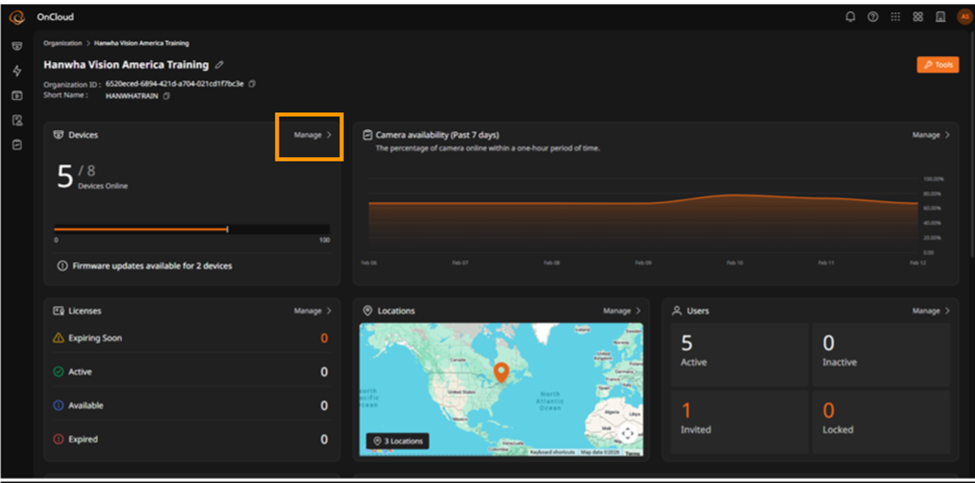

17. From the Org dashboard screen, click Manage.

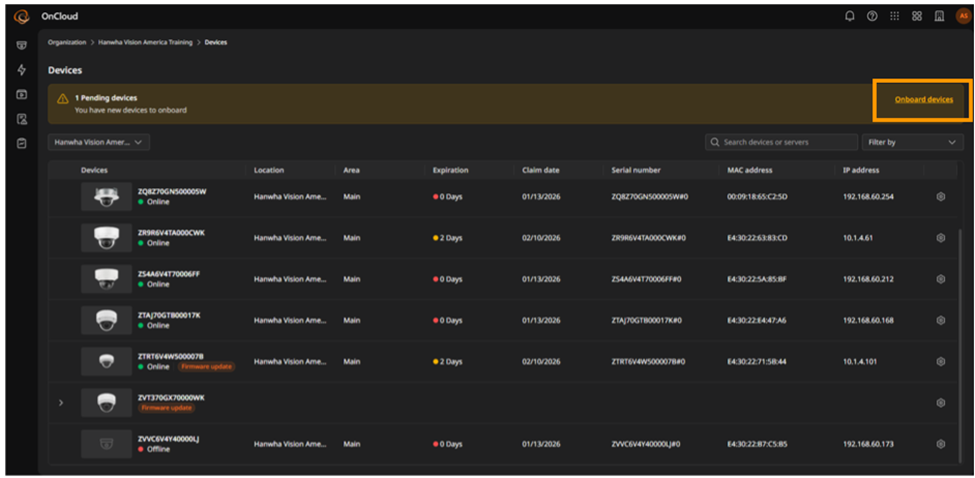

18. Click Onboard devices.


19. Select the appropriate box for the device.

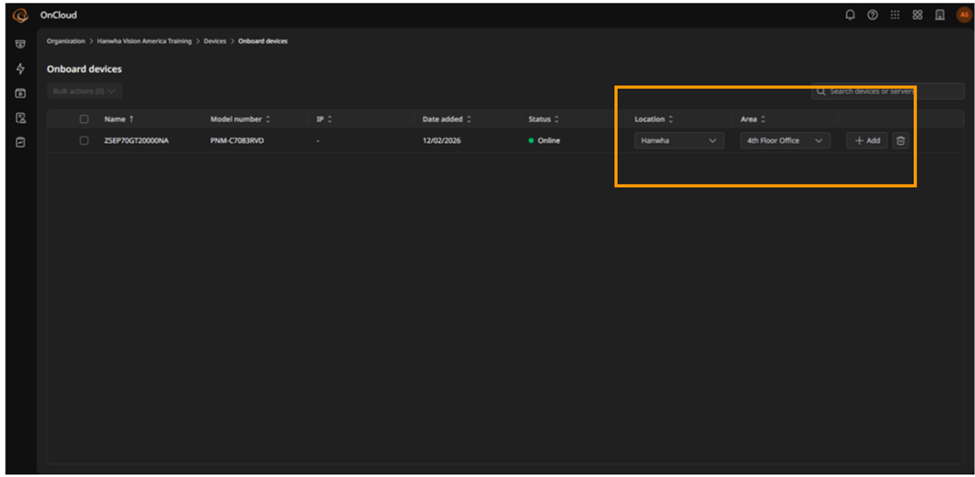

20. Select the area and location, then click +Add to claim the devices.

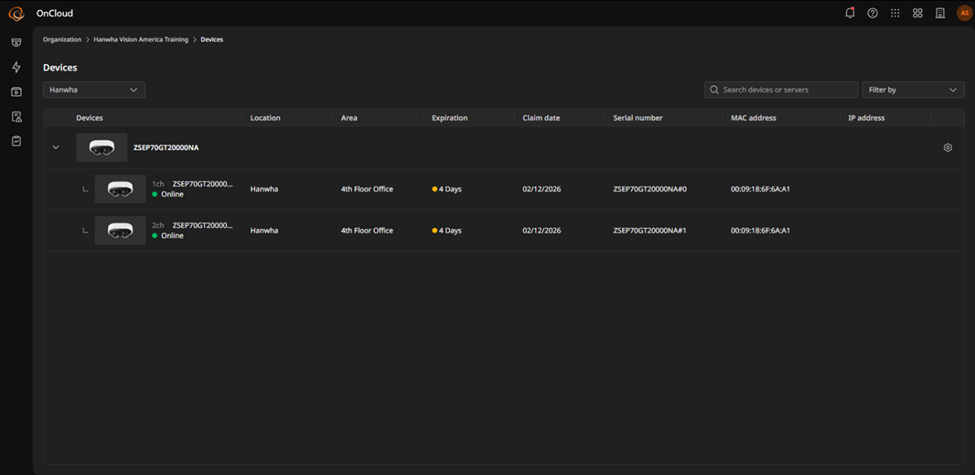

    The devices have been added successfully.

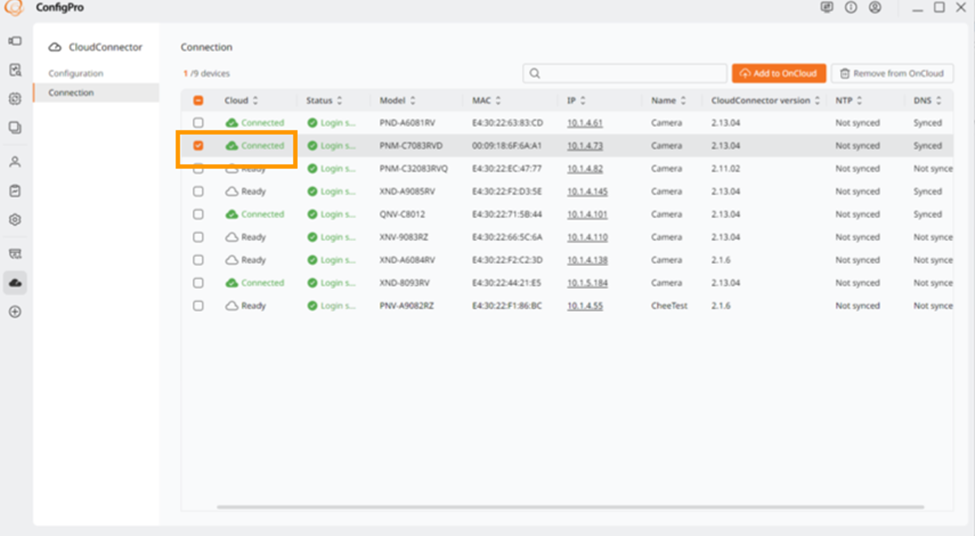

    The status changes to Connected in ConfigPro.
