Applies to: Entity Points configured with OnCAFE

Summary

This article provides instructions for enabling and configuring Multi-Factor Authentication (MFA) on Entity Points (such as doors, elevators, and other access-controlled points) within OnCAFE.

Prerequisites

• Administrative/Advanced Role access to OnCAFE
• Target Entity Point (e.g., door) must already be created and assigned to a controller
• Reader(s) configured on the Entity Point

Applying MFA to Entity Points

To apply MFA to Entity Points:

1. Log in to OnCAFE.

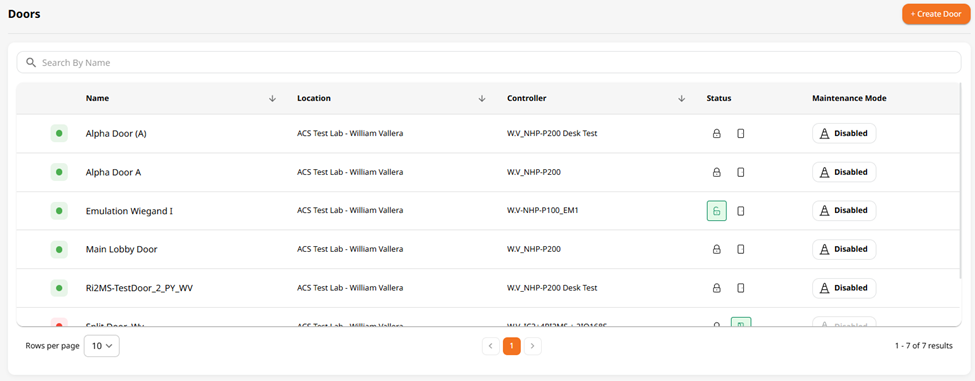

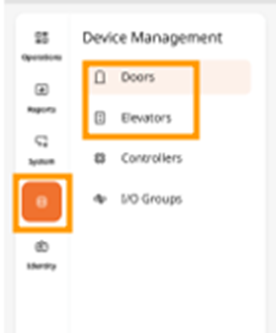

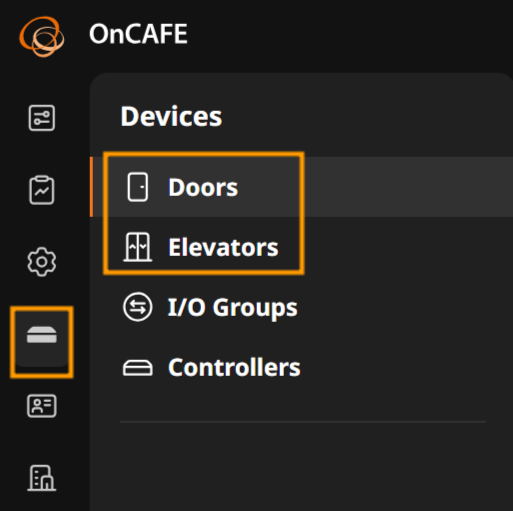

2. From the navigation bar on the left, click Management > Doors or Elevators.




3. From the list, locate and select the name of the target Entity Point (e.g., a specific door).

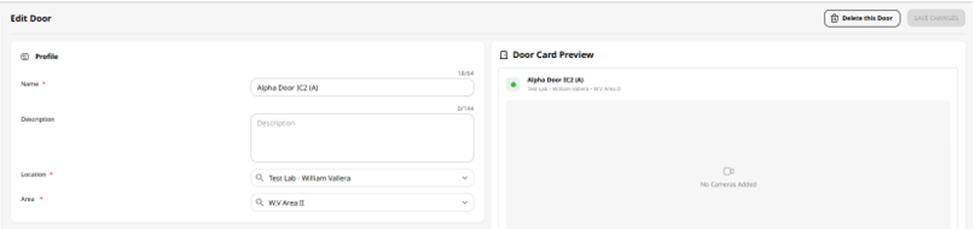

4. Confirm the Profile fields are correctly set.




5. From the navigation bar on the left, click Configuration.

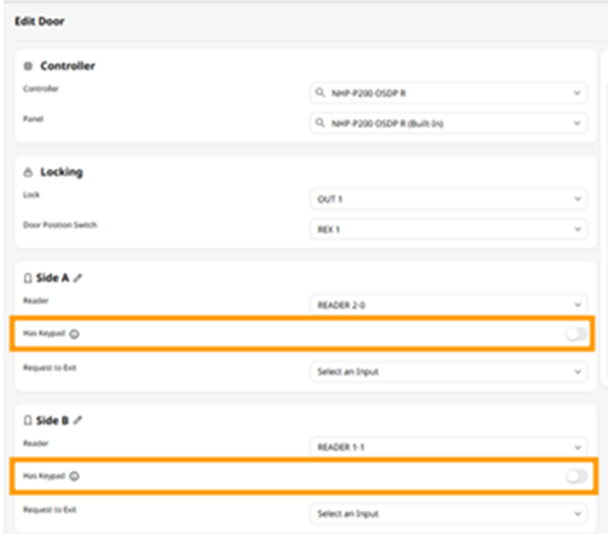

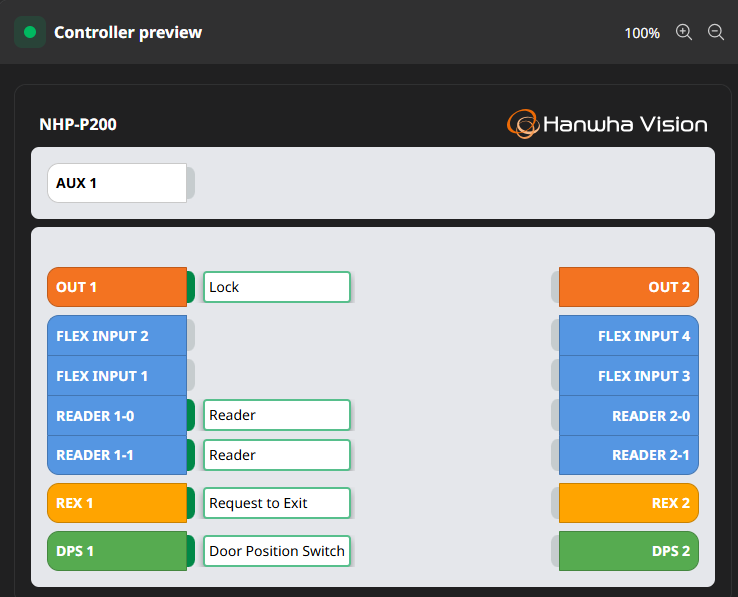

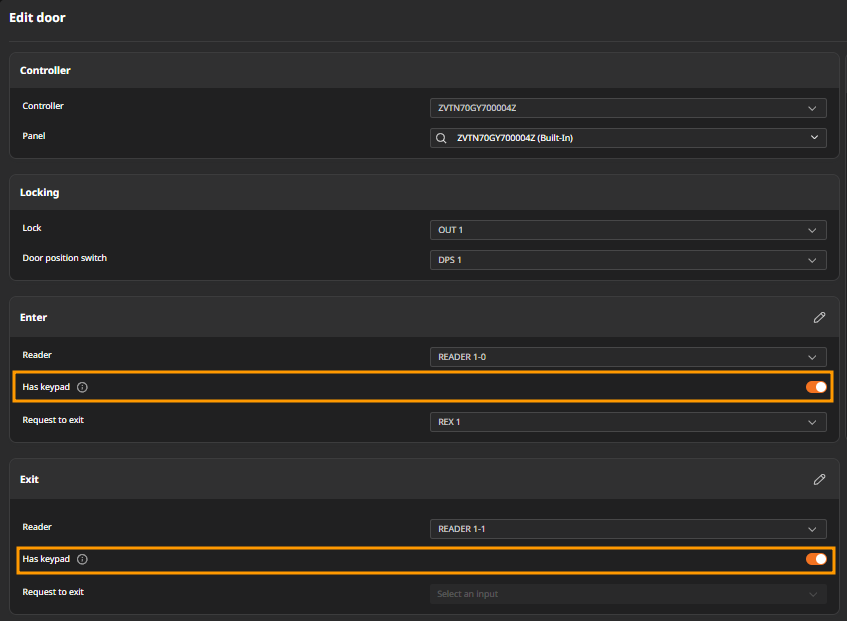

6. Verify that the correct Controller and Reader(s) are assigned to the entity then toggle the Has Keypad option to ON.

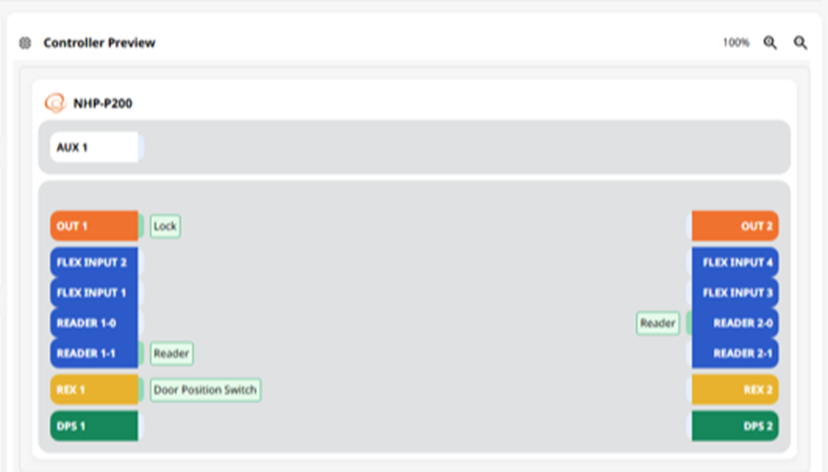

7. Ensure reader wiring and configuration are functional.


8. From the navigation bar on the left, click Schedule.

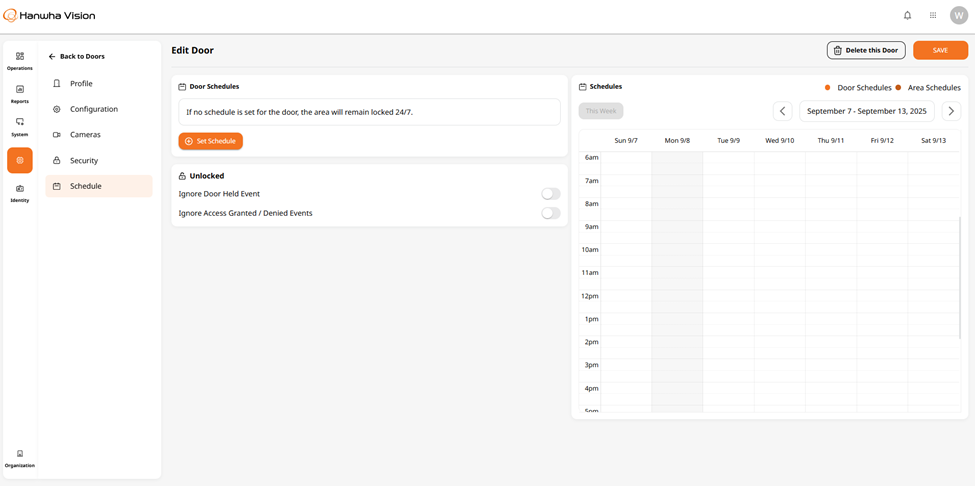

   NOTE: Defining a door schedule is a requirement. If no schedule
   is applied, the door remains locked 24/7 without MFA.

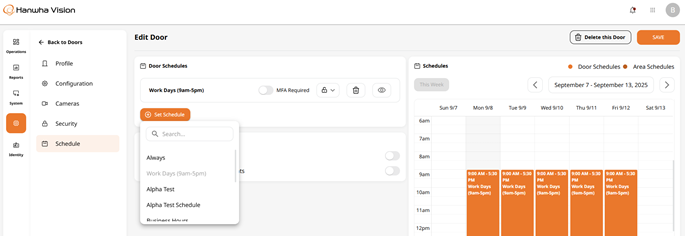

9. Select Desired Schedule.

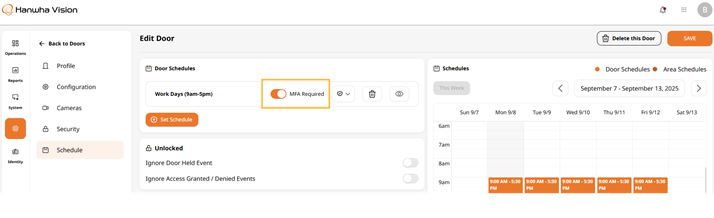

10. In the Door Schedules section, toggle MFA Required to ON.

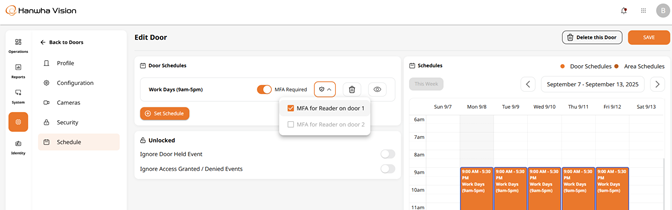

11. Select the side(s) of the reader where MFA is enforced:

    MFA for Reader on Side A
    MFA for Reader on Side B





    NOTE: MFA can be applied per reader side, giving flexibility
    for entry vs. exit scenarios.

12. Click Save.

    The Entity Point now requires MFA when accessed via the configured reader(s).
