Applies to: BLAZE

Summary

The Histogram feature on the BLAZE timeline visually displays the frequency of detected events, such as vehicles, people, moving objects, or generated events. This article explains how to use the Histogram feature in BLAZE.

Using the Histogram Feature

To use the Histogram feature:

1. Log in to BLAZE.

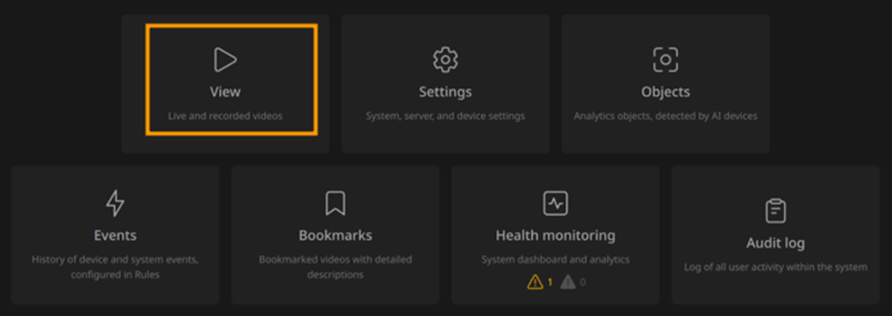

2. Select the View tile.

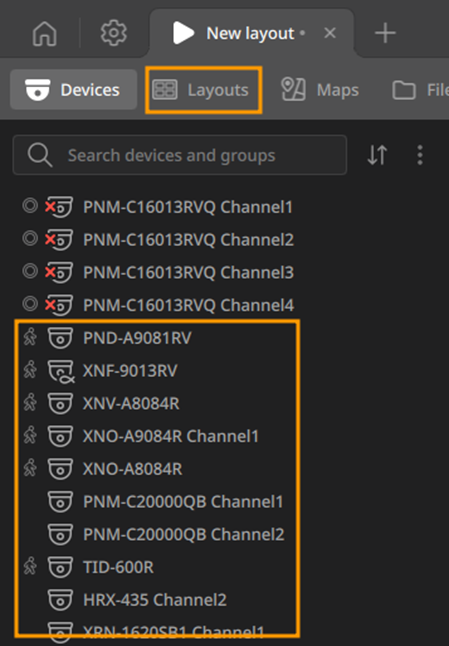

3. From the navigation bar on the left, select one or more cameras for viewing. You can also select Layouts.

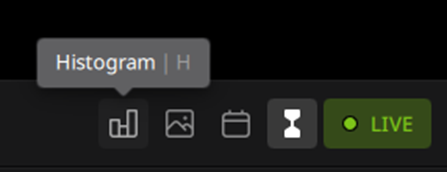

4. At the bottom of the screen, click the Histogram icon.

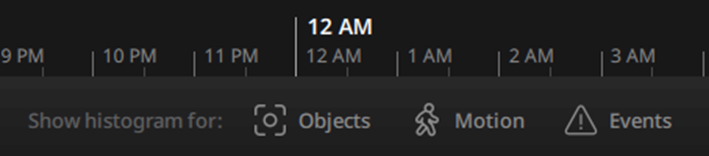

5. Select the type of data to visualize (Objects, Motion, or Events) using the icons next to the timeline or the tabs at the top of the screen.

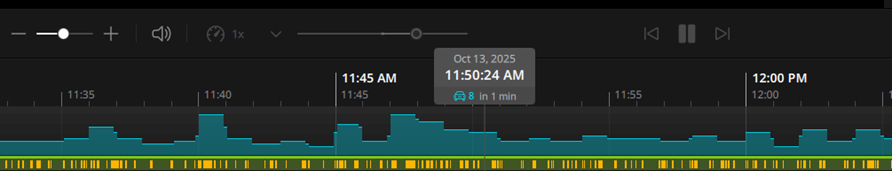

   The histogram shows the number of occurrences in a unit of time.

   For example, eight vehicle objects in one minute.





6. Click the Plus (+) or Minus (–) icons to zoom in and out and change the timescale.

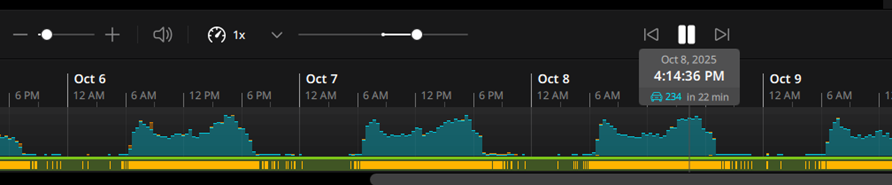

   In the example below, we see the daily general activity, and at a specific moment 234 vehicle objects in 22 minutes.

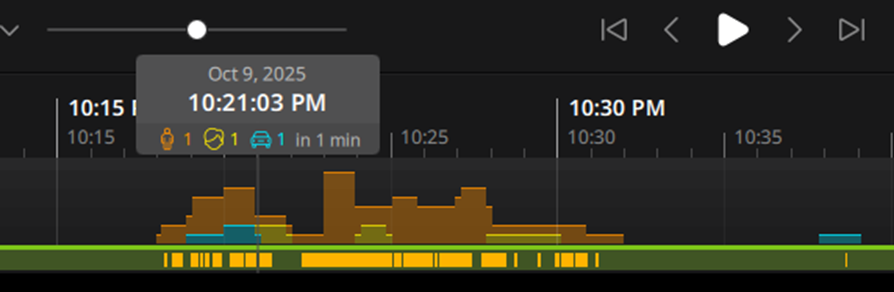

   Multiple object types present during an interval are listed and color coded differently.

   The example below counts people, faces, and vehicles.
