Applies to: BLAZE
Summary
This article helps distinguish between BLAZE recording appliances and BLAZE recording servers.
BLAZE Recorders
The two BLAZE Recorder categories are:
- BLAZE Appliances, which are purpose-built to only run BLAZE. They are simpler to install, license, and maintain because of the hardened OS. Semantic search is only available on a P-series appliance.
- BLAZE Servers, which are Windows or Linux-based PC servers. They are optimized to efficiently run BLAZE, which is pre-installed. They offer more flexibility with licensing and camera counts.
Appliances and Servers may be combined in a BLAZE system. Key differences are listed in the table below.
| BLAZE Appliances | BLAZE Servers | ||
| BRB | BRR | BRR | |
| Hardened OS | Yes | No | |
| Licensing | Fully preloaded with licenses based on channels | Not included. Purchased as needed based on license policy. | |
| Software Update Plan | Included until EOS | Optional | |
| Similarity search (with compatible cameras) | Yes | Yes | |
| Semantic search | No | Yes (P-series) | No |
| Channels | 16 / 32 | 32 / 64 | Up to 256, based on cameras, settings, and server hardware |
| Storage (maximum) | 64 TB | 256 TB | 240 TB |
| Storage RAID | 1 (SW) | 1, 5, 6 (SW) | 1, 5, 6, 10 (HW) |
| OS drive RAID | No | Yes | |
| Dual redundant PSUs | No | Yes | |
BLAZE Appliances

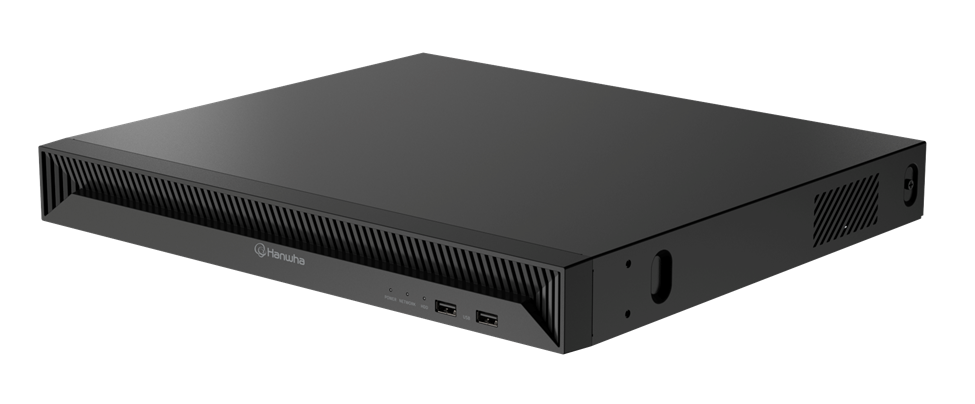

| Box-style
| BRB-X1610E BRB-X1610SE BRB-X32101E BRB-X3210S1E |

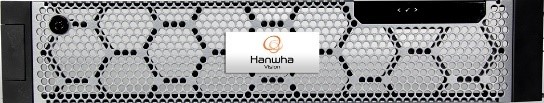

Rackmount style without Semantic Search
| BRR-X3210A2E BRR-X3210A4E BRR-X6410A2E BRR-X6410A4E | |
Rackmount style with Semantic Search
| BRR-P3210A2E BRR-P3210A4E BRR-P6410A2E BRR-P6410A4E | |
BLAZE Recording Servers
| Tower | BRT-X161W BRT-X321W1 BRT-X641W1 |
| Rackmount | BRR-P1H1SH1 BRR-P1H1WH1 BRR-P2H1SH3 BRR-P2H1WH3 BRR-P2H1SH7 |
