Applies To: NHP-P Series Controllers, OnCAFE Cloud Connector Integration

Summary

This article provides instructions to upgrade firmware on NHP P Series Controllers for integration with Hanwha Vision’s OnCAFE.

Updating the Firmware

1. Open a web browser and enter the controller’s IP address (e.g., 192.168.1.168).


2. Log in with administrator credentials.

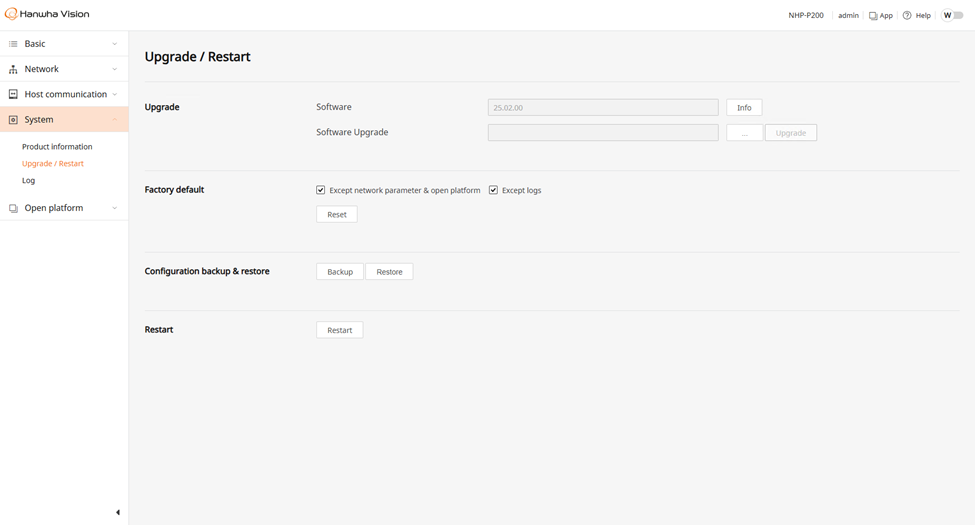

3. Select System > Upgrade/Restart.




4. Click the three-dot menu next to Software Upgrade.



   NOTE: The update file must be unzipped.

5. Select the appropriate IMG firmware file from your PC.




6. Click Open > Upgrade > OK.

   The software upgrades and reboots.



   NOTE: You may need to re-log in after reboot.
