Applies to: BLAZE

In an effort to maintain standards, Hanwha uses the web UI for all knowledge base
articles pertaining to product configuration. Open Chrome, enter the IP Address
of your device into the URL bar, and click Enter. If you are not using the web UI
to configure your device, please refer to the user manual for your product.

Summary

BLAZE supports compatibility with multiple camera interfaces; however, support must be explicitly enabled prior to use. This article describes how to enable Avigilon compatibility for use with BLAZE.

ONVIF Setting Configuration

To set up a camera:

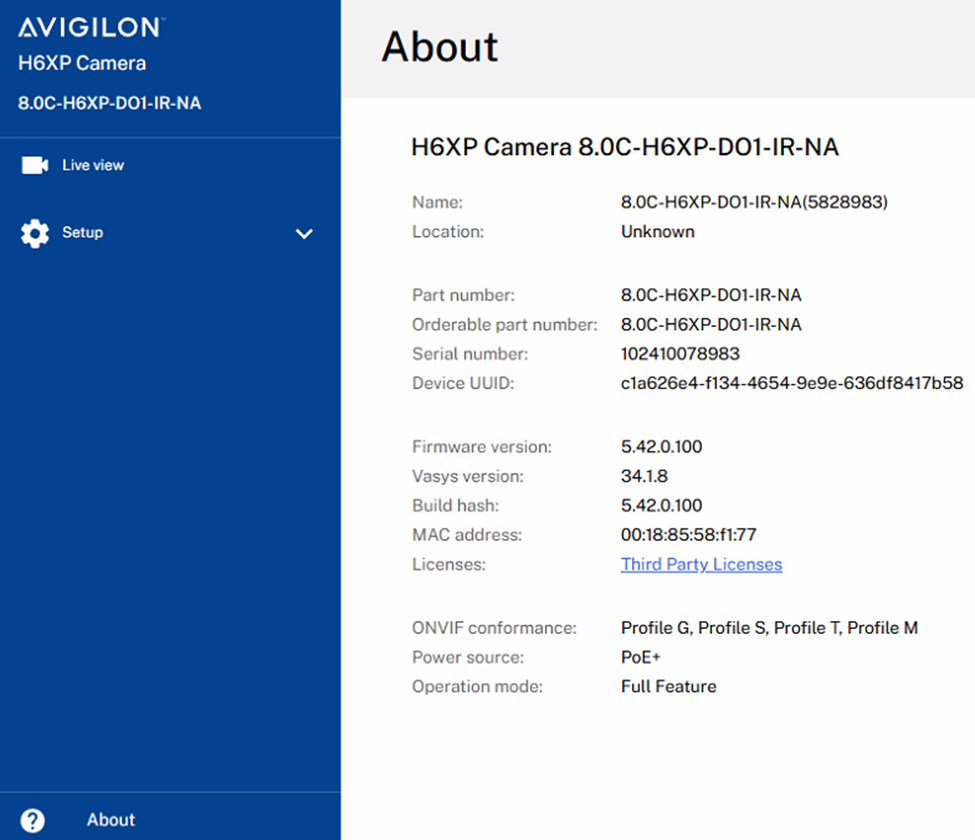

1. By default, Avigilon cameras are enabled for ONVIF Profile S compatibility. Confirm by clicking About.

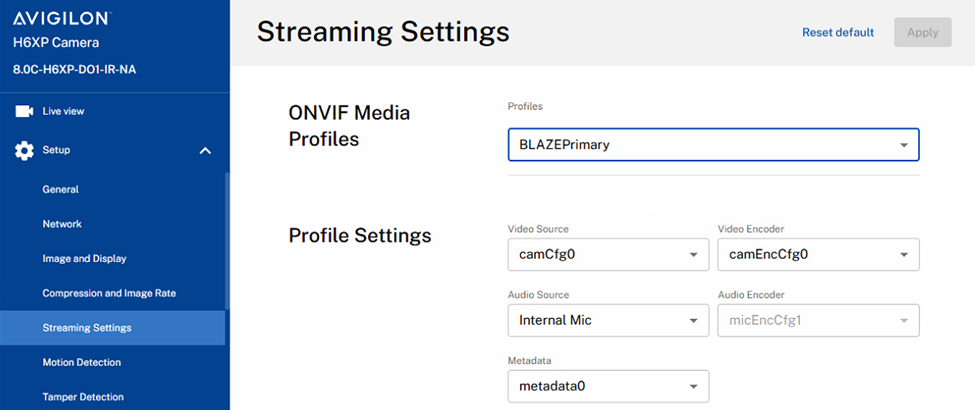

2. Confirm that BLAZE has created both profiles by navigating to Setup > Streaming Settings and inspecting the BLAZEPrimary and BLAZESecondary profiles. They should share the same Video Source, but different Video Encoders.

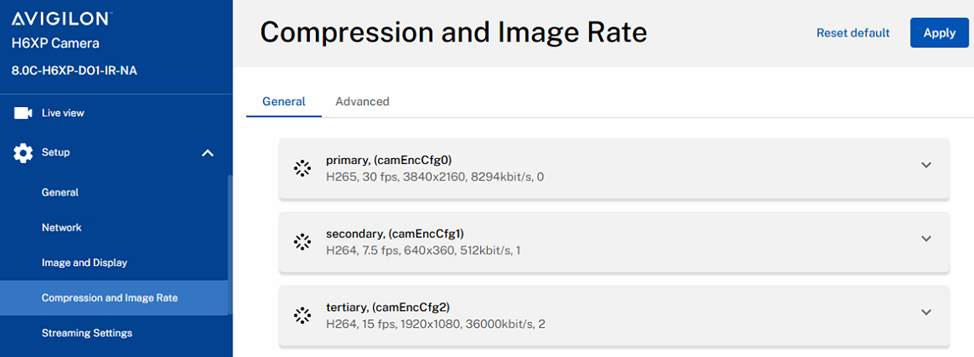

3. Confirm the Video Encoder settings are accurate by navigating to Setup > Compression and Image Rate.
