Applies to: DesignPro

Summary

DesignPro allows you to switch between viewing DORI/DRI on the map and AI Detection distance. This article describes how to use the toolbar to switch between DORI (Detection, Observation, Recognition, Identification)/DRI (Detection, Recognition, Identification) and AI Detection distance on the map.

Switching Interfaces

To switch between the two options:

1. Log in to DesignPro.

2. Open the Maps tab.



3. Select the down arrow for DORI/DRI or AI from the toolbar.

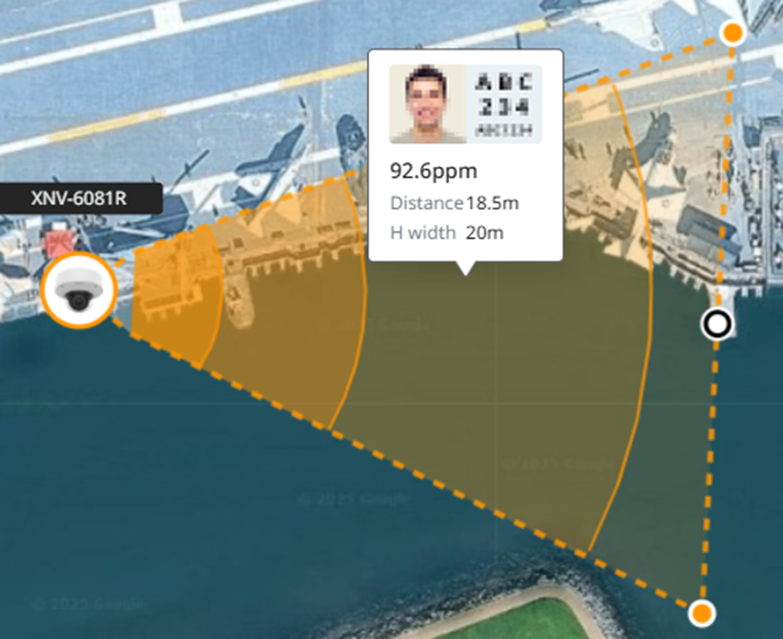

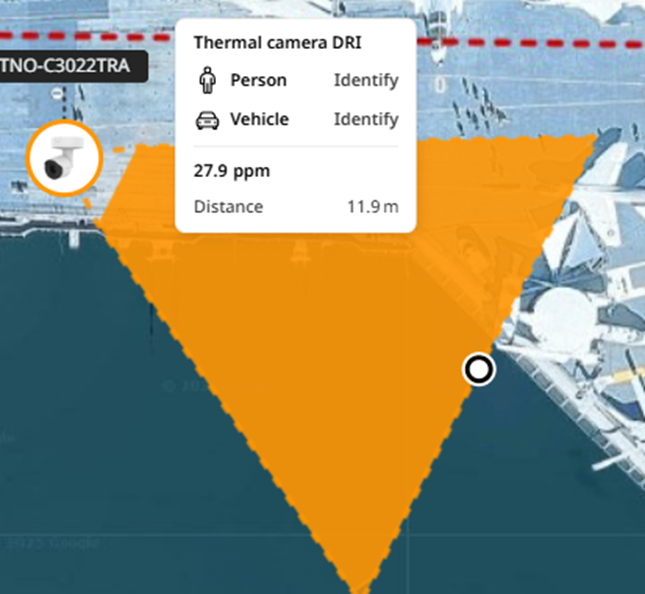

   Selecting DORI/DRI will show thermal DRI and DORI detection distances.

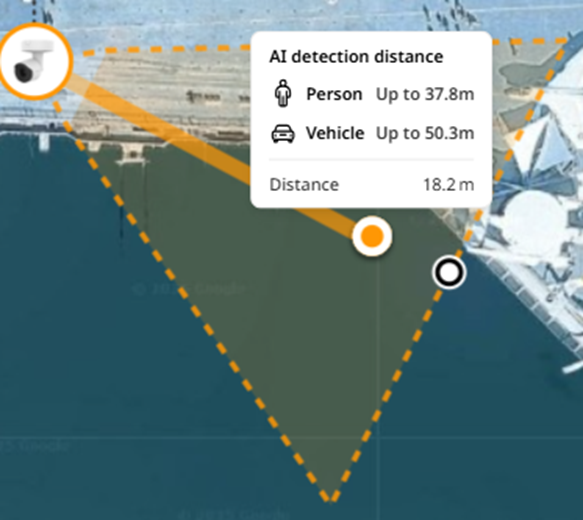

4. The second option is to select AI detection distance. This option will display the maximum detection distance of a Person or Vehicle.




Each of these can also be enabled or disabled using the Enable toggle:

1. Disable to not show DORI/DRI or AI when hovering over the field of view (FoV) of the camera.



2. Enable to show DORI/DRI or AI when hovering over the FoV of the camera.
