Applies to: BLAZE

In an effort to maintain standards, Hanwha uses the web UI for all knowledge base
articles pertaining to product configuration. Open Chrome, enter the IP Address
of your device into the URL bar, and click Enter. If you are not using the web UI
to configure your device, please refer to the user manual for your product.

Summary

For BLAZE to play a pre-recorded message on a Hanwha IP speaker, it must be configured in the IP audio device, and a BLAZE rule must be created. This article describes how to configure BLAZE using a SUNAPI-based HTTP request to play a pre-recorded audio file on a Hanwha IP speaker.

Configuring the IP Audio Device

To configure the IP audio device:

1. Log in to the IP device’s web page.

2. Navigate to Operation Setting > Source File Management.



3. Click the three-dot button to select an audio source file, then click Upload.


4. Test the SUNAPI command by opening a web browser and entering the following:

   http://<IP speaker address>/stw-cgi/eventrules.cgi?msubmenu=audiooutfiles&action=control&Type=Play&Name=<filename>

   For example: http://192.168.254.81/stw-cgi/eventrules.cgi?msubmenu=audiooutfiles&action=control&Type=Play&Name=step.mp3

Configuring a BLAZE Rule Action

To configure a BLAZE rule action:

1. Log in to BLAZE.

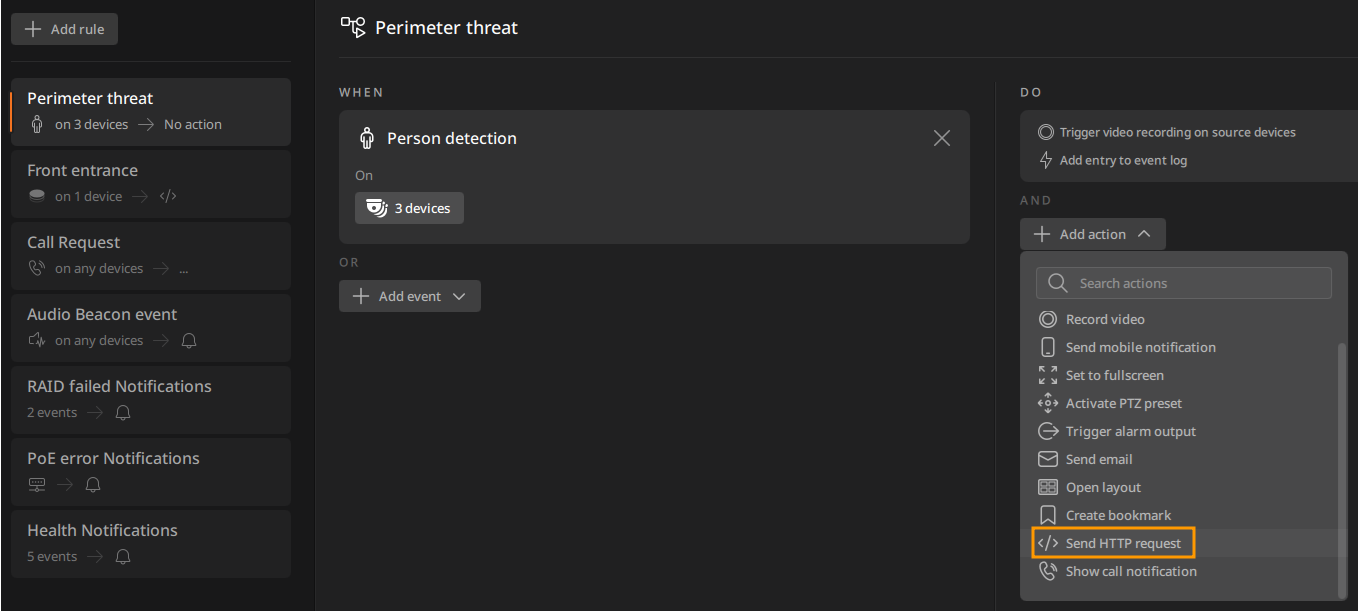

2. Navigate to Settings > Rules.

3. Select and rule or create a new one by clicking + Rule.

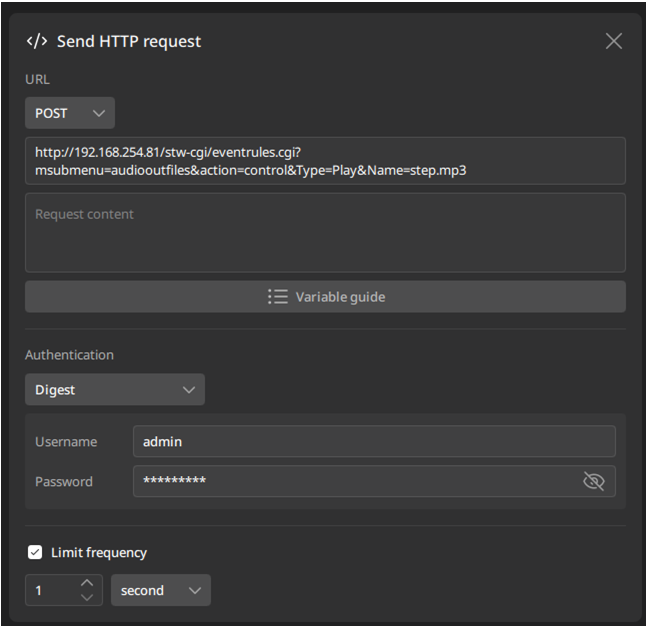

4. Click Add action and select Send HTTP request.



5. Enter the request in the POST field.



6. Add the Username and Password for the device.

   You can now trigger the rule.
