Applies to: All DesignPro

Summary

The comparison feature allows users to review device specifications side-by-side at a glance. This article describes how to compare the specifications of multiple devices.

Comparing the Specifications

To compare the specifications of devices:

1. Log in to DesignPro.


2. Select Devices > Device List.

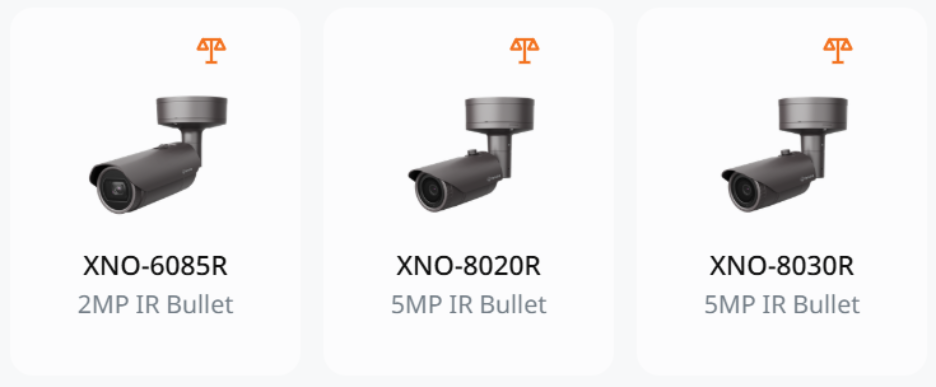

3. From the list of Devices, select the scale icon ( ) on two or more of the devices to compare.

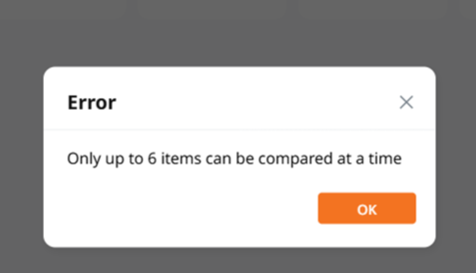

   NOTE: A minimum 2 and up to 6 devices can be compared at a time. If than 6 are
   selected, a message appears.

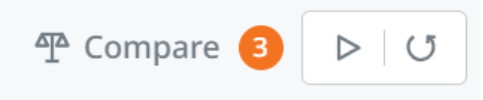

4. Click Play to compare.

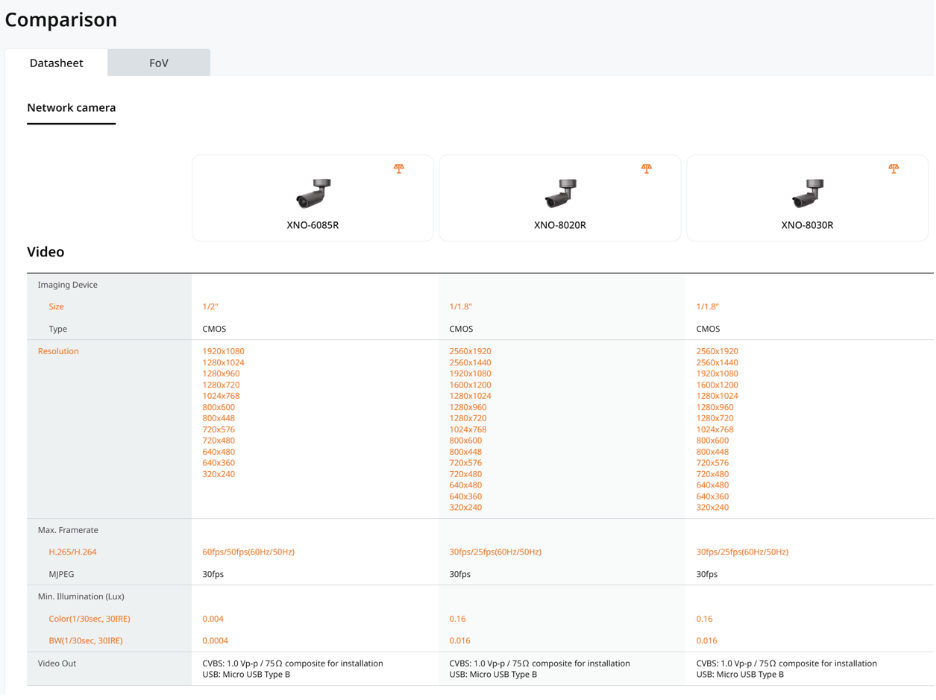

   The system uses color coding to highlight differences: specifications that vary between devices are displayed in orange, while identical specifications across all devices are shown in black.


5. For focused analysis, enable the Differences only option located in the upper right corner, which filters the view to display only the specifications that differ between the selected devices.

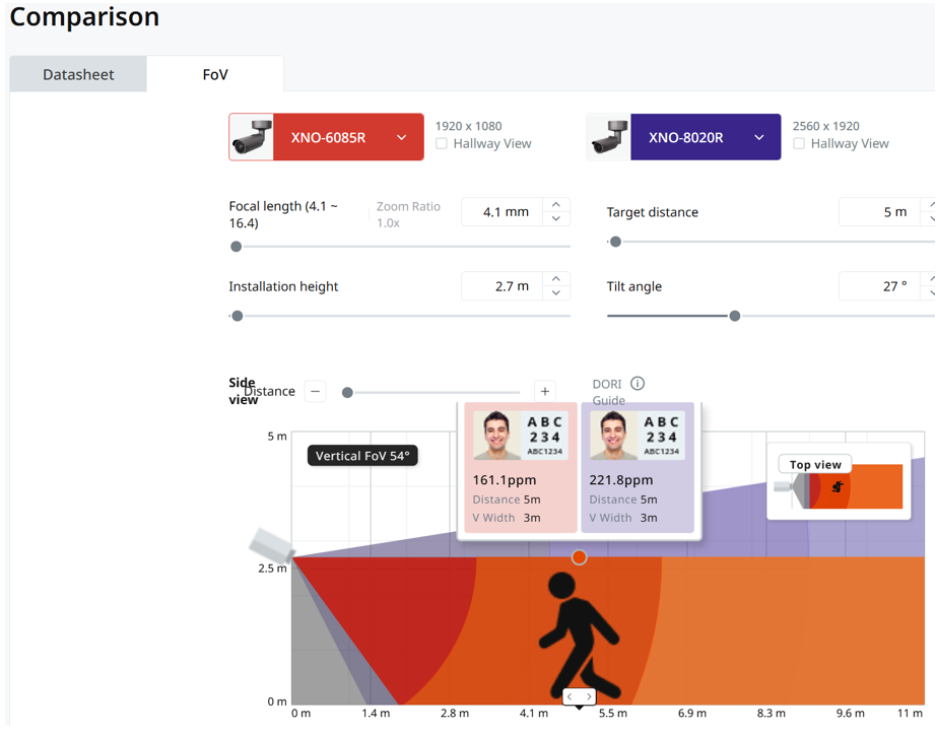

   Field of vision (FoV) Comparison
