Applies to: All DesignPro

Summary

When configuring a project, verify that enough devices and recorders are allocated to meet its requirements. This article explains how to ensure your equipment assignment is sufficient and satisfies all project needs.

Determining Requirements

To confirm the requirements:

1. Log in to DesignPro.


2. Check the requirement information in the Dashboard, Devices, or Recorder menus.


3. Compare the project requirements with the allocated amounts for Channel, Bandwidth, Storage, Power, Port, and WAVE license to determine which items require additional device or recorder allocation.

   This comparison helps identify resource gaps and guides decision-making for optimal resource allocation to meet project specifications.

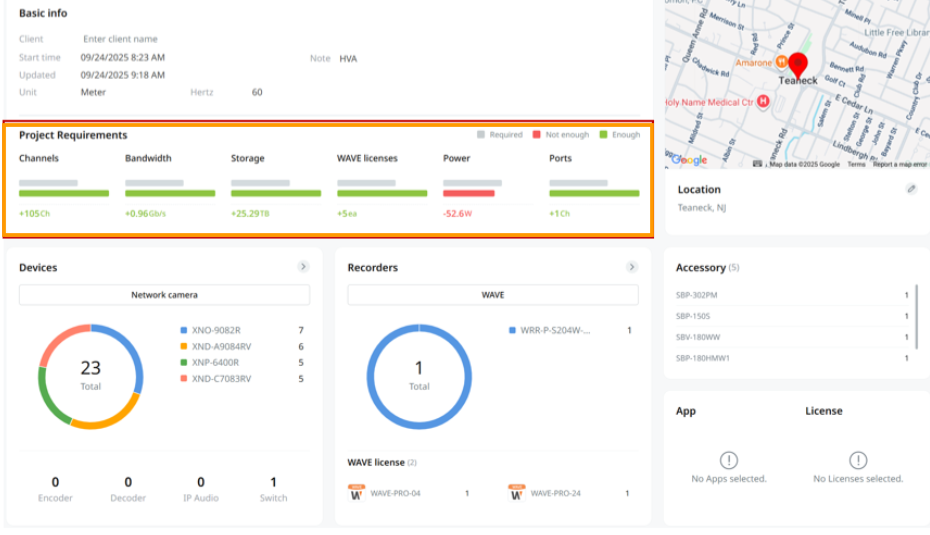

   Dashboard

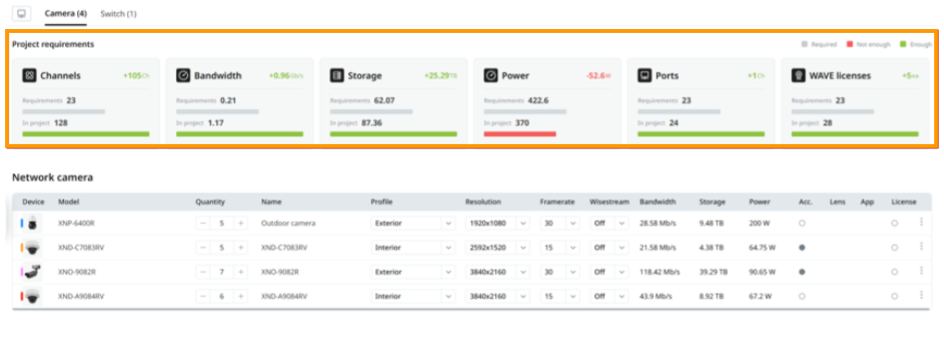

   Devices

   Expand the list of devices.

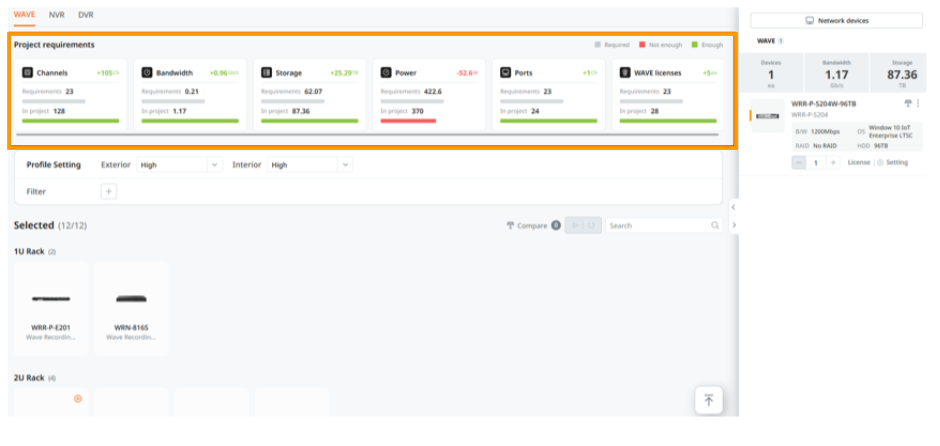

   Recorder

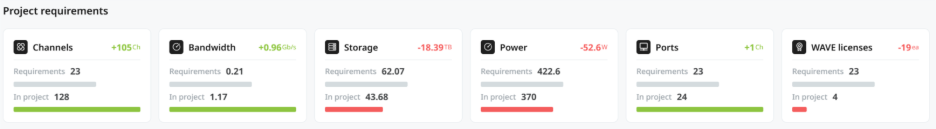

   After configuring the project, when Project requirements appear as shown below, confirm that the Storage, Power, and WAVE licenses are sufficient.

   The color-coded system provides immediate visual feedback on resource allocation status, allowing to quickly identify which resources need additional allocation to meet project requirements.
