Applies to: DesignPro

Summary

This article describes how to create a map and details each feature of the Toolbar.

Creating a Map

DesignPro maps are available in two ways: Floor plan and Google map.

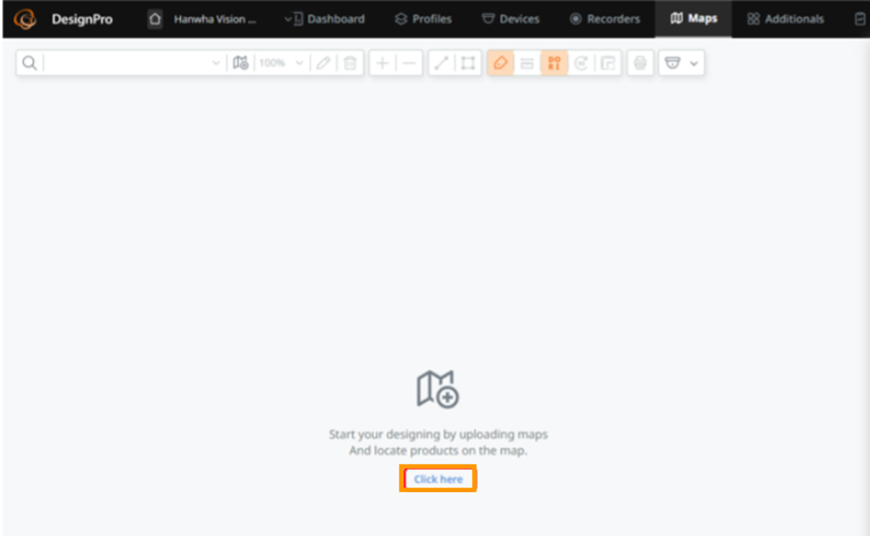

When moving from the top bar to Map, there is a map input UI on the initial screen, as shown below.

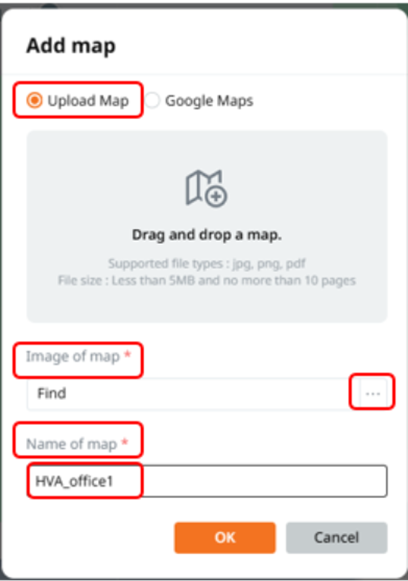

Adding a Floor Plan

To add a floor plan:

1. Select Upload Map on the left.

2. Click the three-dot menu to the right under the Image of map to add a floor plan file.

3. Enter the name of the map.

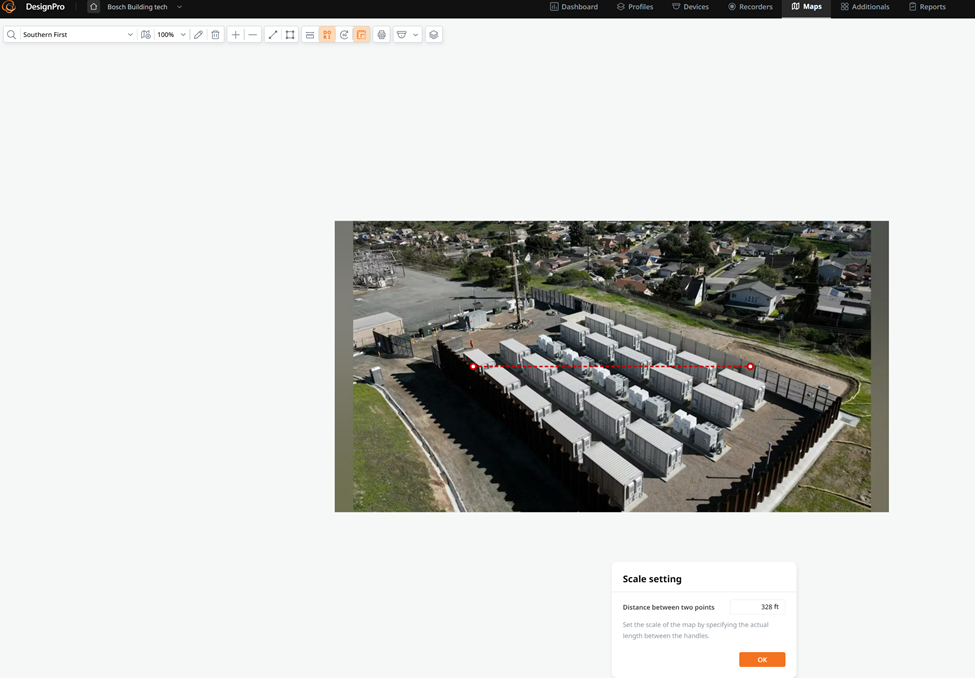

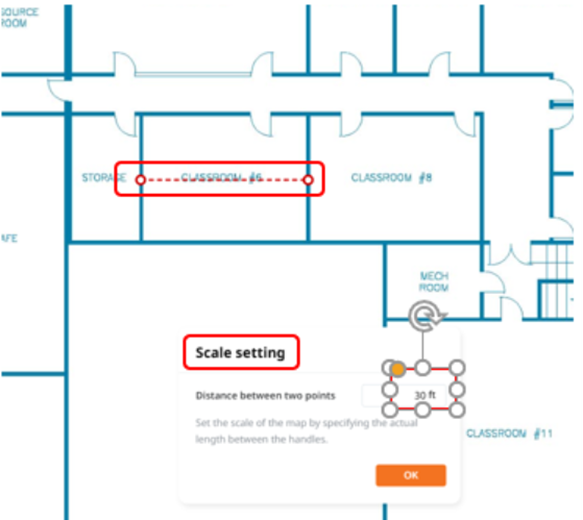

4. To set the scale, adjust the position by moving the two points with the mouse and enter the distance.

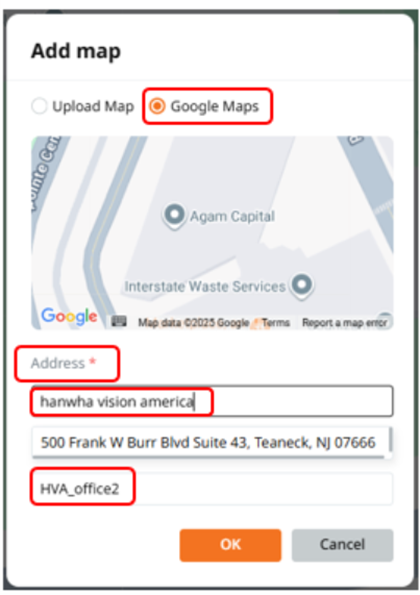

Adding a Google Map

To add a Google map:

1. Select Google Maps on the right.

2. Enter the address and select it when it appears in the list below.

3. Enter the name of the map input.




4. Select Terrain or Satellite mode.

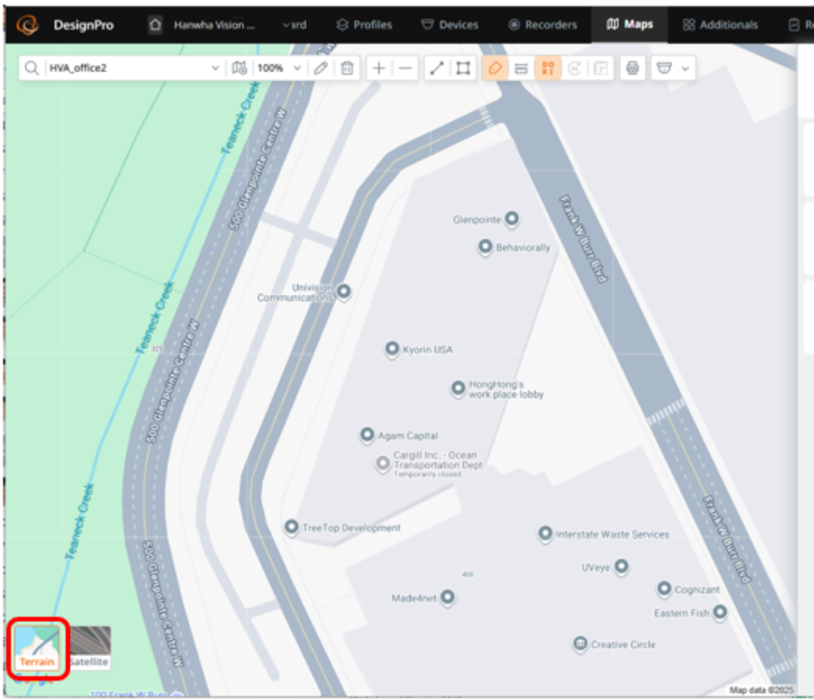

   Terrain mode

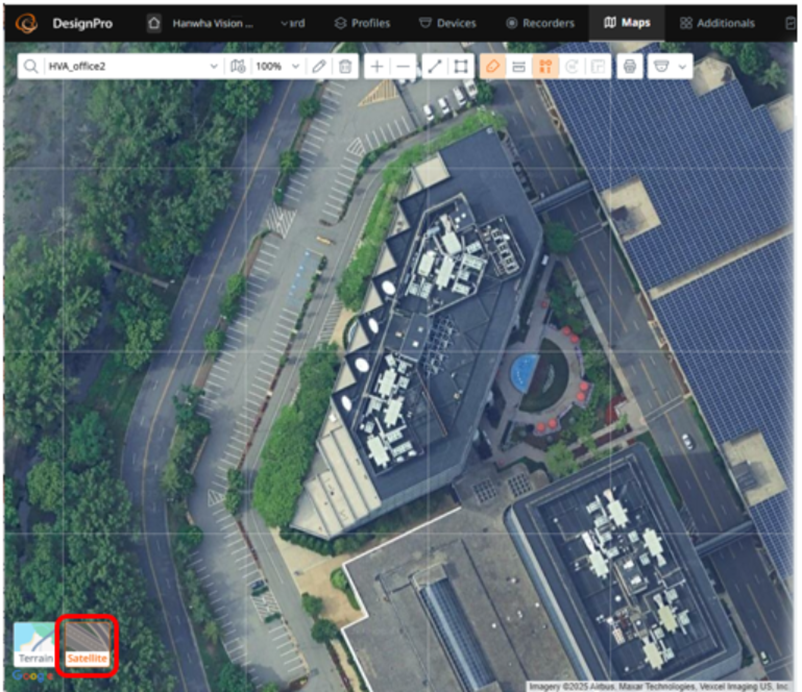

   Satellite mode

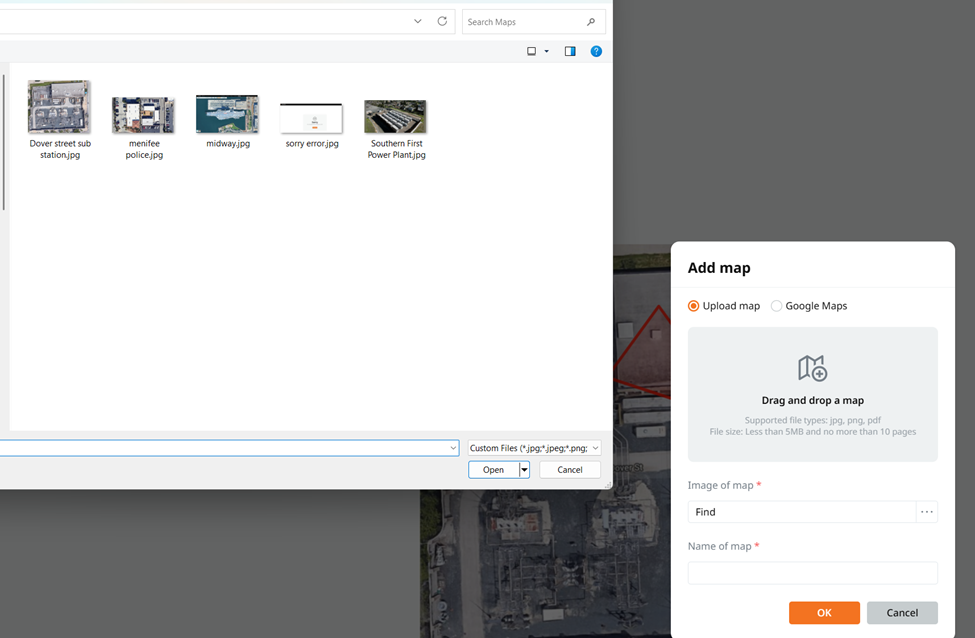

Adding a Secondary Map

To add an additional map:

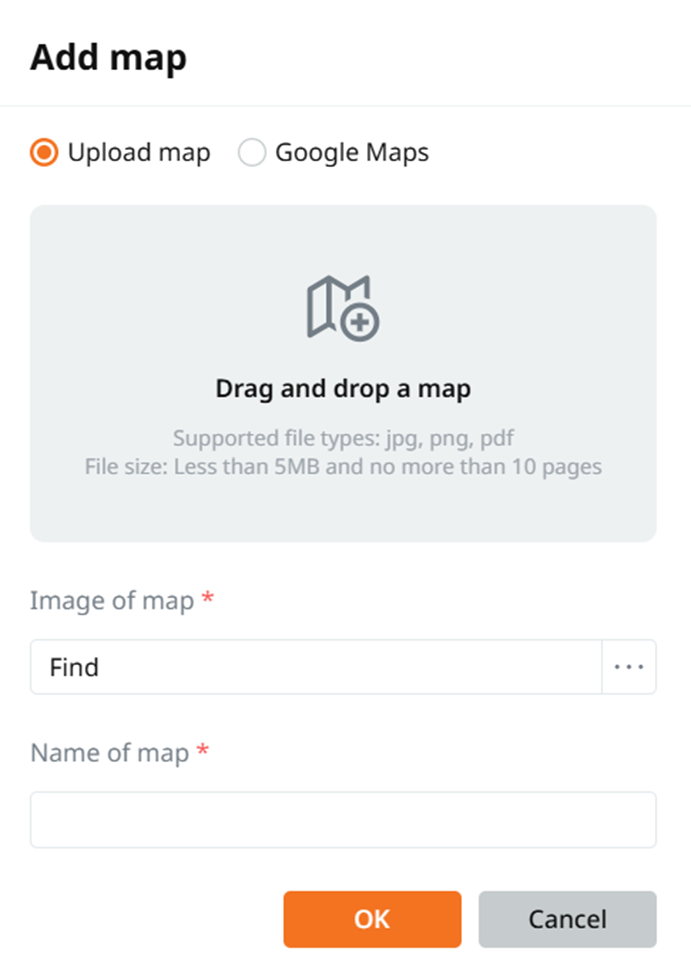

1. Click on the icon on the toolbar. The Add Map window opens.

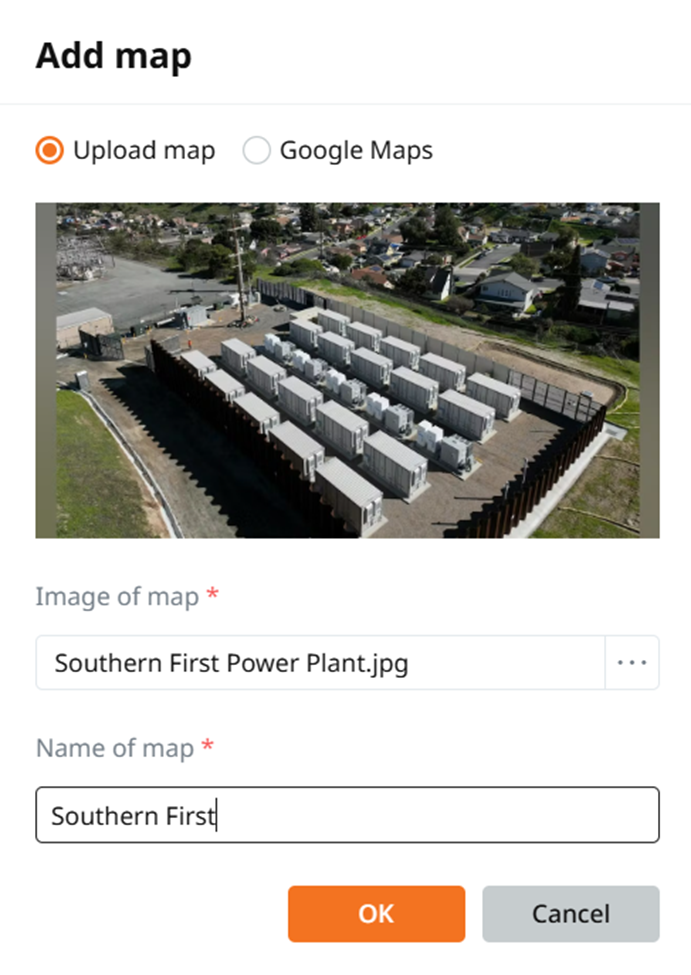

2. Upload a map or select the radio option for Google Maps. User can also drag and drop a map file.




3. Select the new map file.



   The new map will be added.

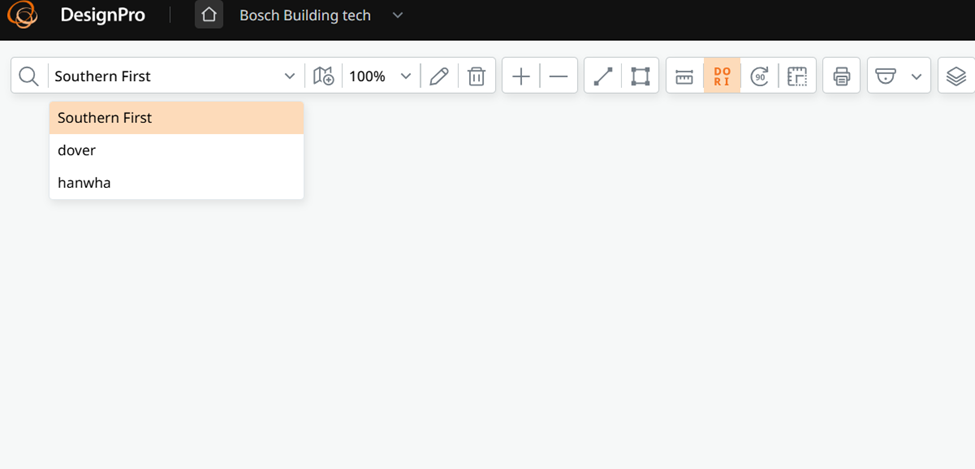

4. To switch between maps, click the down arrow next to the map name.
