Applies to: All DesignPro

Summary

This article describes each feature of the DesignPro Map toolbar.

Map Toolbar

The features of the Map toolbar are accessed by clicking at the top of the Map.

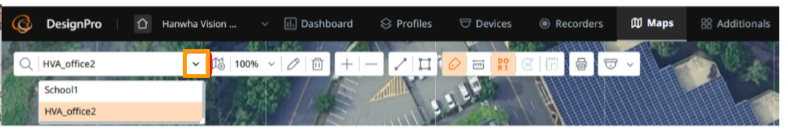

1. Click the drop-down UI to see the maps and select one of them.



2. To add a new map, select the icon.

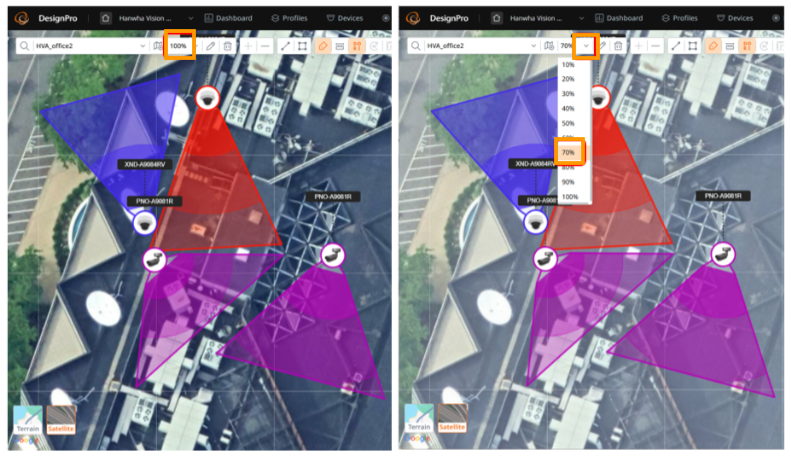

3. Improve the visibility of the FoV beam by adjusting the opacity of the map.



4. Edit the map by changing a Google map address, replacing the floor plan, or changing the map name.



5. Use the icon to delete the map being viewed.

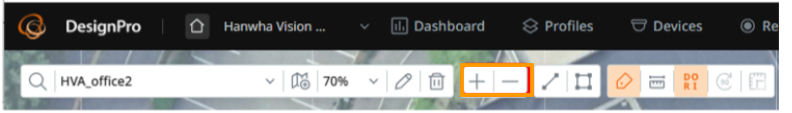

6. Use the + and - icons to zoom in and out.



7. Show the camera description (defaults to model number). The description on the map is editable.

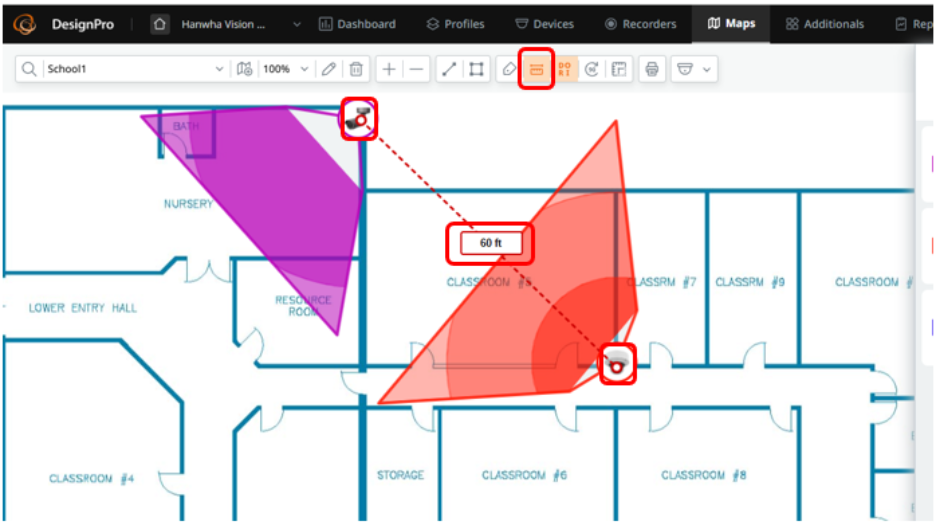

8. Use the map to measure the distance between two points.




9. Rotate the map using the icon.



   NOTE: When you click the Rotate icon, the application rotates the
   floor plan clockwise by 90 degrees and clears your device from the map.

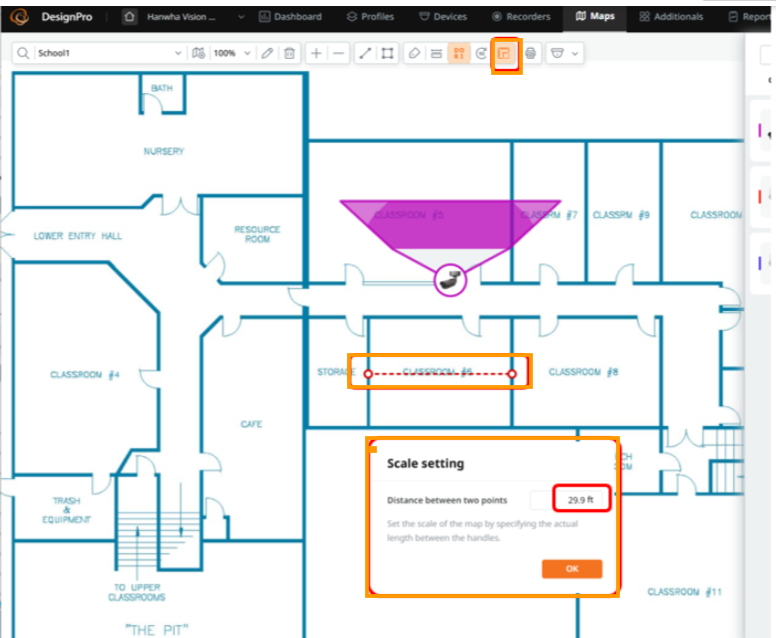

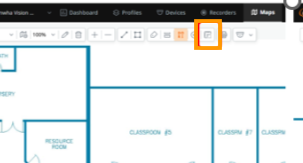

10. Select the icon to modify the scale of a floor plan.

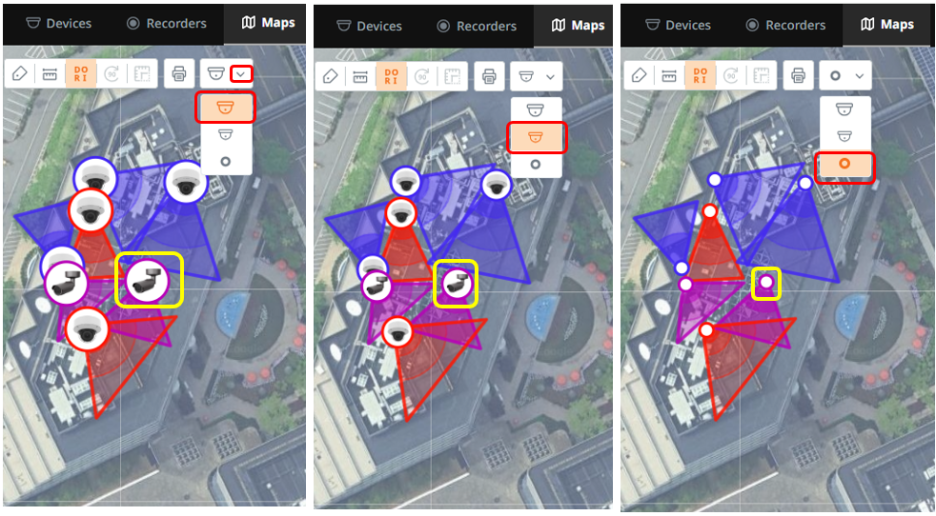

11. Change the size of the icon to improve the visibility of the camera icon according to the map scale.
