Applies to: OnCloud-supported cameras without a SET button

Summary

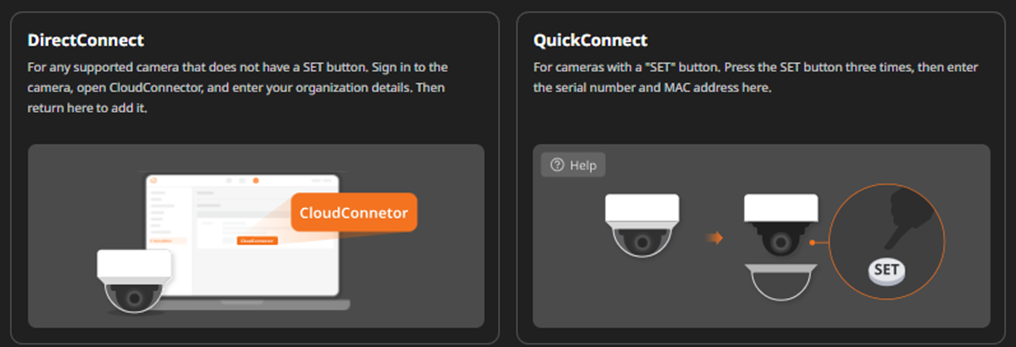

DirectConnect is used for any supported camera that does not have a SET button. This article provides instructions for adding a supported camera to OnCloud using DirectConnect.

Adding a Device

To add a device with DirectConnect:

1. Sign in to the camera and open CloudConnector.

2. Enter your organization details.

3. Log in to the camera’s webpage. Input a new password if required.

4.  Click the Settings icon.

5.  Select Open Platform > Open Platform App > Go to App.

6. Select Cloud Connector(App connector) and enter the Organization ID and Short Name.

7.  Click Connect.


8. Verify that the camera has successfully connected to OnCloud.

   NOTE: If the camera does not connect, you may need to consult with the IT team
   to determine whether a firewall is blocking the required cloud service ports.
   Also see Cloud Solution: What are the network requirements for Hanwha Vision
   Cloud?

9. Log in to your OnCloud account through the web browser.

10. From the OnCloud interface, click Dashboard ().


11. Under the Devices section, click Manage > DirectConnect.

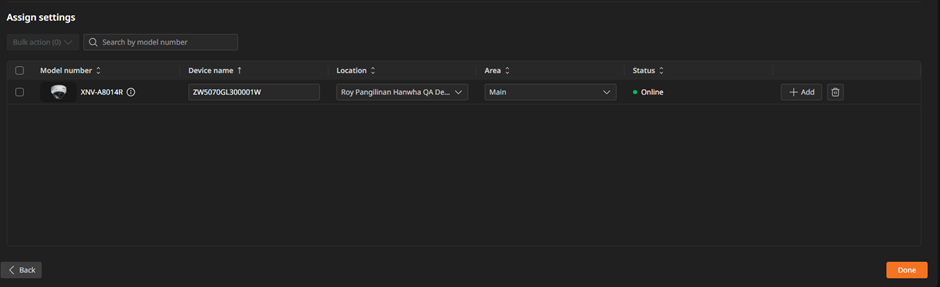

    All connected cameras are listed.

    From this screen, you can update the Device Name, Location, and Area. Select Add or reclaim for each camera you want to configure.




12. Click Done when all cameras have been added.
