Applies to Models: XNV-6120R/LPR & XNO-6120R/LPR

Summary

This article describes how to re-install the LPR application.

Prerequisites

Please use the camera and software version compatibility listed below:

• Camera firmware v2.10.01 or greater -> LPR Application v3.20.45
• Camera firmware v1.41.02 or earlier -> Arteco app 3.20.25

Before re-installation:

• Set the correct time and date.
• Update your Hanwha Techwin Wisenet camera to the latest available firmware.

LPR Software Re-installation

To re-install the LPR application:

1. Log in to the camera.

2. Download the LPR application.


3. Locate the LPR license key on the quick reference guide.


   NOTE: If you cannot find the key, contact Hanwha Technical Support.

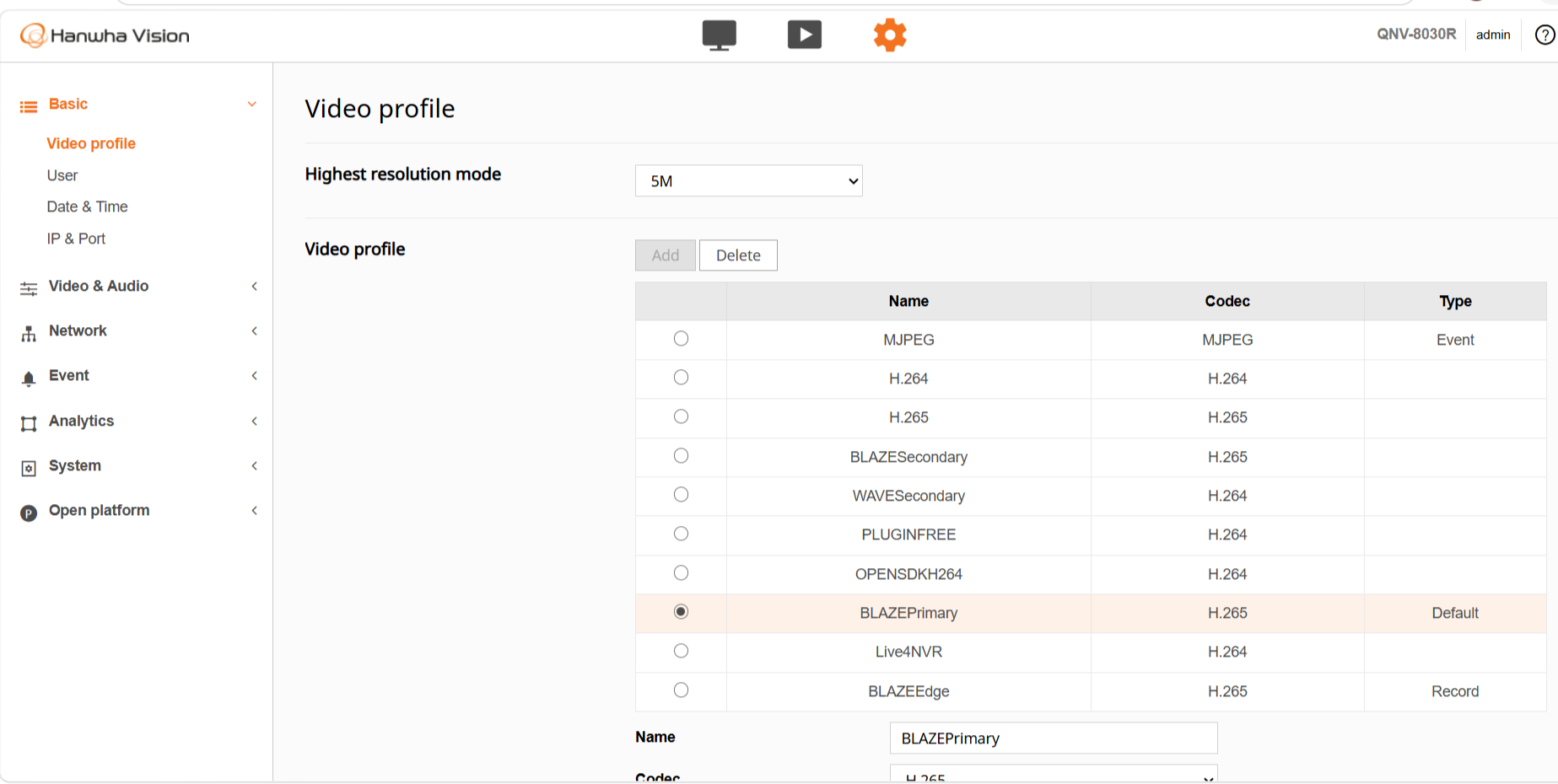

4. Select Setup > Open platform.



5. Click the three-dot menu to browse for the xxxLPR.cap file.

6. Click Install.

7. After the application is installed, click Start.

8. Select the checkbox by Auto Start.

9. Click Apply > Go App.

Activating the Key

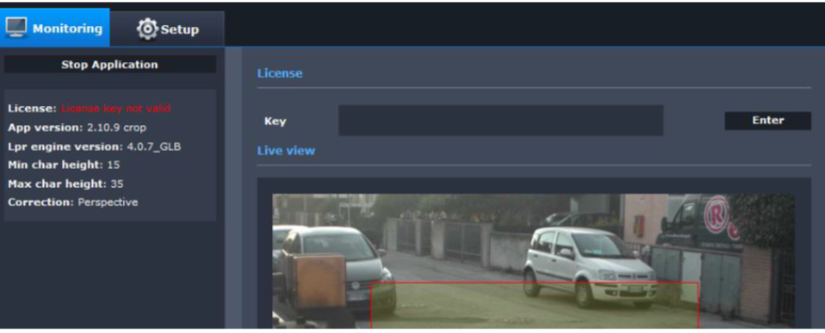

After installing the LPR application, the license key must be activated.

To activate the license key:

1. Enter the license key.



2. Click Enter.

Restoring Camera Configuration

After the LPR application is licensed, follow these steps to restore a pre-defined camera configuration. This overrides the current camera configuration, including username and password.

To restore the camera configuration:

1. Select Setup > System > Upgrade/Restart.

2. Click Restore.

3. Brown for the xxx.bin file for your camera model.

4. Reconnect to the camera.

5. Use the following credentials to log in to the camera.

   Username: admin
   Password: Techwin1#
