Applies to: XNO-6120R/LPR and XNV-6120R/LPR

Summary

XNO-6120R/LPR and XNV-6120R/LPR have the ARTECO LPR Open platform application. If a user defaults the camera to the factory default settings, the open platform application and its activation licenses are removed.

This article describes how to retrieve the license key from the system while it is operational with the LPR application installed and activated. Use this procedure to record your license key if you need to reinstall the application, as well as to archive a copy of your license.

NOTE: This process applies only to units that are activated with the ARTECO LPR
license. If you have lost the application or have defaulted the camera to factory
default before license key retrieval, please refer to the re-installation process
identified in How do I reinstall the LPR - Application?

Retrieving the License

To retrieve the ARTECO LPR license information from the camera:

1. Connect to the web interface of the camera.

   NOTE: Chrome or Firebox web browsers must be used for proper operation.

2. Use the Wisenet Device Manager to search your network if you are unsure of the camera’s IP address.

3. Log into the camera using administrative credentials when prompted by the web browser.


4. Enter the following case-sensitive command into the browser address bar:

   view-source:http://192.168.1.100/stw-cgi/opensdk.cgi?msubmenu=manifest&action=view&AppID=ARTECO_LPR_<Your Current Arteco Build>&Channel=0


   NOTE: Change the IP address as per your camera’s configuration.

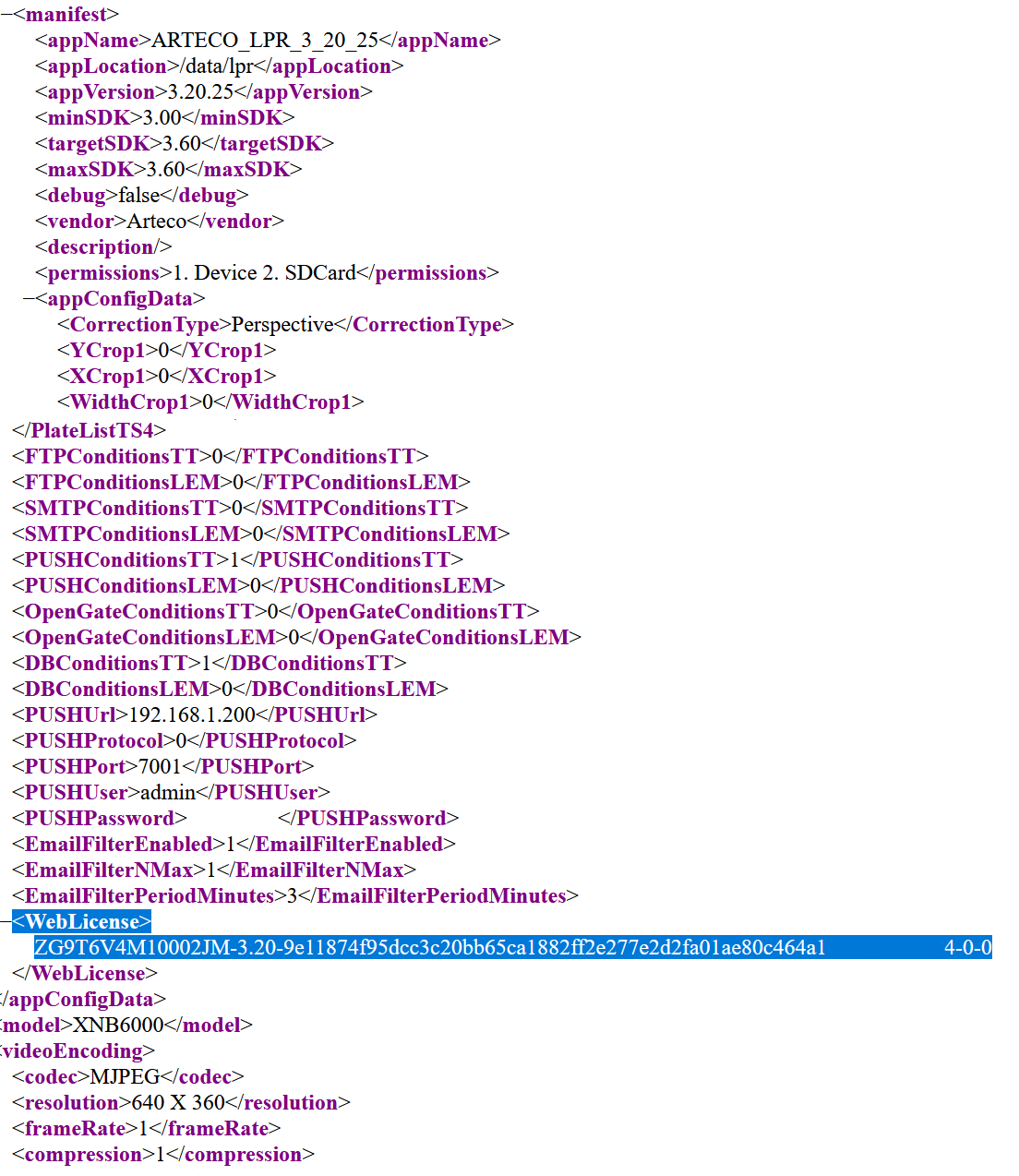

5. Once the command has been executed, the web browser returns the manifest file contents, as shown below.



6. Copy the license key (contained in the </WebLicense> section) and store it for future access.

7. The license key is also printed in the quick reference guide that is included with the camera.
