Applies to: OnCAFE, Microsoft Entra ID, SCIM Provisioning

Summary

The FacilityCode mapping is used to send a card Facility Code data from Microsoft Entra ID to OnCAFE during SCIM provisioning.

This mapping can be used when an existing Microsoft Entra user attribute, such as postalCode, is being used as the source value for the Facility Code number into OnCAFE.

This article explains how to configure the FacilityCode attribute mapping in Microsoft Entra.

Prerequisites

Before configuring the FacilityCode mapping, confirm:

• Provisioning credentials have been configured successfully.

• The OnCAFE credential attributes have been added to the customappsso attribute list.

• FacilityCode is available as a target attribute in Microsoft Entra.

• The customer has confirmed which Microsoft Entra attribute will be used as the Facility Code source.

Configuring FacilityCode Mapping

To configure the Facility Code mapping:

1. Log in to Microsoft Entra as an Admin user or a role with the required privileges.

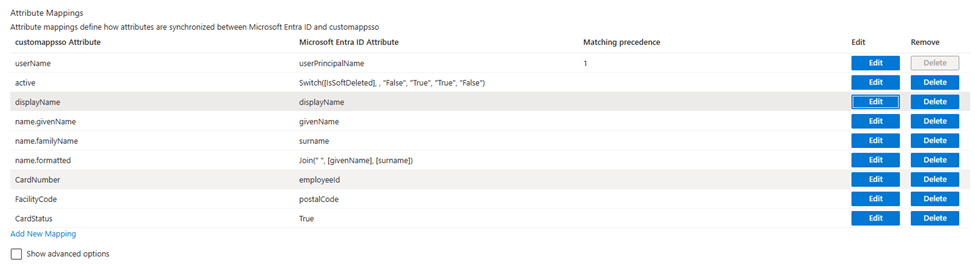

2. From the Attribute Mapping page, select Add New Mapping, or edit an existing mapping.



3. Set Mapping type to Direct.

4. In the Source attribute field, select the Microsoft Entra attribute that will be used as the Facility Code source.

   Example: postalCode

5. In the Target attribute field, select FacilityCode.

6. Set Match objects using this attribute to No.

7. Set Apply this mapping to Always.
