Applies to: OnCAFE, Microsoft Entra ID

Summary

The CardStatus mapping is used to send a credential status value from Microsoft Entra ID to OnCAFE during SCIM provisioning.

In most configurations, CardStatus can be mapped as a constant value of True. This allows provisioned credentials to be treated as active when they are imported into OnCAFE.

This article explains how to configure the CardStatus attribute mapping in Microsoft Entra.

Prerequisites

Before configuring the CardStatus mapping, confirm:

• The Microsoft Entra Enterprise Application has been created.

• Provisioning credentials have been configured successfully.

• The OnCAFE credential attributes have been added to the customappsso attribute list.

• CardStatus is available as a target attribute in Microsoft Entra.

• The customer has confirmed whether provisioned credentials should be imported as active.

Configuring CardStatus Mapping

To configure the card status mapping:

1. Open the Microsoft Entra Enterprise Application created for OnCAFE.

2. From the Enterprise Application menu, select Provisioning > Attribute mapping > Provision Microsoft Entra ID Users.

3. From the Attribute Mapping page, select Add New Mapping, or edit an existing mapping.

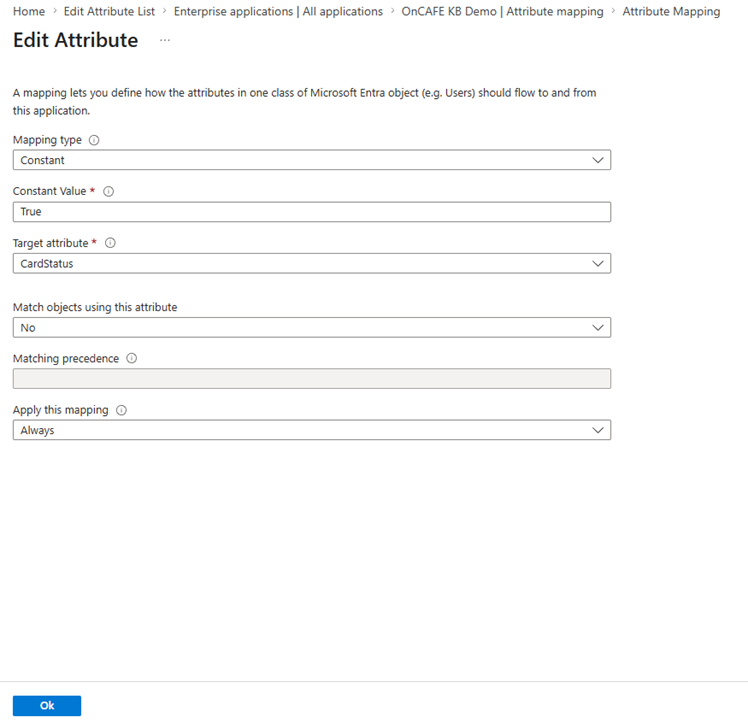

4. Set Mapping type to Constant.

5. In the Constant Value field, enter: True.

6. In the Target attribute field, select CardStatus.

7. Set Match objects using this attribute to No.

8. Set Apply this mapping to Always.

9. Click OK.

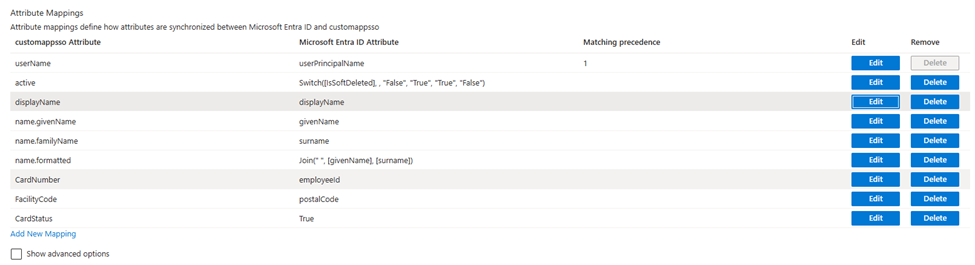

10. Select Save on the main Attribute Mapping page.


11. When prompted, click Yes to confirm the change.

    The CardStatus target attribute is mapped to a constant value of True. During provisioning, OnCAFE can treat the imported credential as active.

    Example Mapping:

    Mapping Field	Value
    Mapping type	Constant
    Constant Value	True
    Target attribute	CardStatus
    Match objects using this attribute	No
    Apply this mapping	Always
