Applies to: Wisenet WAVE Version 5.1.2.37996

Summary

This article explains how to configure WAVE to change the layout to show intercom video when the intercom button is pressed while handling the audio with a SIP phone.

NOTE: For the call button function to be available, please use the in-client
upgrade code below to bring your system to the listed version. If you are already
on this or a higher version, proceed as normal through the instructions.

In-Client Upgrade:
Build Number: 37996
Password: xiq53b

Integrating TID-600R

To integrate TID-600R:

1. Log in to WAVE.

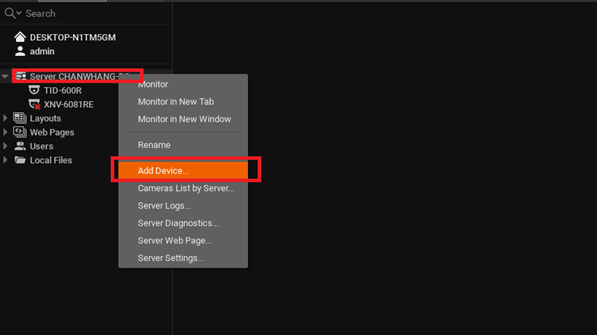

2. Right-click on the name of the server, then select Add Device.

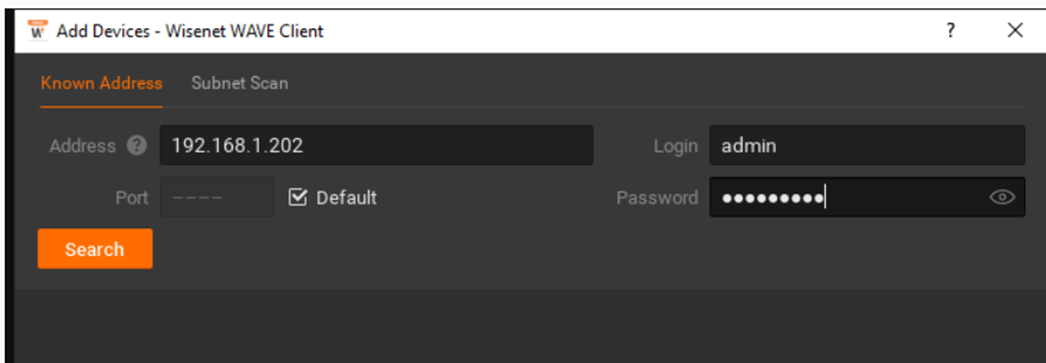

3. Enter the IP address, user name, and password of the intercom and click Search.



4. Check the box on the far right of the screen.

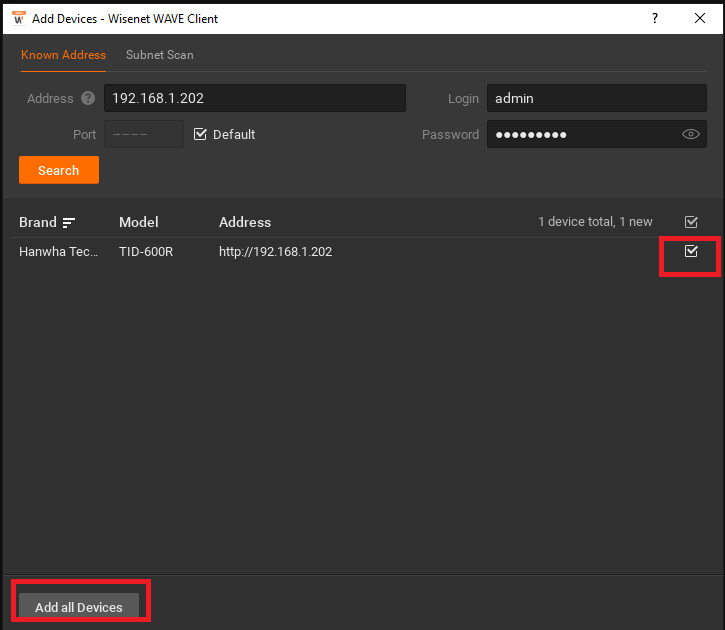

5. Click Add all Devices.

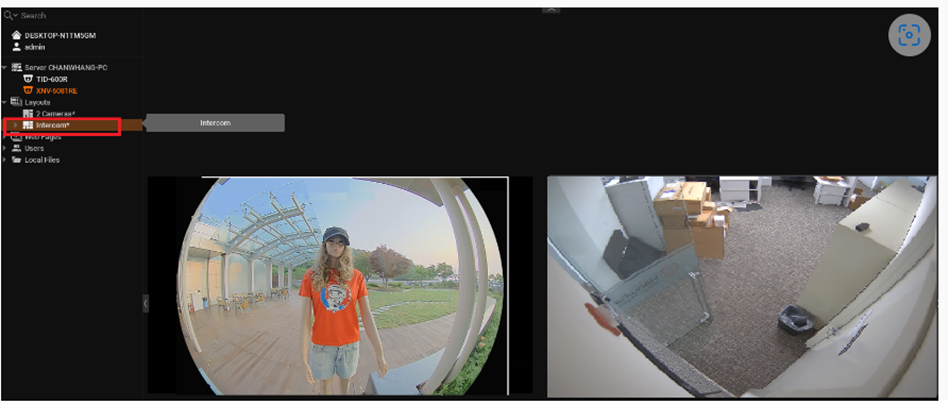

   NOTE: In WAVE version 5.x, the layout is automatically generated when adding
   the TID-600R to the system, so steps 6-9 are not necessary.

6. Right-click on the Layouts.

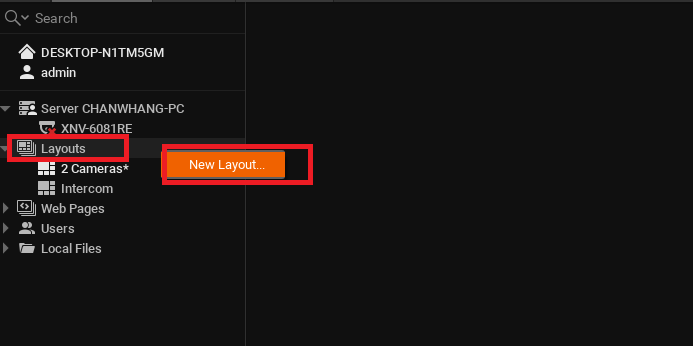

7. Select New Layout.

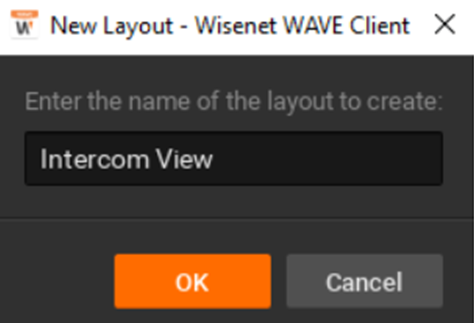

8. Enter the Layout Name to use.




9. Click OK.

10. Select the Layout that you have just created and customize the layout by dragging and dropping the cameras that you want to see when the intercom call is detected.



11. Click Ctrl + E.

    The Event Rules window appears.

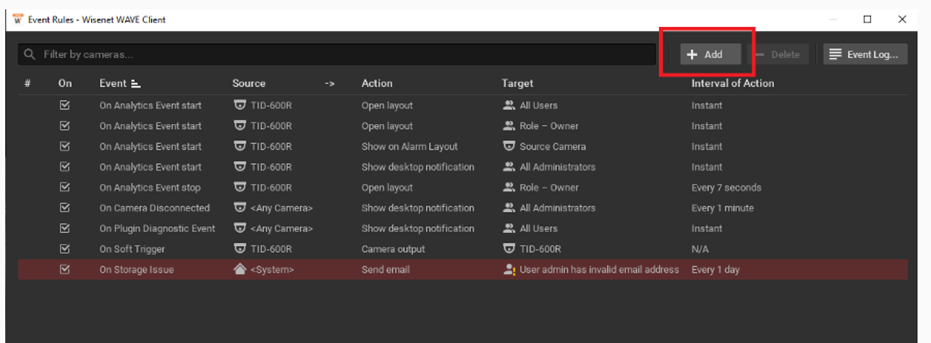

12. Click Add to create the desired rule.

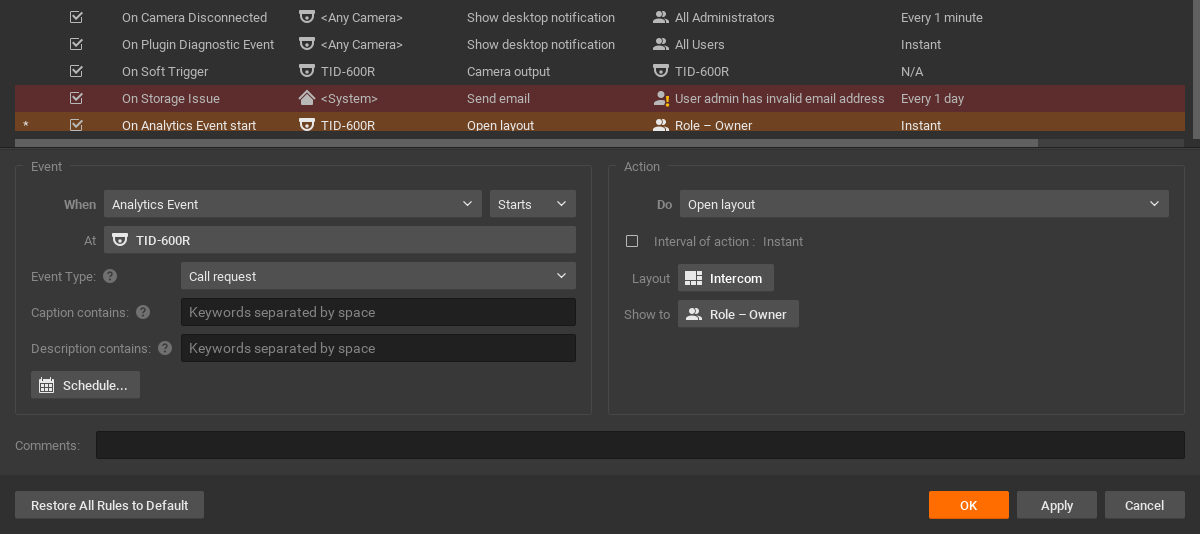

13. Set the When drop-down to Analytics Event.


    NOTE: The Intercom layout will be displayed when the call is triggered from the
    intercom.

14. Set the second drop-down on the When line to Starts.


15. Select your event source from the At window to the TID-600r you want to be the source of your event.




    NOTE: This window allows multiple device selections.

16. Select Call Request from the Event Type drop-down.

17. Select Open layout from the Do drop-down.


18. Leave the check box for the Interval of Action unchecked to make the action instant.

    NOTE: If you put a check in the box and set a time limit, the layout will close
    automatically after the selected time period has expired.

19. Click Layout to select your layout.

20. Click Show To to select users to whom to execute this rule.


21. Click OK to save the new rule.

    NOTE: The audio can be picked up by SIP phone or Softphone.
