Applies to: TID-600R

Summary

This article provides instructions for extension creation in 3CX PBX version 14 and registration of the intercom to the PBX.

Configuring 3CX for TID-600R

To configure 3CX:

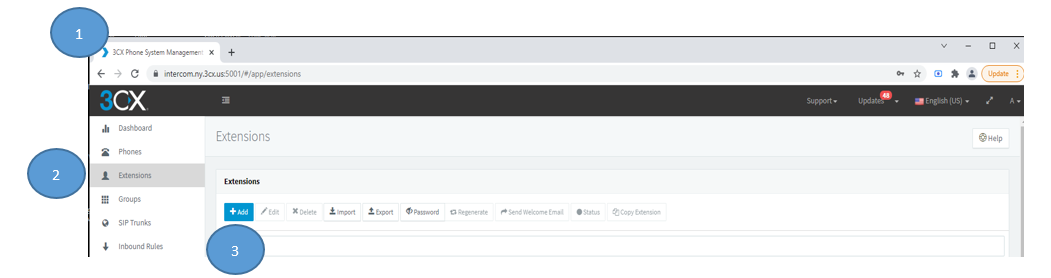

1. Log in to the 3CX Phone System Management Console.

2. Click Extensions.

3. Click Add.

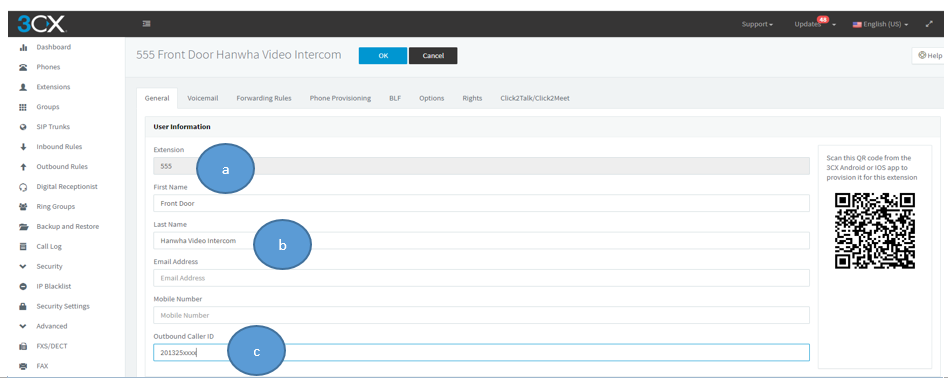

4. Provide the User Information for the TID-600R extension.

   a) Extension = Contact the 3CX admin to utilize a valid numbering plan.

   b) First Name and Last Name = This can be as simple as the location of the TID-600R in the site.

   c) Outbound Caller ID = When a call from TID-600R is forwarded to an external party, this caller ID info displays to the external party.

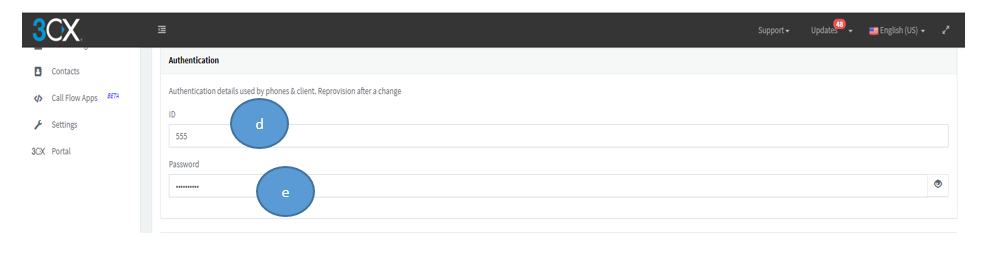

5. Provide the SIP Authentication information for the TID-600R extension.

   d) ID = Extension number provided in step (a)

   e) Password = Provide a password for registering the TID-600R to 3CX

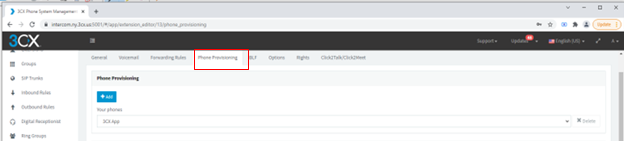

6. Click the Phone Provisioning tab.

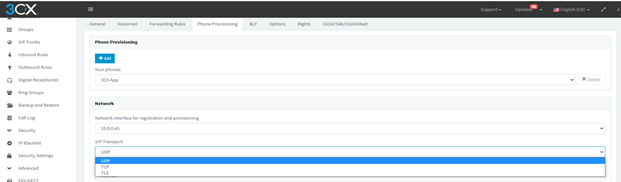

7. Select the Transport protocol required (TID-600R supports UDP, TCP, TLS)

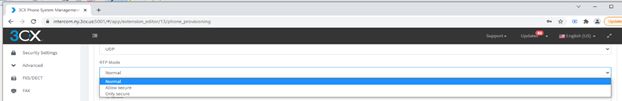

8. Select RTP mode (for Secure communication, use Only secure or Allow secure)

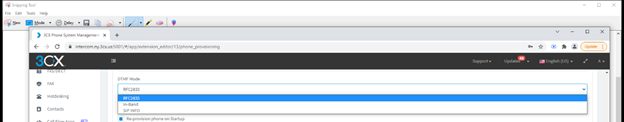

9. Select DTMF mode (TID-600R supports RFC2833 and SIP Info)

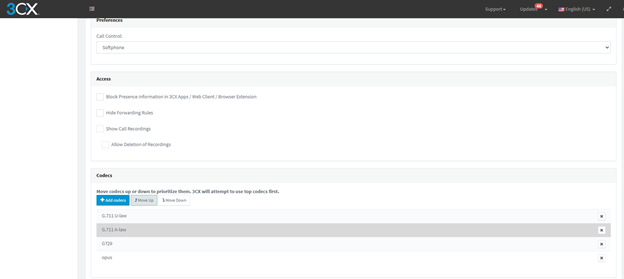

10. Verify the audio Codecs listed are supported by TID-600R (TID-600R supports G711, OPUS, G722)




11. Click the Options tab.

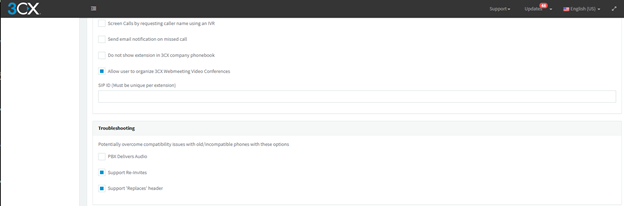

12. Verify that the boxes next to Support Re-Invite and Support Replaces Header are checked.




    3CX supports the following Video Codec by default, TID-600R VOIP profile is an H264 profile.




13. Locate the intercom setting for the registration.
