Applies to: Hanwha 4-channel multi-sensor camera models

Summary

This article provides the minimum lens separation for Hanwha 4-channel multi-sensor camera models. This information is useful for A&E teams or customers who want to estimate the field of view (FoV) when all lenses are moved together in the same direction.

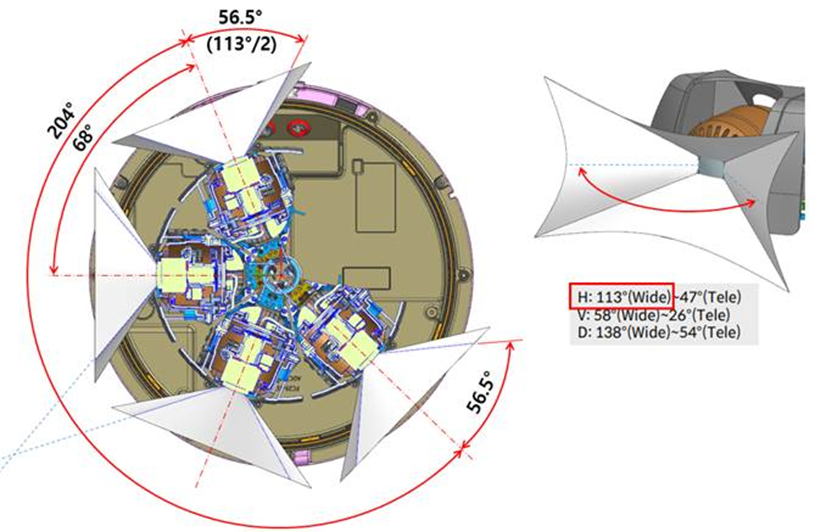

Minimum Lens Separation

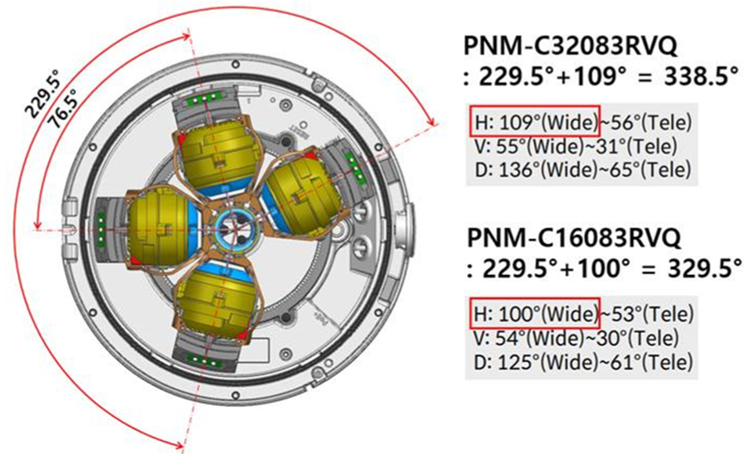

• PNM-C32083RVQ and PNM-C16083RVQ




• PNM-C32083RQZ and PNM-C16083RQZ

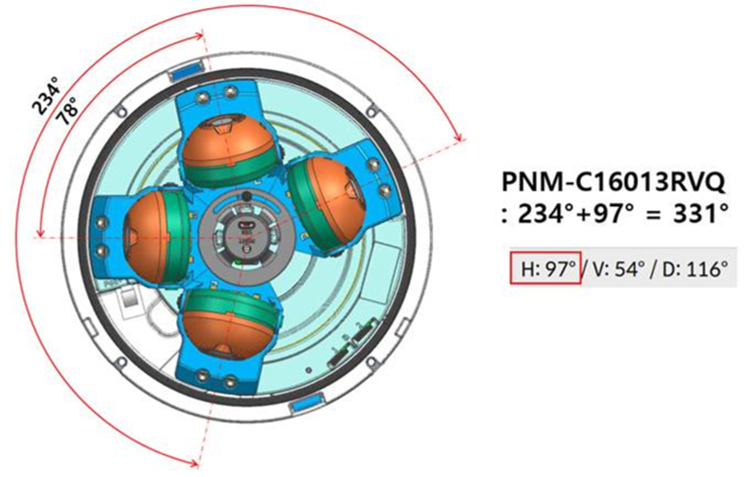

• PNM-C16013RVQ



NOTE: If further data is required for PNM-C16013RVQ or PNM-C19013RVQ,
please contact Product Management.
