Applies to: OnCAFE Access Control as a Service (ACaaS) Web Platform

Summary

Wavelynx Readers have firmware that may need to be updated from time to time in order to function properly.  This article outlines the process for performing updates using the Wavelynx Configure app via mobile Android device.

Prerequisites

Before updating the NOP reader:

1. Ensure you have internet access prior to going onsite.

2. Install the Wavelynx Configure app from the Google Play store for Android.


3. Contact Hanwha Technical Support for the latest tokens.

   NOTE: The token may change as future updates are released.
   At the time of this article, the current firmware version is 5.4.1.
   The following table includes the Token IDs needed for BLE and NFC (Wallet)
   credential profiles as well as the firmware.

Updating Using Android

To update the firmware or profile using Android:

1. Open the Wavelynx Configure app.

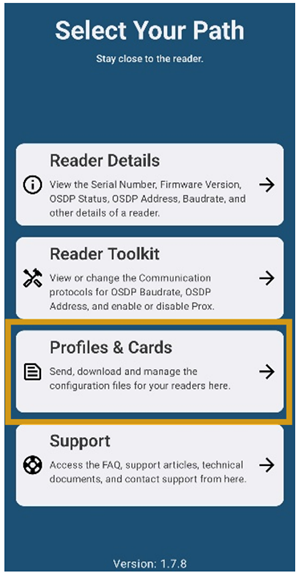

2. Click Profile & Cards.

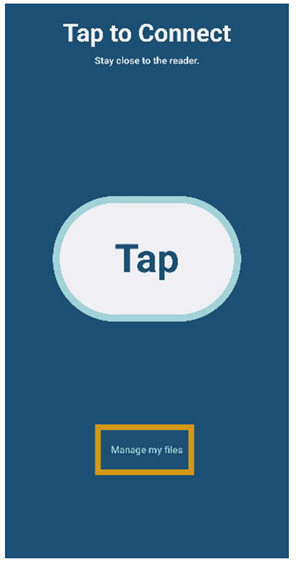

3. Click Manage my files.



4. Click Download File and enter the download token.

5. Return to the main menu of the Configure app and click Profile & Cards.

6. Power cycle the reader.

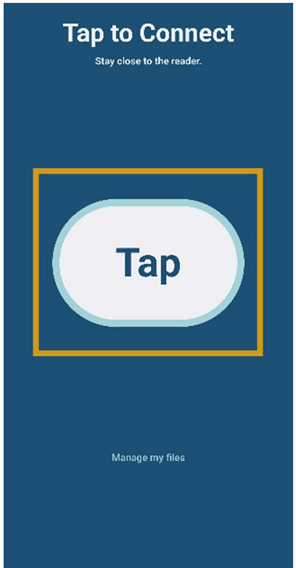

7. Within 60 seconds, while touching the reader with your device, click TAP.



   The reader LED changes color when connected.


8. On the Cards tab, select the token to perform the firmware upgrade or profile update.

   IMPORTANT: Make sure to keep the phone in contact with the reader or
   very close as to not break the connection. This could cause the update
   to fail and, in some cases, corrupt the firmware on the reader. This may
   take 3-5 minutes.

   Once the update is finished, the reader will reboot at least once and
   return to its normal LED operation.

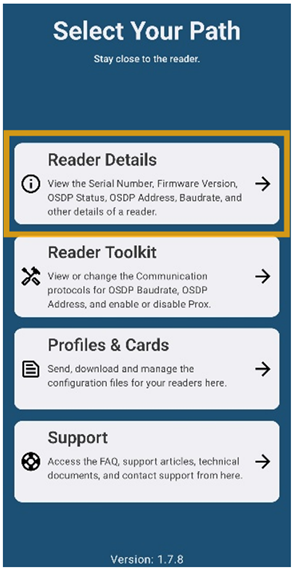

9. From the main menu of the Configure app, click Reader Details.



10. Click Tap while mobile device is touching the reader.

    The reader LED changes color when connected.

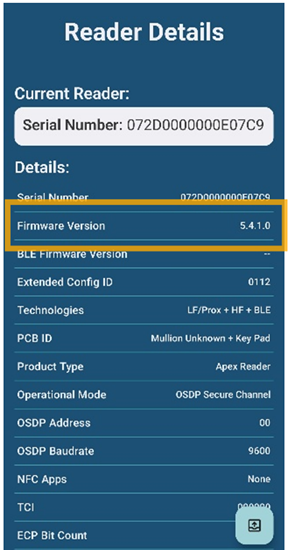

11. Confirm the Firmware.
