Applies To: WiseAI Open Platform Application

Summary

This article describes how to configure object detection on Hanwha cameras running the WiseAI analytics application. In this article, the PNM-C34404RQPZ fixed sensors are used as an example. The same process applies for any Hanwha Vision camera equipped with WiseAI.

Configuring Object Detection

To configure object detection:

1. Log into the camera via web browser (Chrome recommended).

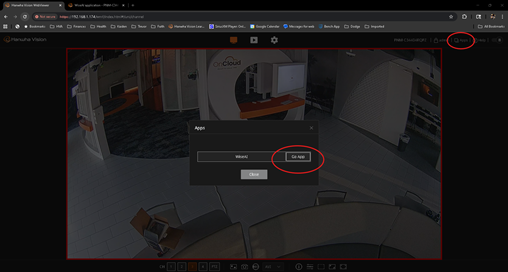

2. Select Apps > Go App.

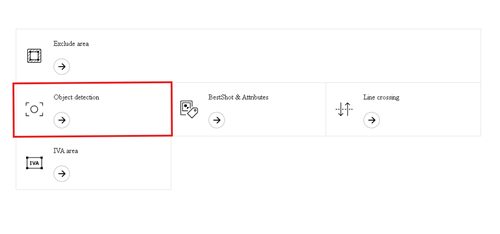

3. Select Object Detection.

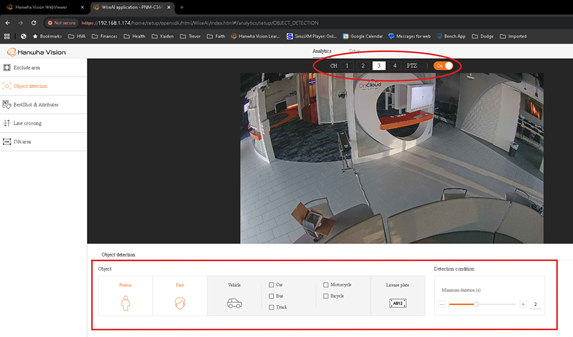

4. Select the sensor and toggle to ON to enable object detection.

5. Select the desired object types for detection (person, face, vehicle, license plate) and set the minimum duration (time object must be in scene to be detected).



6. Repeat this action for all applicable sensors and PTZ.
