Applies to: WAVE

Summary

WAVE allows users to monitor the condition of media servers in real-time. This article explains how to open the monitoring window.

Monitoring the Server

To open the monitoring window:

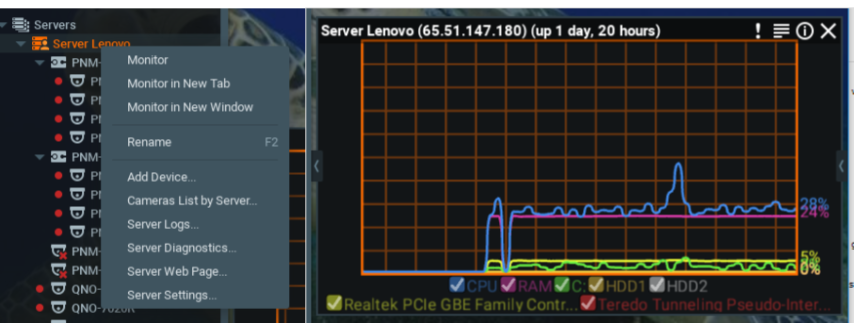

1. Choose from one of the following:

• Drag media server from Resource Panel onto the Viewing Grid
• Open media server's Context Menu and select Monitor
• Uptime (beginning of server start)
• CPU Load
• Memory Usage (RAM)
• Hard disk partitions usage (C: and D: in this case)
• Network Interfaces Usage

2. Check corresponding boxes to view the data. When hovering over a checkbox, the corresponding graph appears:

   Users can perform standard manipulations with Monitoring Item: move, re-size, swap, duplicate as any other item on the scene. To stop monitoring, remove the corresponding item from the scene.

   Multiple Media Servers can be monitored simultaneously.
