PNM-9320VQP and PNM-9322VQP Handover

Summary:
The PNM-9320VQP is a five-sensor camera, with four stationary sensors and one PTZ, that features the ability to execute the Handover command independently and includes a standard interface for configuring Handover presets. The Handover feature enables the camera to send a preset Event to a secondary camera. This article includes instructions for setting up the Handover feature.

Step By Step Guide:

Steps required to set the action:

  1. Open a Chrome browser and enter the IP of the camera into the URL bar.

  2. Log in using valid admin credentials.

  3. Click the Gear icon at the top of the interface.

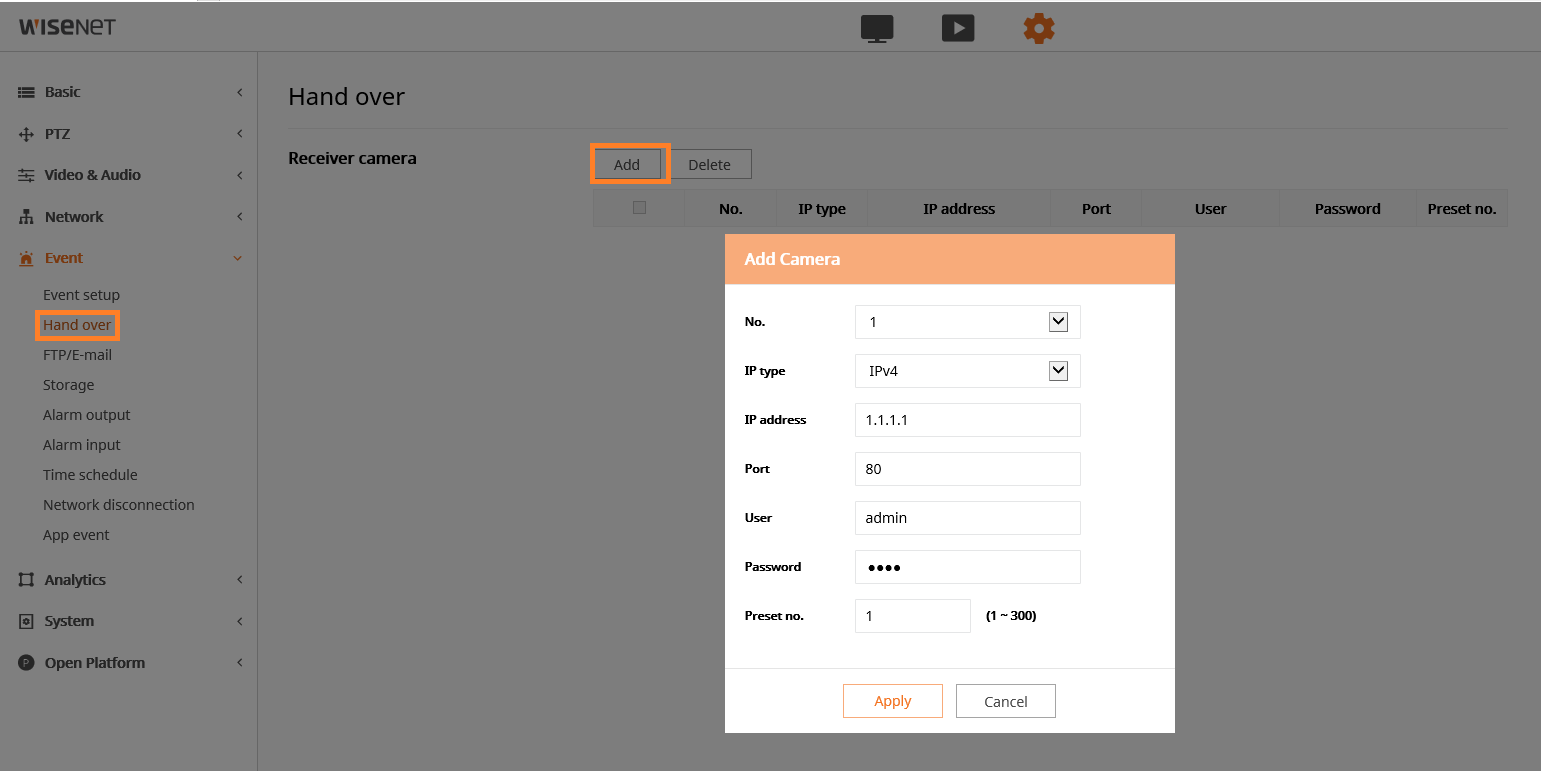

  4. Navigate to Event > Handover, then click Add.

  5. Select your preset number from the No. dropdown menu.

  6. Select either IPV4 or IPV6 from the IP Type dropdown menu.

  7. Enter the IP address of the unit to receive the Handover command.

  8. Enter the IP Port of the camera (usually 80).

  9. Enter the Username and Password for the Admin account.

10. Enter the Preset no. you are going to trigger, then click Apply

The sending camera sees a motion Event and sends the Handover command to the receiving camera(s). The receiving camera(s) then move to the preset position specified in the Handover command

NOTE: Step 10 is related to a PTZ Preset position that was set prior to these
steps. If unfamiliar with this process, consult the manual for the PTZ camera
in question. The sending camera is normally a stationary camera seeing motion.
It then sends the Handover to a PTZ camera.
