Wisenet 7 Series - On Screen Display (OSD)

The Wisenet 7 Series cameras On-Screen Display (OSD) functions differently than previous lines.  The new functionality allows click and drag ease for adjusting the text.  Previous generations required complex X & Y coordinates which often resulted in overlapping text.

1. First, enable to OSD function in the Camera Setup Menu, under Video & Audio.  Then navigate to the        OSD tab.

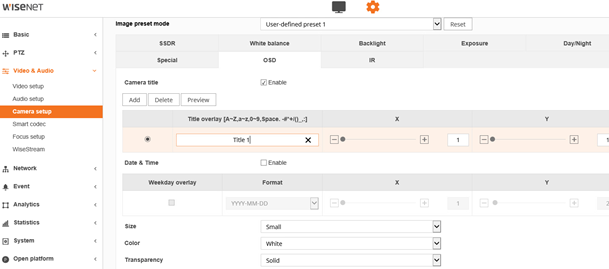

2. Click the Add button to add a new line of text.  Enter the desired text, and then click the Preview

     button to display the text.

3. To change the position of the text, click and drag the flashing orange triangle, then click preview.

4. If you do not click the preview button, you will see the triangle indicator without the text.

5. OSD preview in new position

6. Click Apply to save your settings.

7. Each line of text can be independently positioned, as can the time/date OSD.

8. If you have multiple lines of the OSD enabled, the currently selected one will show the flashing orange      triangle.  The other lines will have a white triangle to indicate that it is not the active item.  Simply click      the radio button to select it, or just click and drag on the triangle to select it.
