Applies to Models:  Wisenet X, P, and T Series Cameras with Micro USB Ports

Summary:

X-Series cameras feature a micro USB connector. With a specific WiFi adapter attached to the USB connector, wireless setup of the camera is possible using the Wisenet Installation application available for Android and IOS.

Step By Step Guide:

1. In Windows open the WiFi Network Setup utility and search for the camera. (Figure 1)

2. The SSID should include the camera model number. The PC WiFi should be in DHCP mode. (Figure 1)

Figure 1

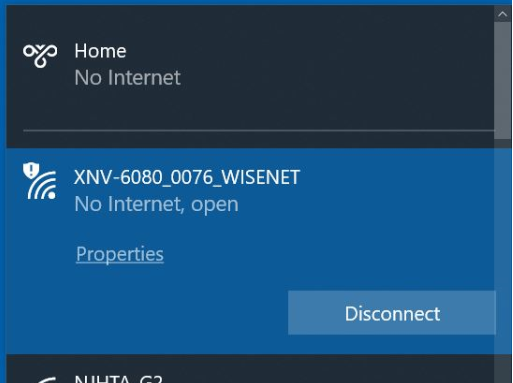

3. Connect to the camera (Figure 2)

Figure 2

4. Once you are connected, Open up a command prompt window

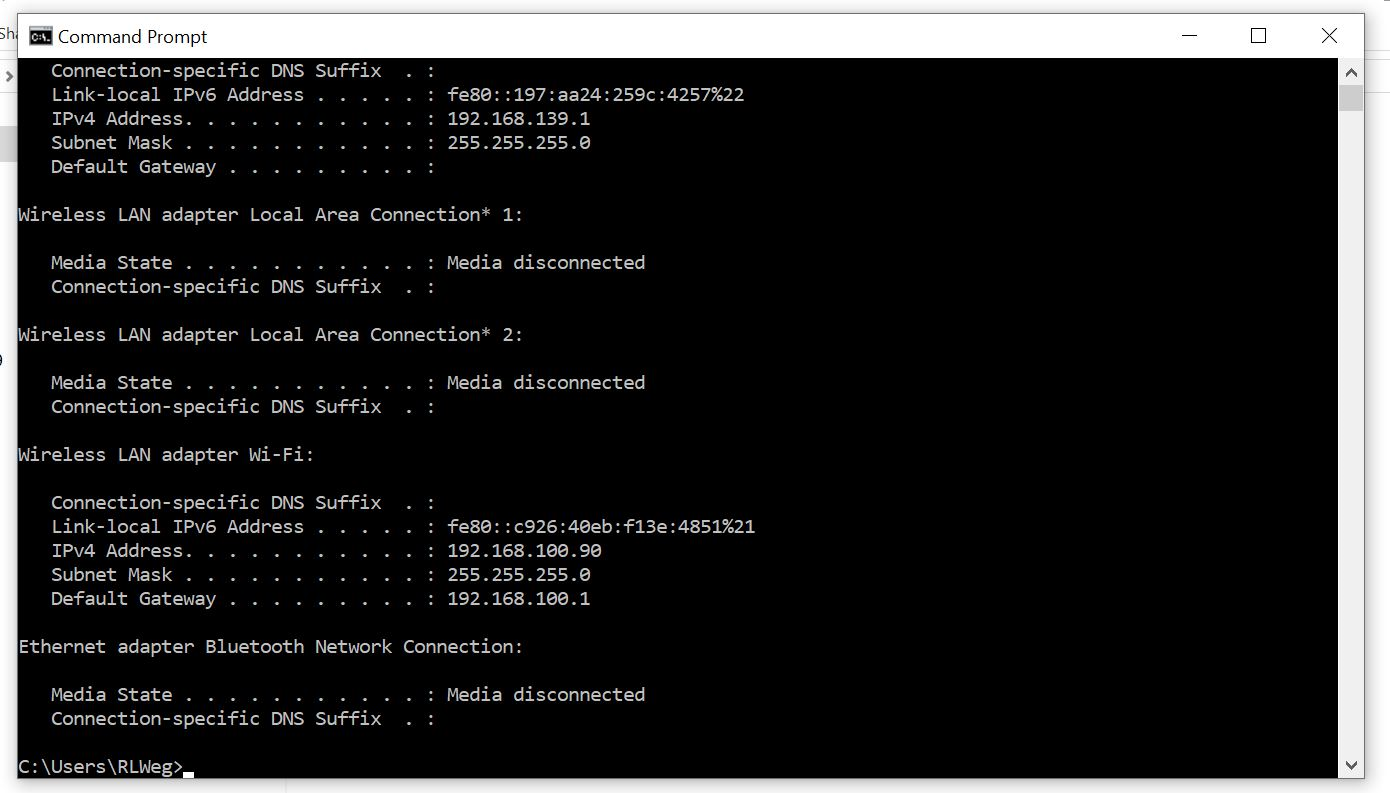

5. Type: ipconfig (Figure 3)

6. Locate the WiFi adapter and write down the Default Gateway (Figure 3)

Figure 3

7. Open up a web browser

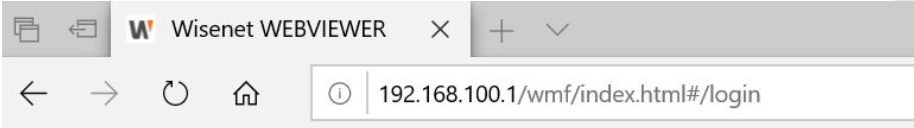

8. Enter the Gateway information into the address bar (Figure 4)

Figure 4

 9. A prompt should then be displayed for the camera log in window (Figure 5).

10. Enter the login information (Figure 5)

11. Click OK (Figure 5)

Figure 5
