How to Activate White Light LED with Camera Events

Applies to Models: QNE-C8013RL, QNE-9013RL

To maintain standards, Hanwha Vision uses the web UI for all knowledge base articles about product configuration. Open Chrome, enter the IP Address of your device into the URL bar, and press enter. If you are not using the web UI to configure your device, please refer to the user manual for your product.

Summary:
The white light alarm can be activated through a combination of event triggers such as AI based MD, IVA, and tampering detection. The white light can be turned on during the “Dwell time” and can be used as a welcome, or it can be used as a blinking warning alarm. In a dark environment monitored by IR, by turning on the white light alarm, people can receive a visual warning that may help to prevent crime.

The steps below walk you through enabling the white light alarm utilizing a camera event.

Step By Step Guide:

Step 1:
1. Login to the camera's web interface.

2. Navigate to Setup -> Video & Audio -> Camera Setup

3. Click on the LED Light tab to make sure it's enabled (Figure 1)

4. Mode: select Light Alarm and then Flashing or Constant (Figure 1)

5. Dwell time: select time limit for the light to be on/flashing (Figure 1)

6. Level: select a level of 1 - 5 This is the intensity of the light, 5 being the strongest (Figure 1)

                                                                             Figure 1

Note: You can set an activation time for the light to flash or remain constant so events
trigger during a different time period than when you want the white light LED to activate.

Step 2:
Now that you have enabled white light, you need to setup your motion or IVA events. To do this, follow these steps.

1. Navigate to Analytics in the Setup resource tree

2. Choose Motion Detection or IVA

3. To configure Motion Detection:

3a. Check Enable Motion Detection box (Figure 2)

3b. Create your Include area(s), Exclude area(s) and Common here (Figure 2)

3c. Adjust Sensitivity and Minimum duration here as well (Figure 2)

                                                                                       Figure 2

4. To configure IVA:

    4a. Check Enable IVA box (Figure 3)

    4b. Create your Virtual line, Virtual area, Exclude area, Common settings (Figure 3)

    4c. Adjust the Minimum duration (Figure 3)

                                                                           Figure 3

5. Select Light alarm in the Event action settings at the bottom of the page (Figure 4)

                                                 Figure 4

6. Click Apply at the bottom of the page to confirm your settings (Figure 5)

                                          Figure 5

Step 3: (optional)
Lastly, you can confirm Light alarms are active in the Event Setup menu. This is a quick and easy way to simply enable/disable Light alarms in general.

1. Navigate to Event in the Setup resource tree

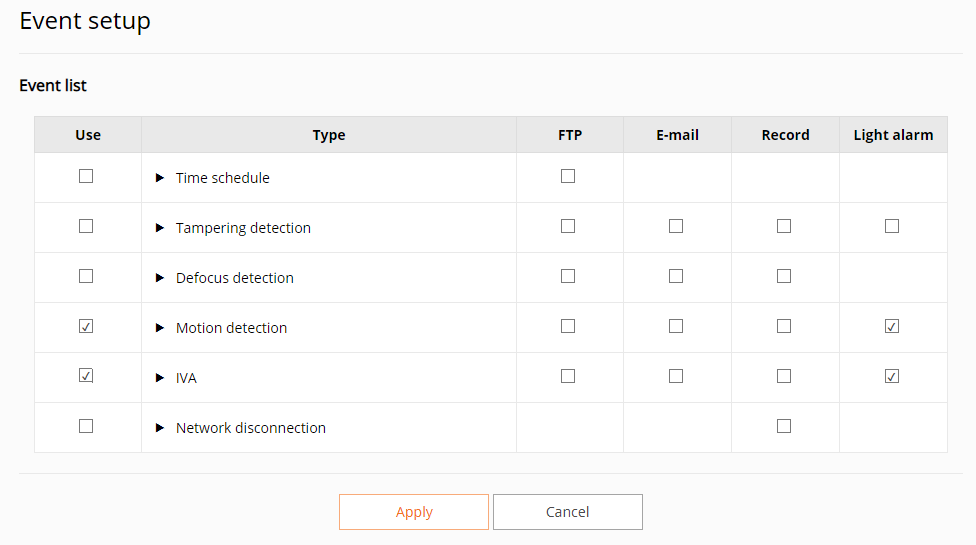

2. Select Event Setup (Figure 6)

3. Confirm Light alarm is checked for each "Type" you setup, Motion or IVA (Figure 6)

                                                                                Figure 6

Test your configuration and event action to confirm the white light LED turns on or flashes as you specified.
