TID-600R on SSM 2.11

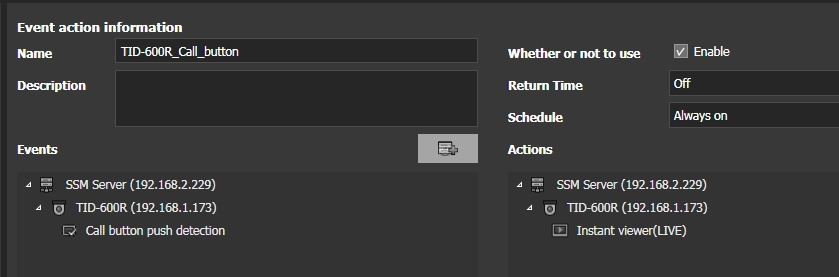

TID-600R has a Call button as an Intercom, we can set SSM event when pushing the Call button.

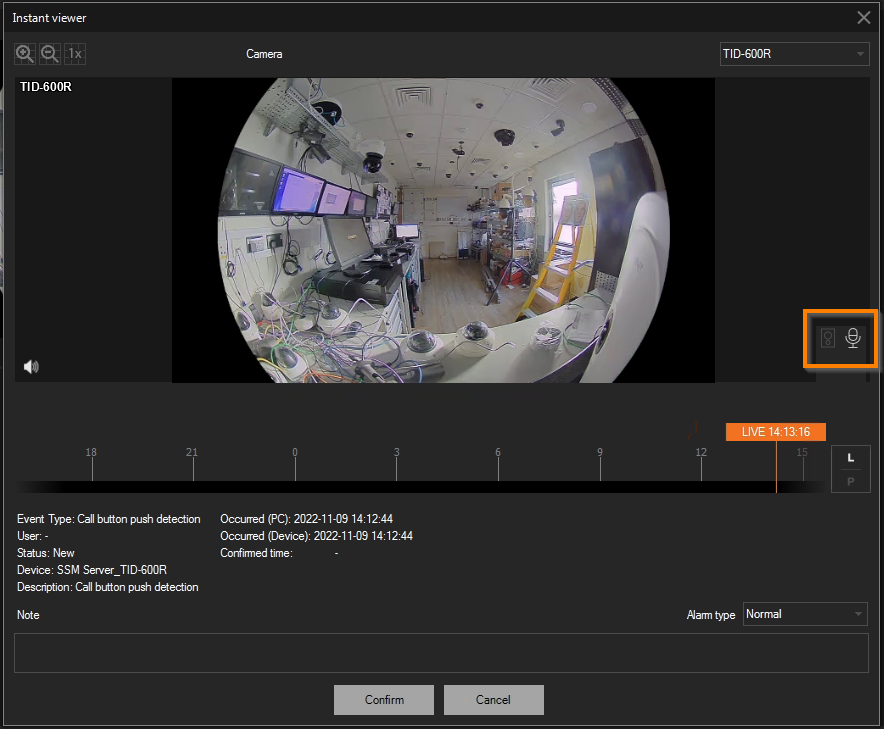

In the default setting of TID-600R and SSM, the instant pop-up viewer works fine but one feature is not activated. The feature is for door unlock.

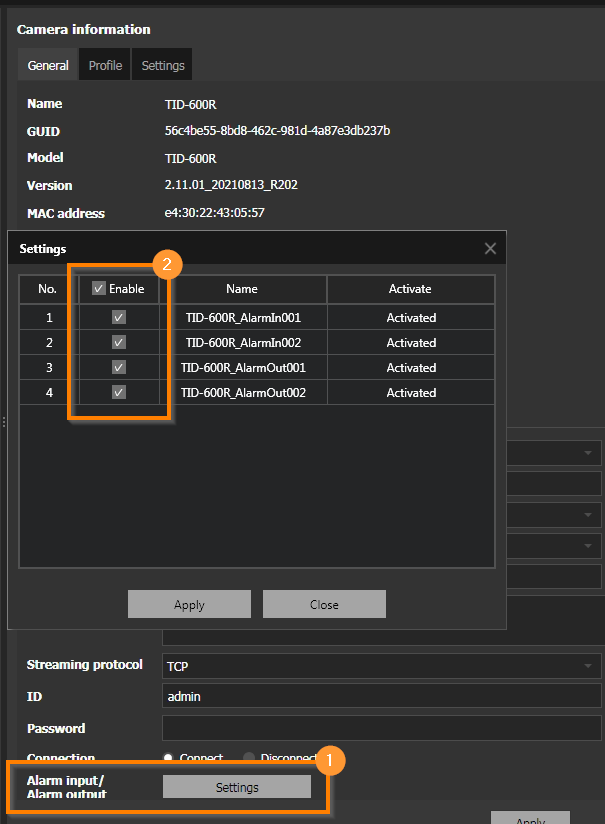

To activate this feature, an activating Alarm Output of TID-600R in SSM is a first step.

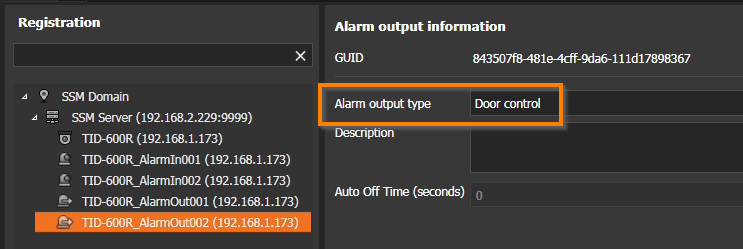

And then, one of Alarm Output of TID-600R needs to be set 'Door control' as Alarm output type.

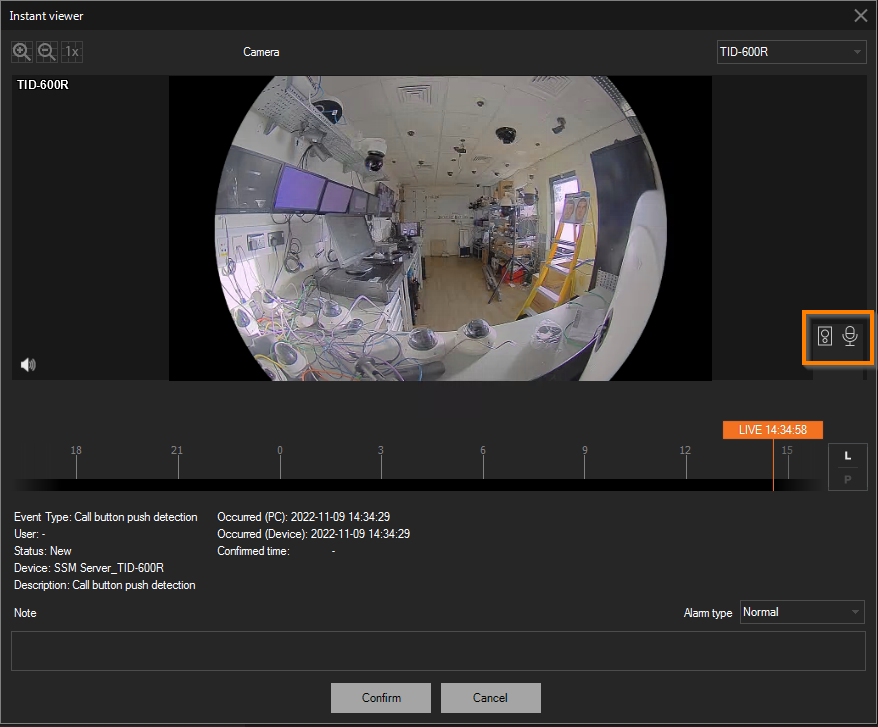

If a setting Alarm output type is done, the door unlock feature of Instant pop-up viewer will be activated.

The features' name are,

1) Unlock

2) Broadcast to selected camera
