Connecting SPC-7000 to a network camera

An article on how to connect a network camera to the SPC-7000

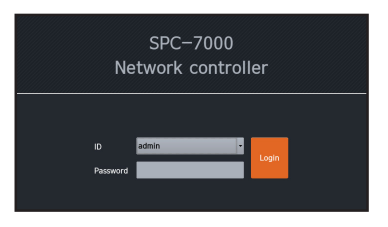

1. Log into the SPC-7000 joystick by entering the admin and password for the device.

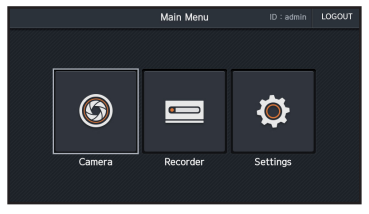

2. When the system settings screen appears, select 'Device'

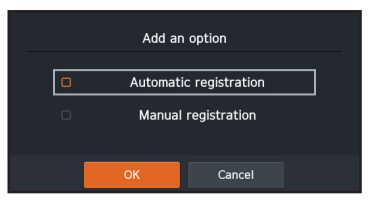

3. Choose between Auto-registration and manual registration

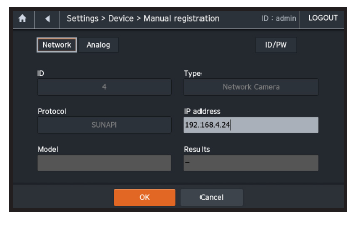

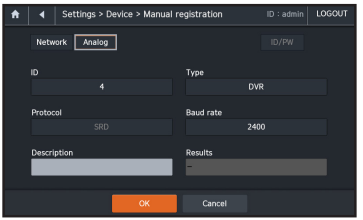

If added manually, enter the correct camera details, i.e. protocol and IP address

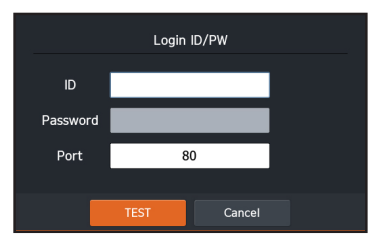

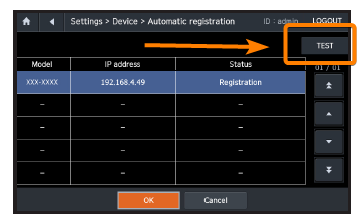

If added via auto-search, please ensure that you perform a connection test before completing registration.
