Description
- Hanwha Vision now offer three types of remote head cameras; XNB-6001, XNB-6002, PNM-9000QB
- These models are used with a cable-type lens module.
- This article describes how to optimize lens cable length during installation on remote head cameras.
- For installation details, please refer to the user manual and quick guide for each product.
1. Installing the lens module in the main unit
※ Note
- Only the single cable provided in the package should be used with the lens module.
- We do not guarantee the proper operation of the camera when using cables other than the cables provided by Hanwha Vision.
Every lens module package includes an 8-meter cable as default. When you need to organize the cable, follow the instructions below to roll it up.
- Turn off the main unit power when connect or remove lens module.
- Install the lens at least 3 meters away from the main unit. It is recommended to not fix the cable within 3 meters from the main unit.
- It is recommended to wrap the ferrite core two times around the power cable and LAN cable.
- There is a 15-meter optional cable (SCL-150) available for the PNM-9000QB. However, it is not available for XNB-6001 and XNB-6002. And, you must use one of the 8-meter or 15-meter cables. You can't use both at once.
Figure 1. PNM-9000QB

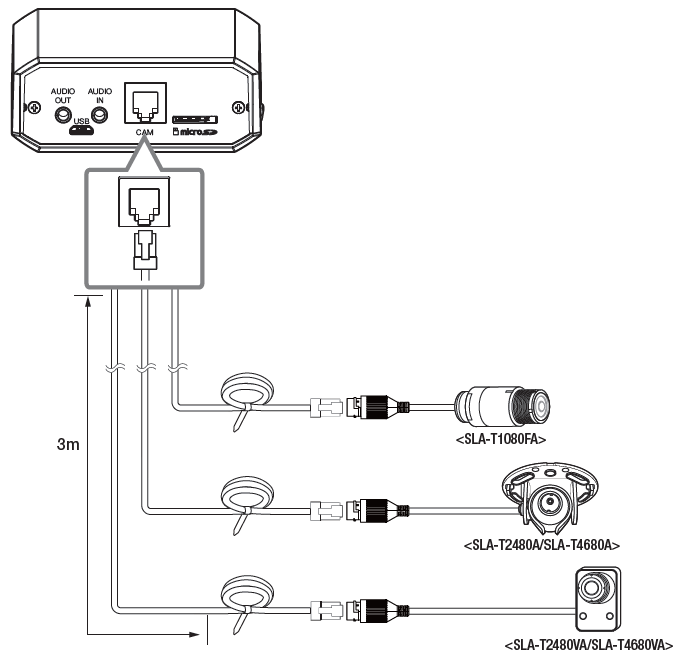

Figure 2. XNB-6002
2. Adjust the length of the cable for connecting the lens module
The length of the cable for connecting the main unit and lens module can be adjusted. Please follow the steps in the correct order to adjust the length of the cable for connection.
※ Note
- Only the cable and RJ12 Plug provided in the package should be used.
- We do not guarantee the proper operation of the camera when using other than materials provided by Hanwha Vision.
- For the PNM-9000QB, a 15-meter optional cable (SCL-150) is available.
1) Cut out the cable from the RJ12 Plug at the length you want.
2) Peel off the sheath of the cable you cut out.
3) Peel off the silver foil and pull it back.

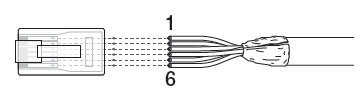

4) Straighten the colored wires in the following order.
5) Insert the electric wire into the end of the RJ12 PLUG provided as an accessory.

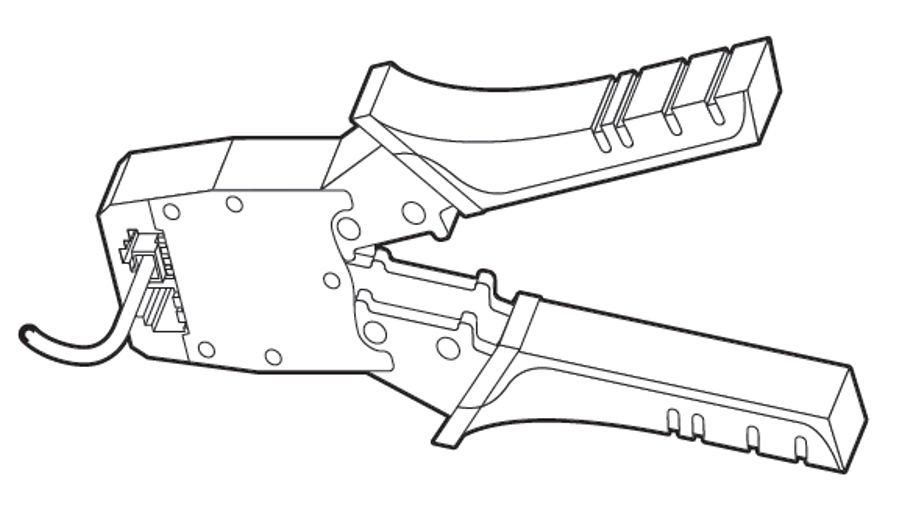

6) Fix the plug to the cable by using a pressing tool.
7) After adjusting the length, remove the remaining silver shield on the rear side of the plug.
※ Note
- Be sure to cut out the RJ12 Plug area to adjust the length.

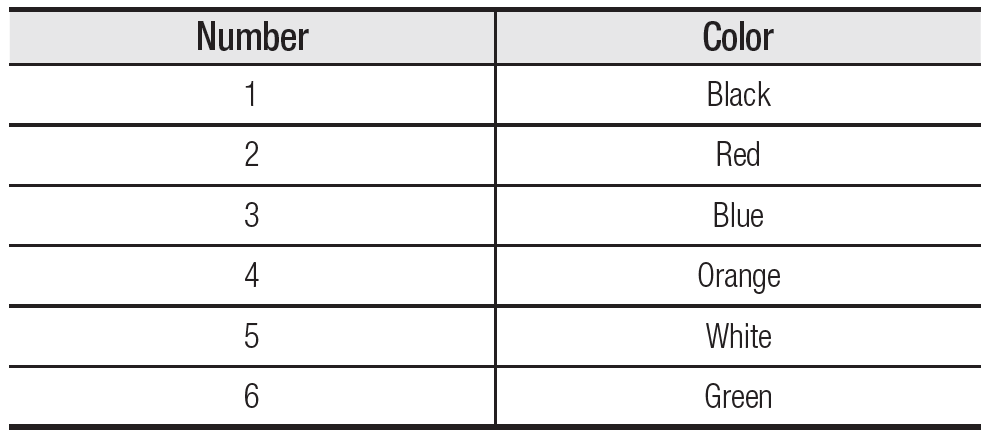

- Make sure the color and order of the wires match what is provided in the table.
- Check out whether the silver shield of the cable properly makes contact with the RJ12 Plug metal shield.
