• Supports various operating systems (Windows, Mac OS)
• Easy and intuitive UI
• Flexible channel division and custom layout
• Multiple output on multiple monitors
• Web page display (NVR Web viewer, Tutorial)
• Media file (AVI , MKV , MP4, WNM) playback
• Event trigger and action rule setting function
• Log search function (event , system , audit)

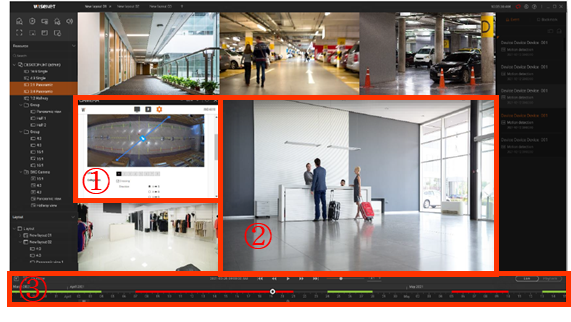

1. Free-Form Layout : Custom Screen Size , Media files in Layout, Webpage Registration
① Web-page(URL) Registration
- Device Webpage, Internet site
② Media/Image File Registration/Playback
- Media : AVI, MKV, MP4, WNM
- Image : JPG, PNG, BMP
③ Full Period Timeline
- Indicates the entire recording section at once

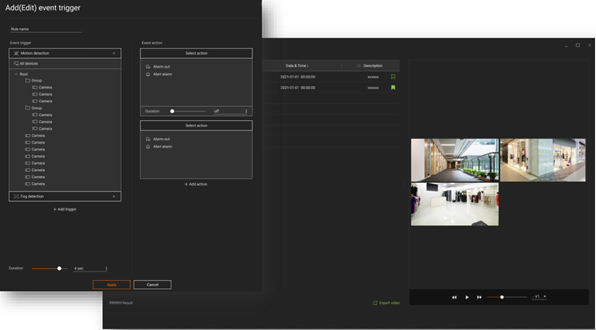

2. Event Search
- Event search
. Conditional Search by device, time, and event
- Event Action
. Select a device-specific event Perform the triggered event function
. Alarm Out/Alert Alarm function
3. Tutorial video
- Link: h ttps://youtube.com/playlist?list=PLG7UogTGksTonxXaBlOqfsgiU8jIscf4O
4. System Requirements
| Items | Minimum Specifications | Recommended Specifications |
| CPU | CPU: Intel i3 or faster | CPU: Intel i7 or faster |
| RAM | RAM: 4 GB or higher | RAM: 16 GB or higher |
| HDD | HDD: 128GB or higher | HDD: Performance SSD, 128GB or higher |
| VGA |
VGA : 512MB or higher ( OpenGL 2.1 support is required) |
VGA: NVIDIA GeForce GTX 1050 ( OpenGL 2.1 support is required) Video memory 1GB or higher |
| LAN | LAN: Gigabit NIC recommended | |
| Display | 1366X768 above, OpenGL compatible |
FHD , 4K supported(High DPI Display) Multi monitors support |
| OS |
Windows 8.1/10/11 64bit, Mac OS 11.0/12.0 * For Apple M1 CPU, first install Rosetta 2 to use the system. |
|
5. Product Key Specifications
| Items | Details | |
Media |
Video Format | H.265, H.264, MJPEG |
| Audio Format | G.711 u-law (PCM), G.726 (ADPCM), AAC | |
| Video | Functions | PTZ, Focus, Brightness/Contrast, Crop area, Capture, Video status |
| PTZ Control | Pan, Tilt, Zoom, Preset, Focus control | |
| Live Local Recording | Up to 2hours, MKV , WNM Wisenet media file) | |
| Playback | Video Control |
Start/Pause, Forward/Backward playback, Previous/Next event, keyboard shortcut |
| Playback Speed | 1x , 2x, 4x, 8x, 16x, 32x, 64x, 128x | |
| Export |
Up to 24hours, Single/Multi channel export, MKV/WNM (Wisenet media file), Encryption Password (WNM only ) |
|
| Performance | Channels | Up to 3000 channels (no limitations in s/w) |
| DDNS/P2P channels | Up to 128 channels | |
| channels per layout | Up to 64 videos | |
| Log | Event log/System log/Audit log, Export log data to file (CSV) | |
| Language | Total 23 languages supported | |
| Compatible devices | Wisenet NVR / DVR (SUNAPI) | |
※ For detailed specifications, please refer to the product specifications on the website:
