1. Model
- Appliance product applied to SSM 2.xx (PRO,PRP,XRP series)
2. Purpose
- To guide how to set up camera profile in regards of camera streaming specification
3. Recommended profile set up

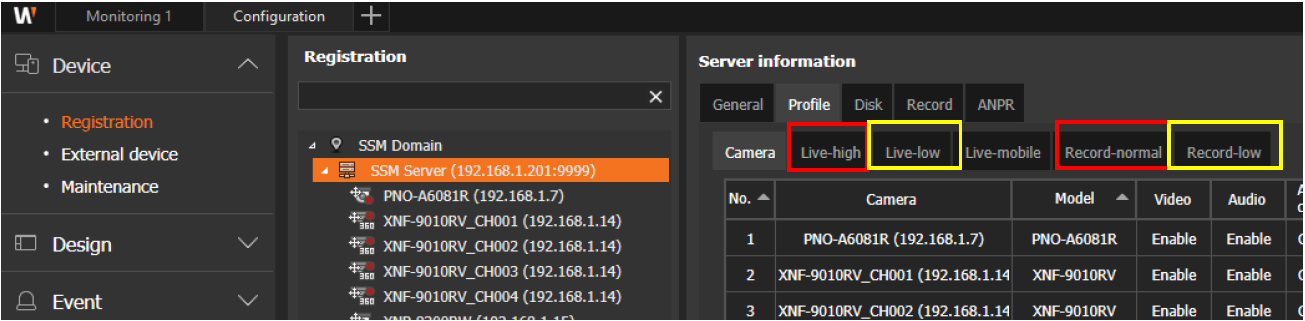

[SSM Configuration > Registration Select server > Check camera profile]
- Default setting is recommended for each profile's detailed settings (frame, bitrate, GOV,
control method)
. Recommended to set `Live, high’, ‘Record-normal’ as same profile
. Recommended to set ‘Live, low’, ‘Record-low’ as same profile
- For low resolution profile, Recommended to use H.264 rather than H.265
. Using H.265 is inefficient due to increased decoding resource with low bitrate saving
※ Set up can be adjusted to user environment, but it is necessary to check data sheet for
streaming specification per each camera before setting
4. How to find streaming spec per each camera(Example)

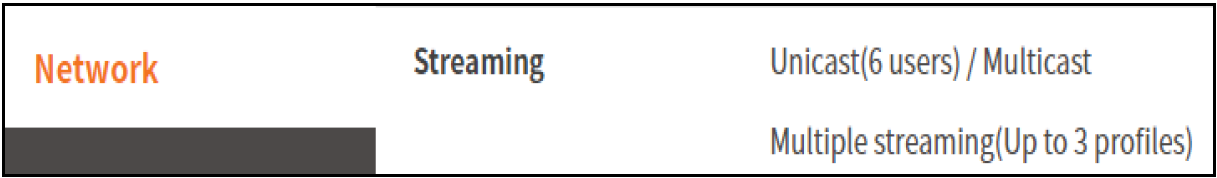

[Website Search > camera model > Datasheet > Network > Streaming]
- Unicast(Max. 6) : Up to six people can access the same profile in a unicast environment
- Multi streaming(Max. 3 profile)profile): Able to access up to three different profiles at the same time
- Be careful not to exceed streaming specifications, especially when using it with combination of
NVR, SSM, Viewer, and Decoder
- When exceeds, some device may not display images or may not display as user setting value
