Device Certificate HTTP 80 port setting

1. Applied model
- Models that are applicable for device certificate via Device Certificate Agent S/W

2. Device Certificate HTTP 80port setting
- Reason for HTTP 80 port setting
 . Device Certificate Agent S/W is developed as to work at HTTP “80 port”
   → When inserting device certificate, it links to its HTTP port by using SUNAPI protocol

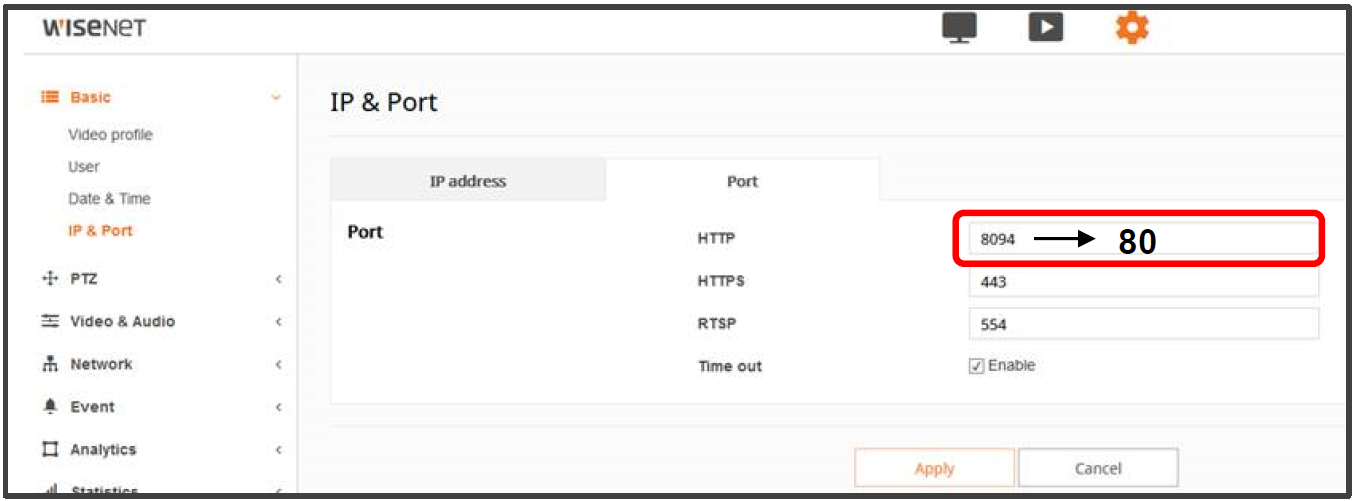

- Setting guide
 . Check if the device’s HTTP port setting is ’80 port’
 . If HTTP port is different than 80, it needs to be changed as 80

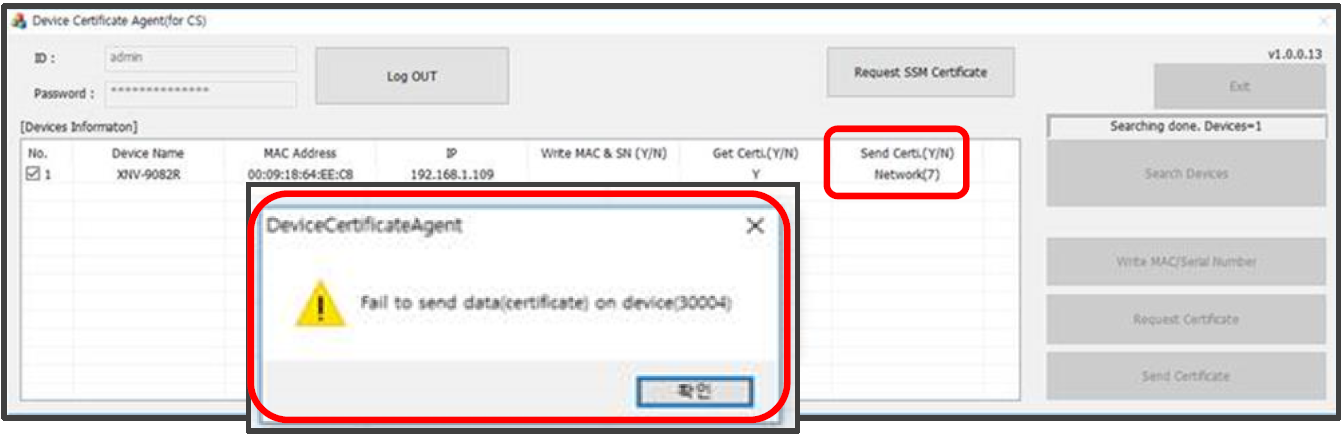

3. Network(7) error occurs if HTTP is not 80 port
-Network(7) error occurs with “Fail to send data(certificate) on device(30004)” message pop up
