Applies to Models:

Summary:

This article will cover the steps needed to create a Multi-System “WAVE Sync Layout” in WAVE to view cameras from multiple isolated systems in the same layout grid.

Step By Step Guide:

1. In the Resource Tree, expand the Other Systems section and expand the site you wish to view from (Figure 1)

Figure 1

2. Left-click and drag the desired camera(s) into the layout grid

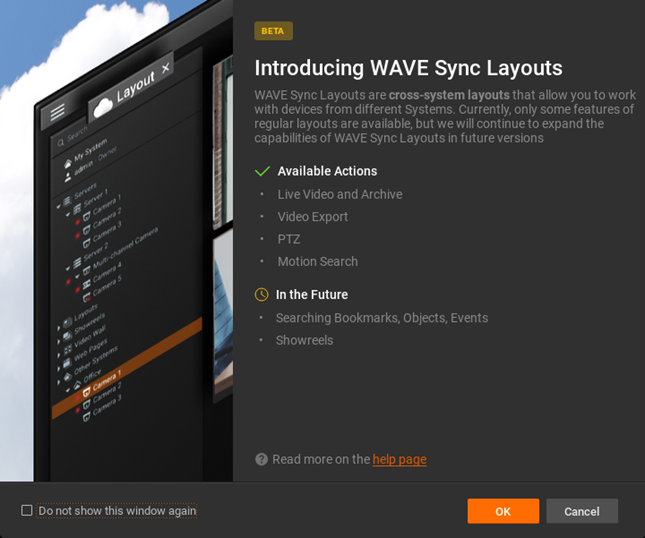

3. You will be greeted with an introduction prompt describing cross-system layouts (Figure 2)

Figure 2

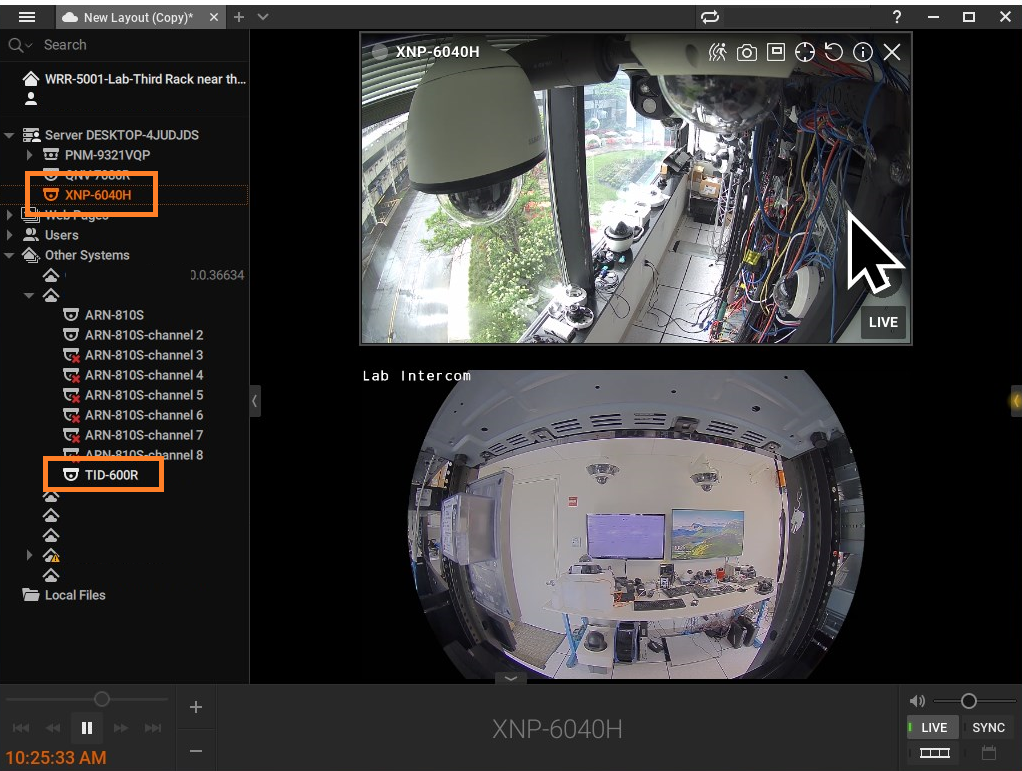

4. Two different systems are now displayed in one session of Wave (Figure 3)

Figure 3

Note: You do not need to be the system owner. The Wave Sync system only needs you
added as a user
