Summary
P series AI NVRs support AI object detection features by themselves.
Therefore, even if non-AI cameras are connected, AI features can be utilized.

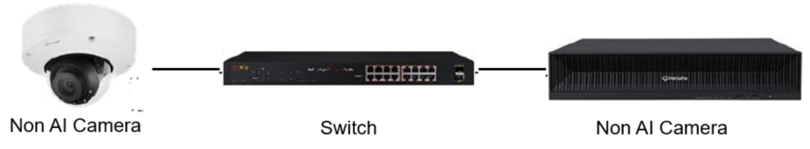

Below describes how to setup AI object detection when non-AI cameras such as XNV-9082R are connected to an AI NVR.
Step By Step Guide

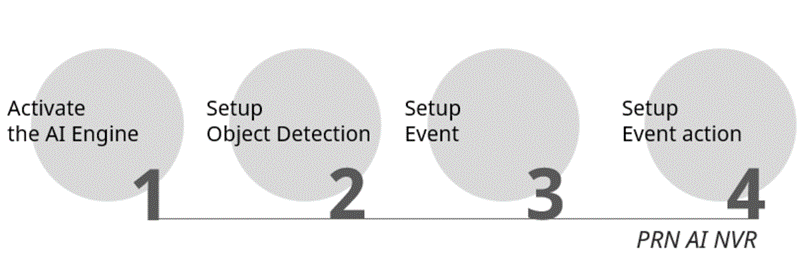

In order to use AI features when non-AI cameras are connected, the following four steps are required.

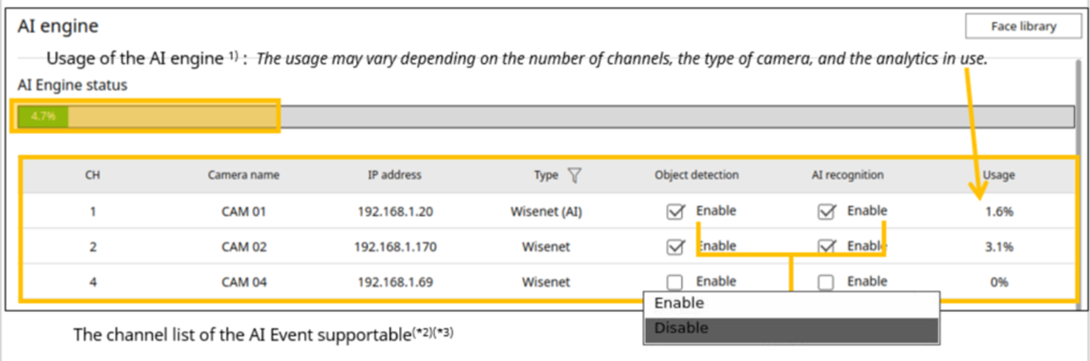

1. Activate the AI Engine of NVR
- Go to Setup > Event > AI engine
- Enable Object detection and AI recognition as below
- AI engine resource increases with the number of registered cameras, and non-AI cameras consume more engine resources than AI cameras.

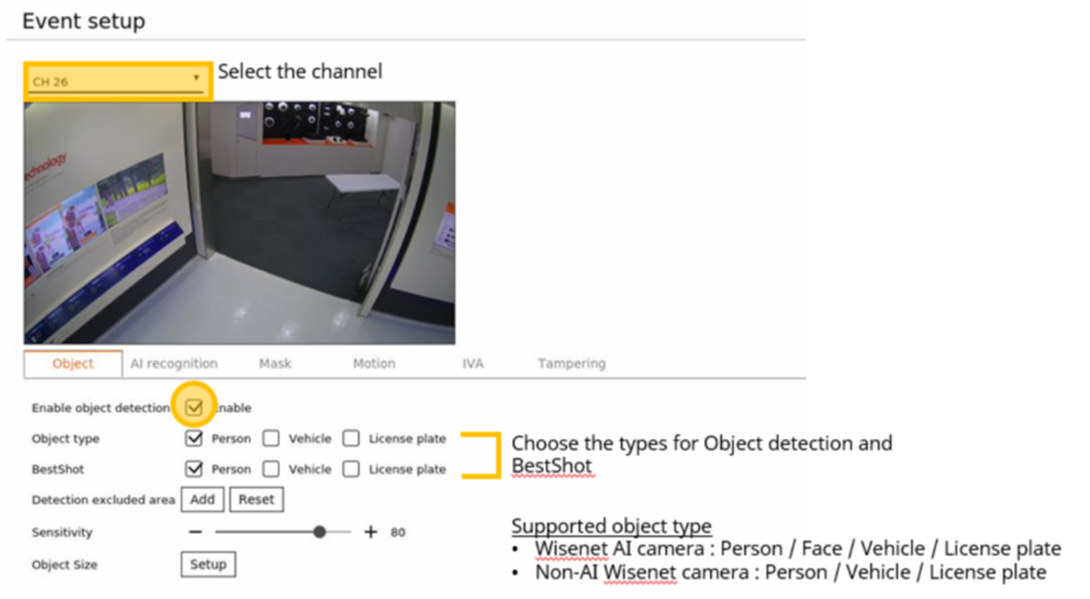

2. Object Detection Setup by CH
- Go to Setup > Event > Event setup > Object
- After selecting the channel to set, check the box of [Enable object detection]
- Select the type of object detection for both [Object type] and [BestShot]
- [Object type] is for generating object detection events, and [Bestshot] is for AI search.

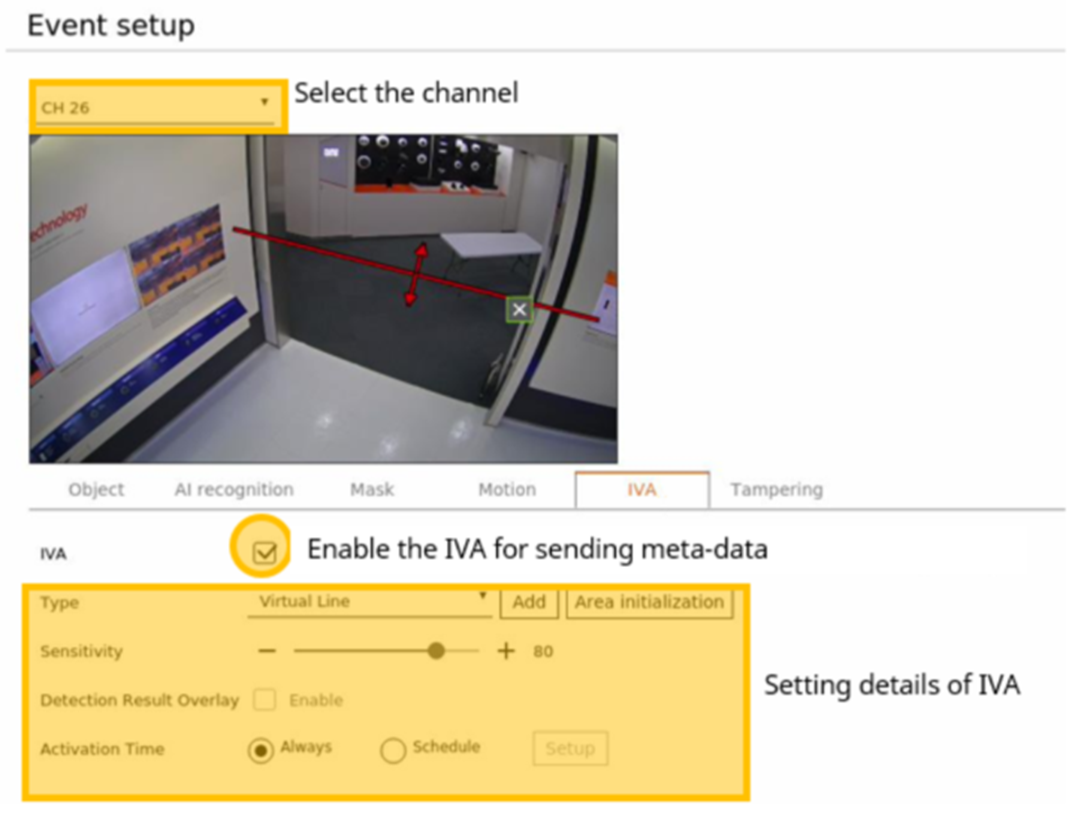

3. Event Setup
As an additional setting for Non-AI cameras, it is necessary to receive the camera's metadata for object detection analysis in the NVR.
- Go to Setup > Event > Event setup > IVA
- Enable IVA as below

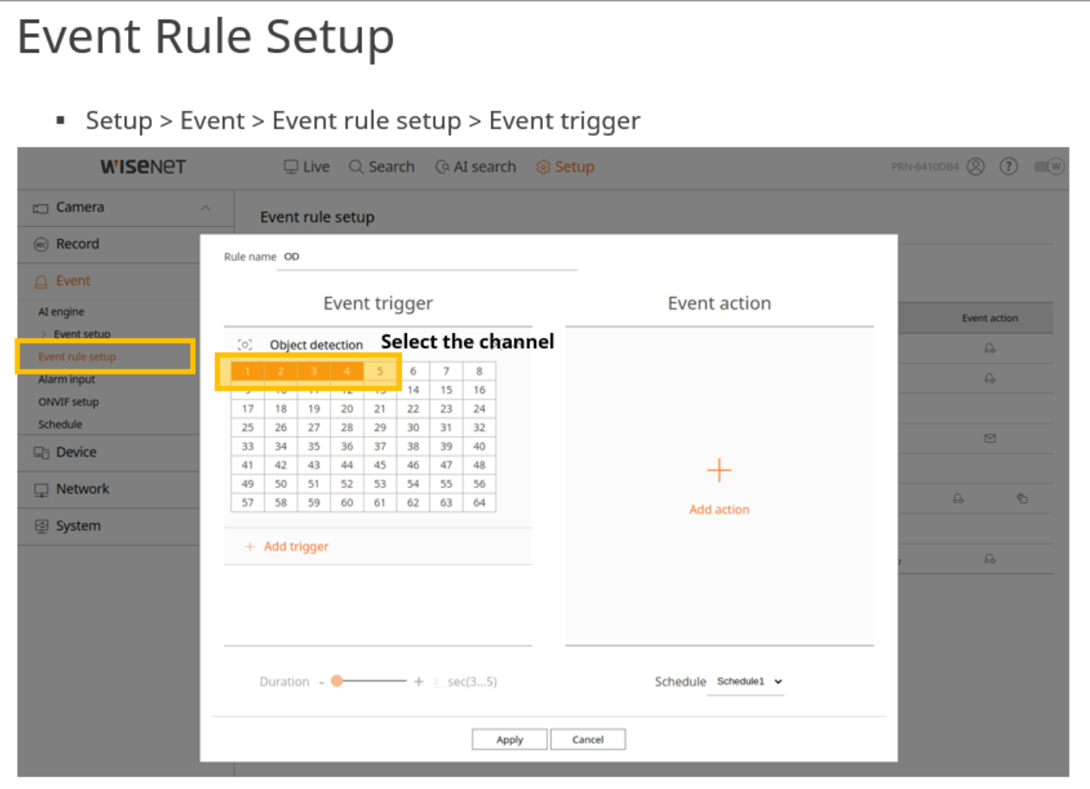

4. Event Rule Setup
- Go to Setup > Event > Event rule setup > Event trigger
- Among the [Event Trigger] items, select [Object detection]
- Select the target camera for object detection
- Enter [Rule Name] and click [Apply]
Additional Information

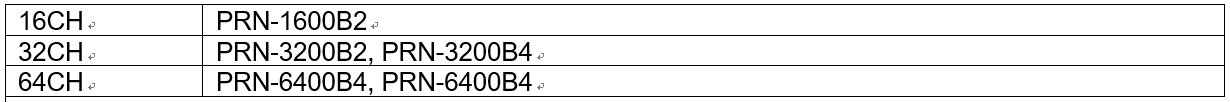

1. AI NVR model list

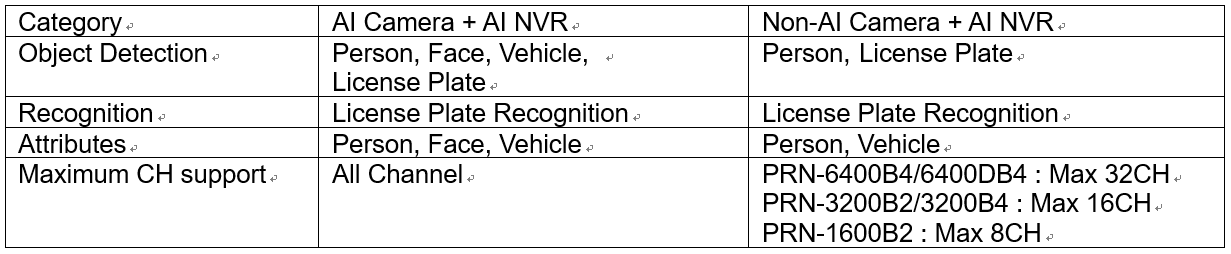

2. Supported feature by camera
