Applies to: Newer QRN, XRN, and PRN models (incomplete)

In an effort to maintain standards, Hanwha uses the web UI for all knowledge base
articles pertaining to product configuration. Open Chrome, enter the IP Address
of your device into the URL bar, and click Enter. If you are not using the web UI
to configure your device, please refer to the user manual for your product.

Summary

This article explains how to set up motion detection on newer NVR models.

For older models of NVRs, see How to set up motion detection recording on older NVRs.

Setting Up Motion Detection

To enable motion detection:

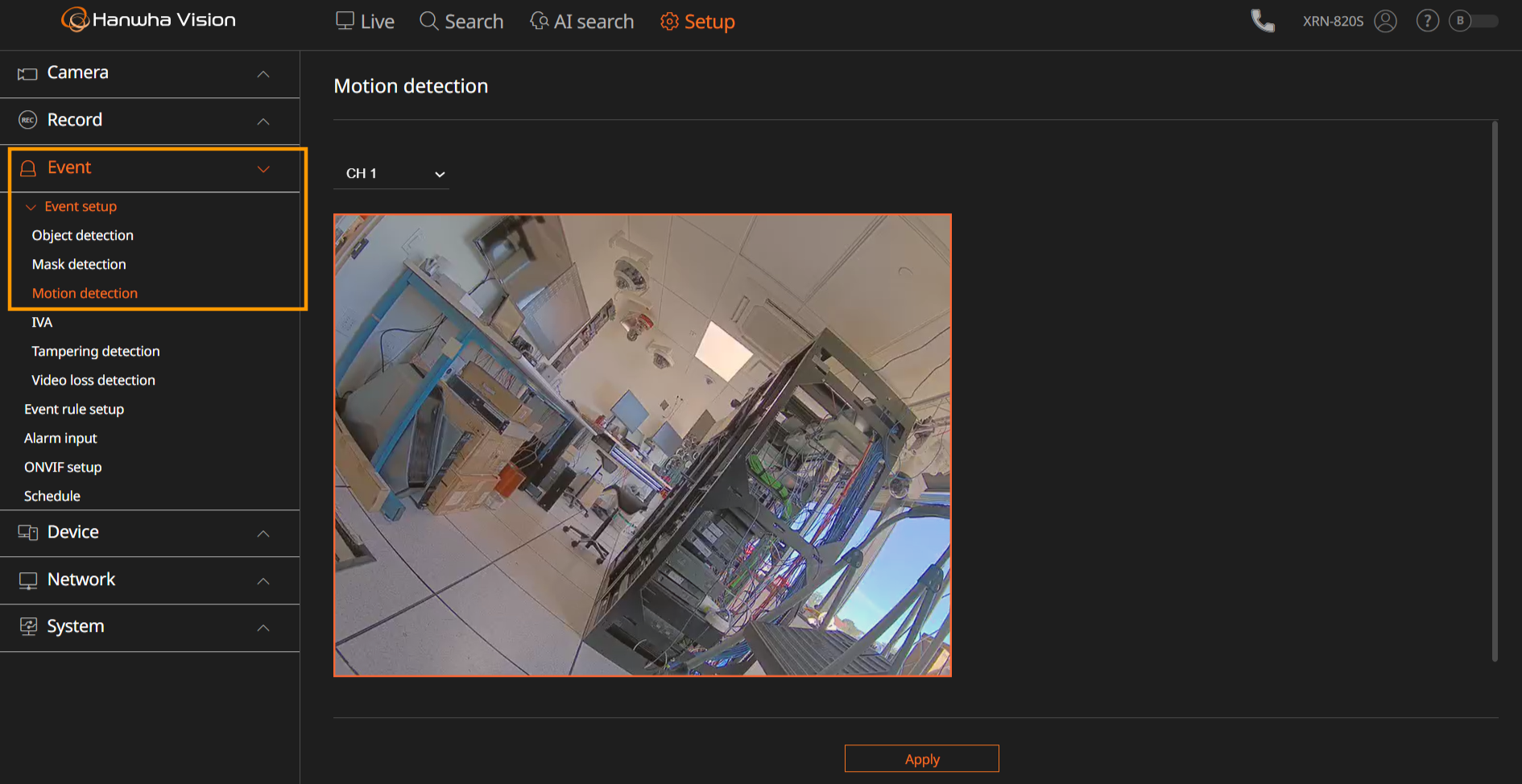

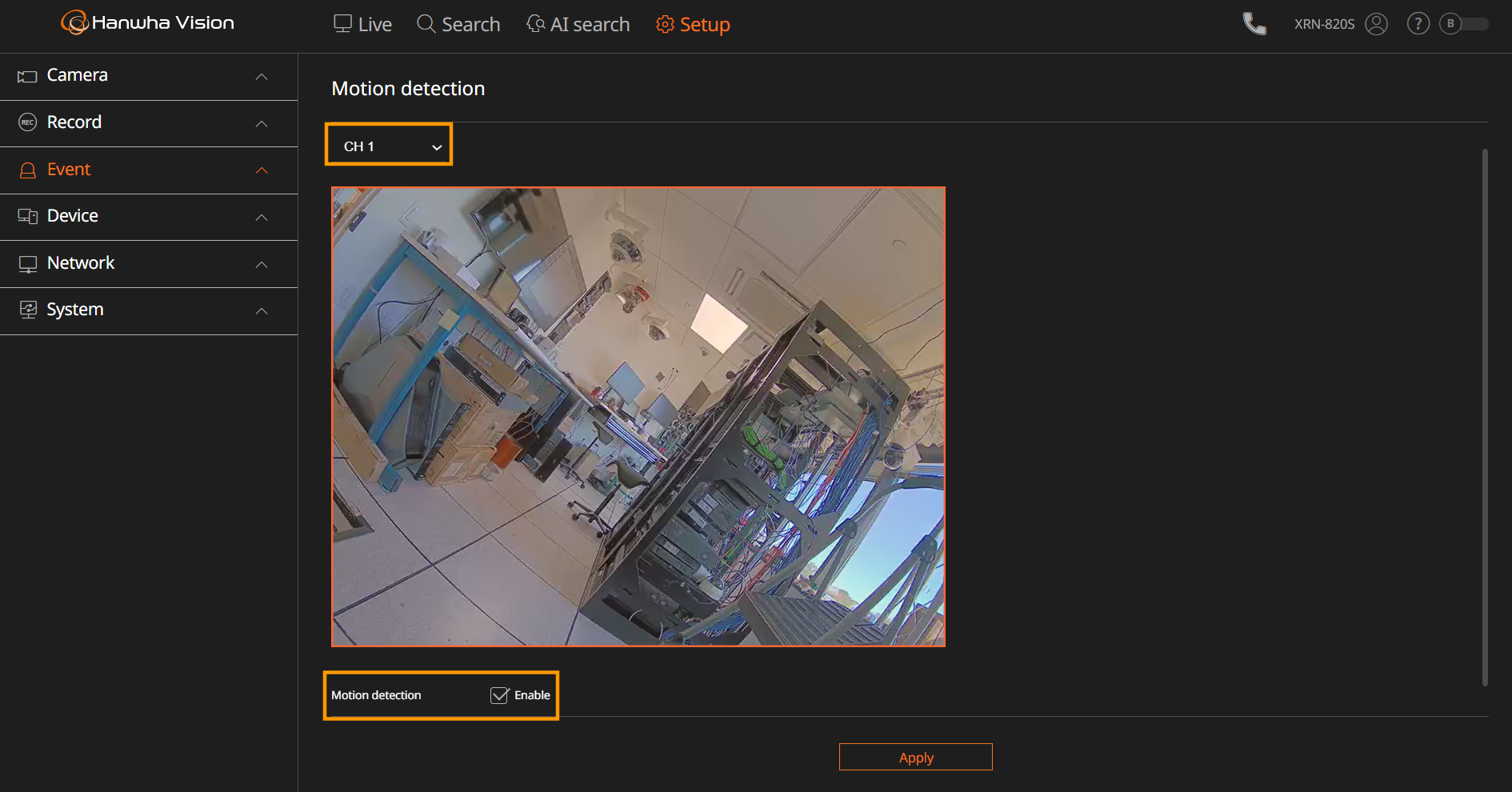

1. Navigate to Setup > Event > Event setup > Motion detection.




2. Select the camera, then check the Enable box.

   IMPORTANT: You must set the motion detection area, sensitivity, and object size
   using the Camera setup page.




3. Navigate to Event rule setup.

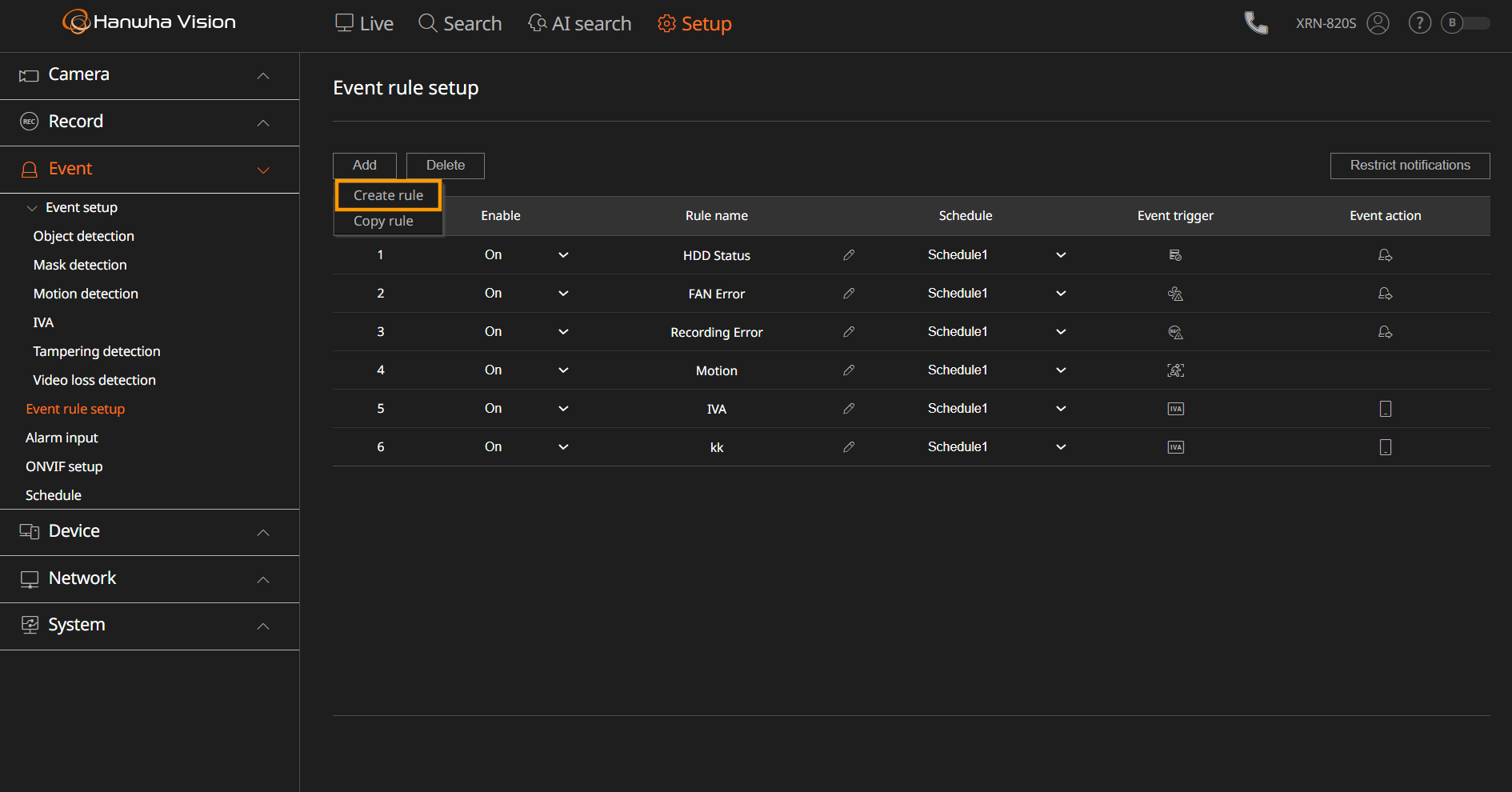

4. Click Add and select Create rule.

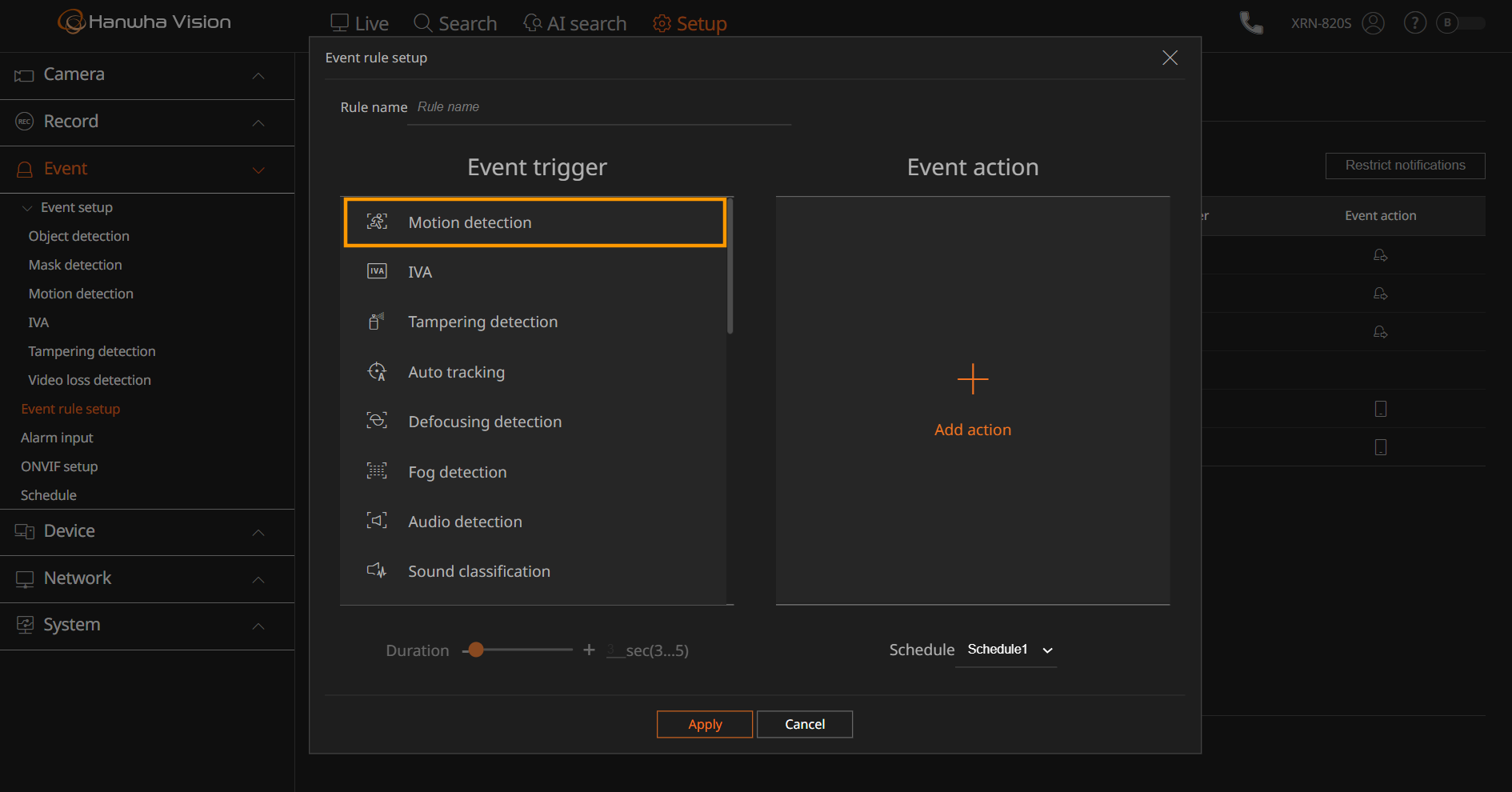

5. In the box that appears, click the Add trigger box and select Motion detection.

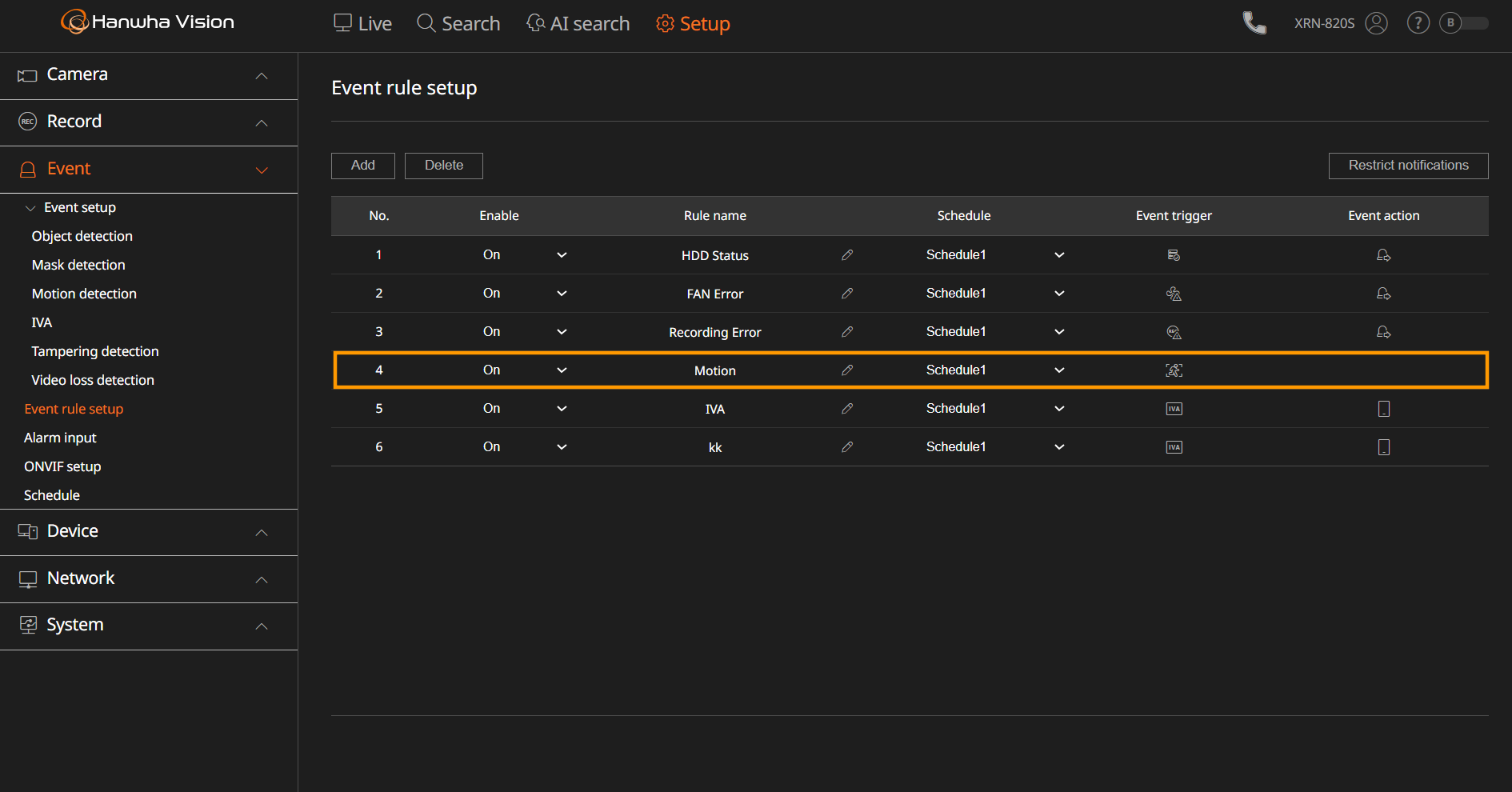

6. Click Apply to add the motion detection rule to the Event rule setup list.

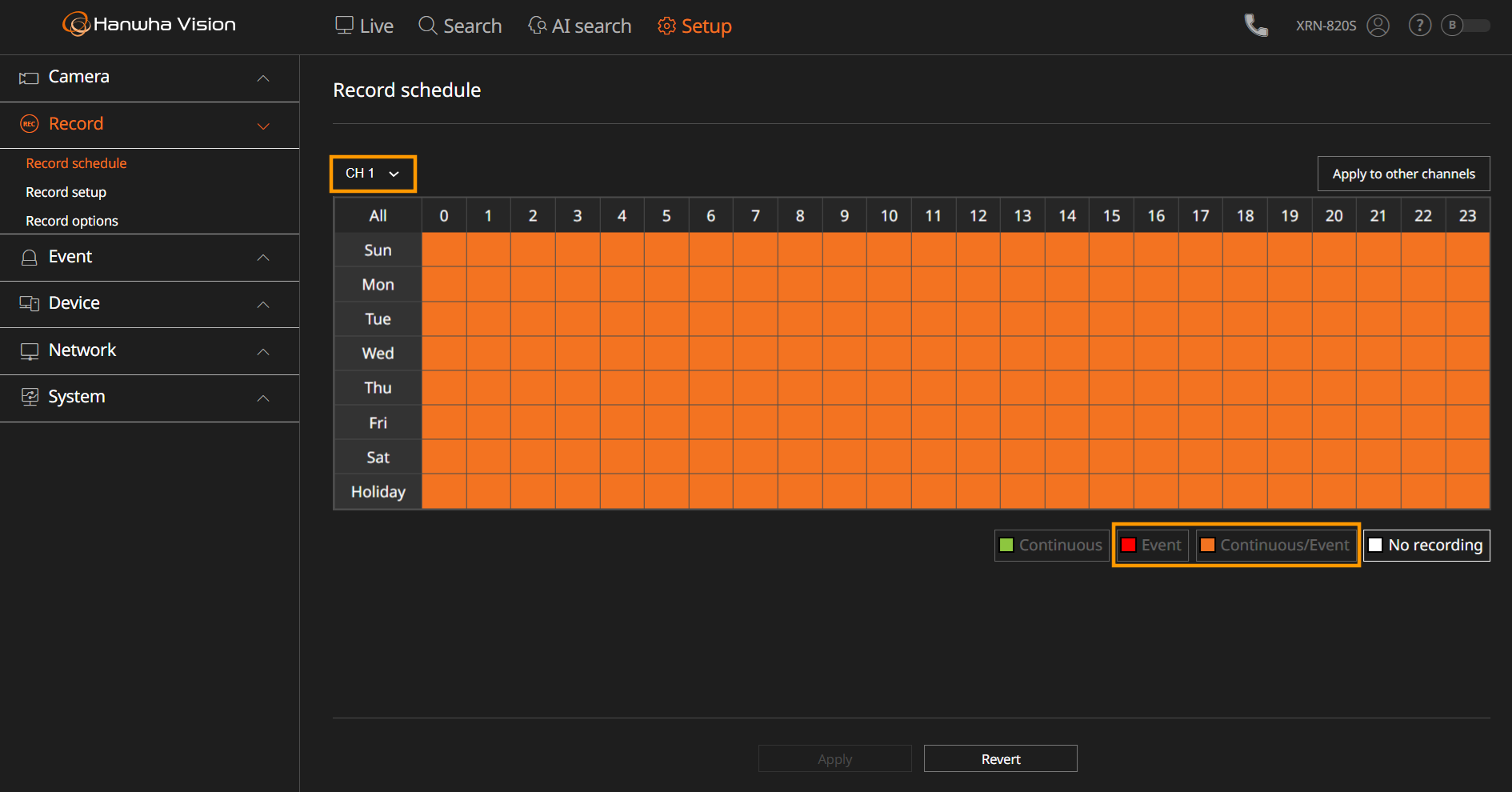

7. Navigate to Record > Record schedule.


8. Select the camera from the drop-down menu and choose either the Event or Continuous/Event recording schedule.



   This sets the camera to record when motion is detected, indicated on the camera timeline by red bars.

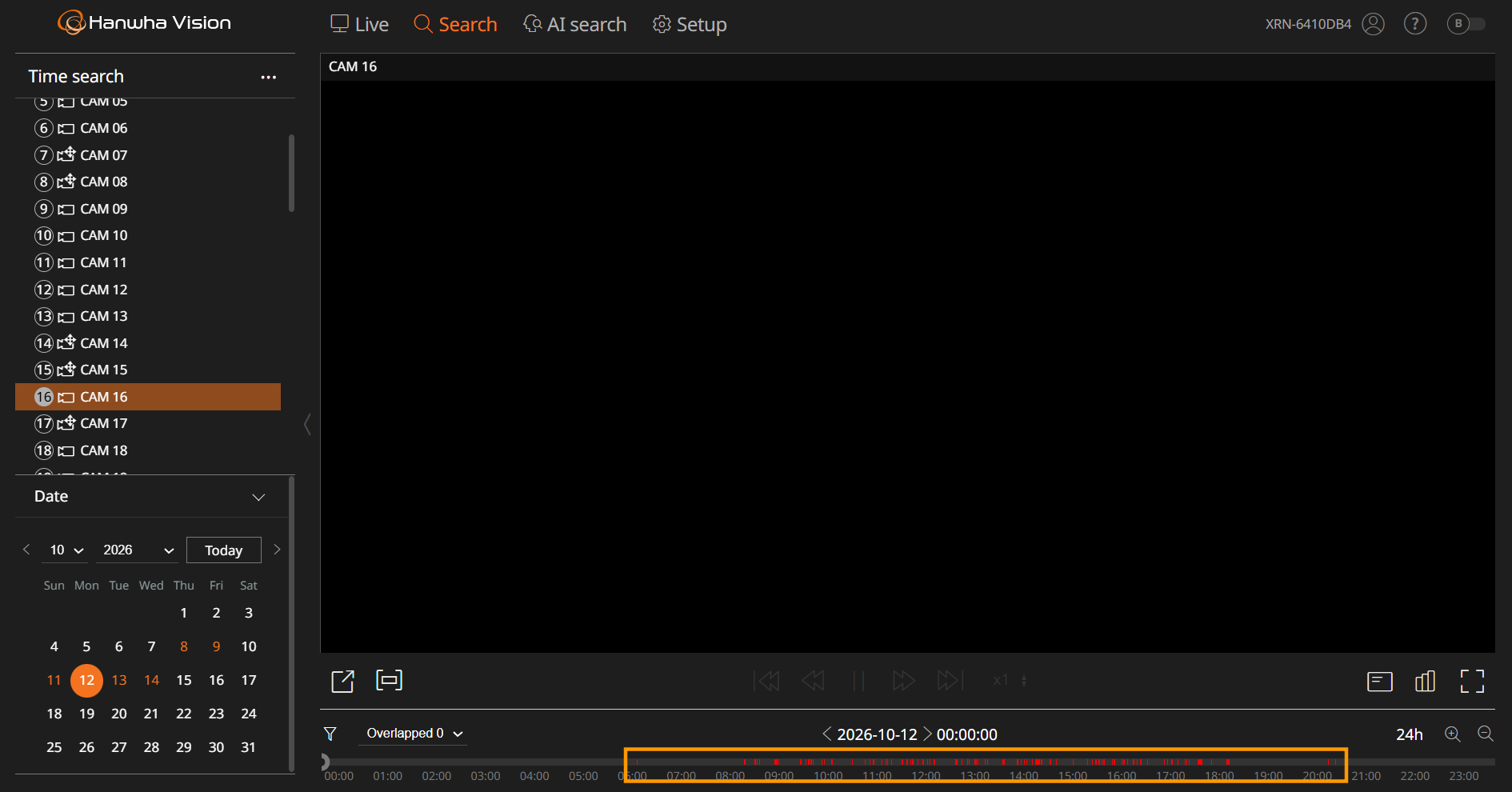

9. To confirm the camera timeline, select Search in the center top menu, then select the camera and date from the left-side menu.



Checking for Motion Detection

If the camera does not record events, you can check if motion detection events are occurring by looking at the camera logs or NVR logs.

Checking Camera Logs

To access camera logs:

1. Log into the camera using your browser (Chrome preferred).

2. Click the Gear icon in the center top.

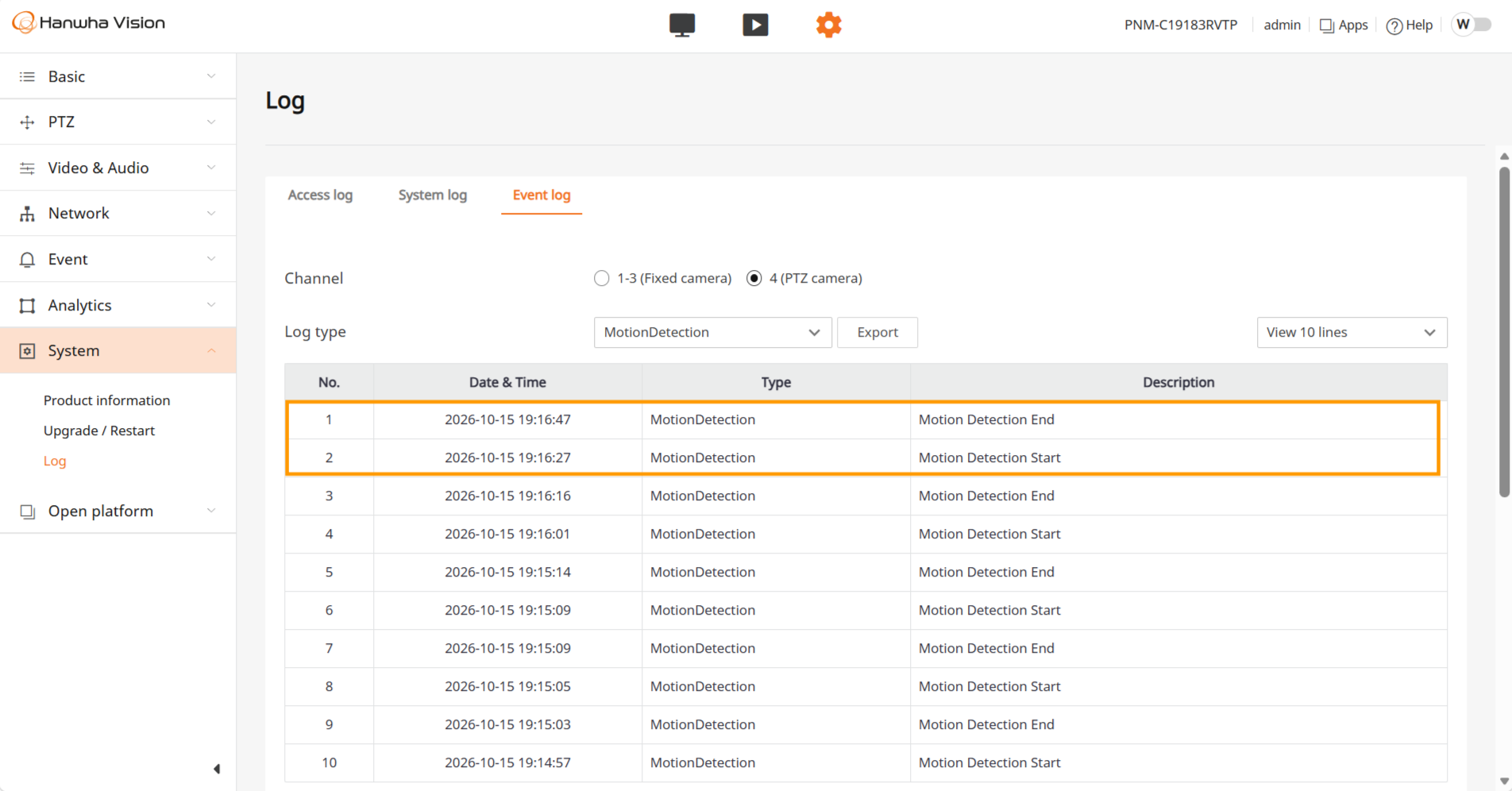

3. Navigate to System > Log > Event log.

   The Event log shows when event recordings start and end, if any are detected.



Checking NVR Logs

To access NVR logs:

1. Log in to the NVR.

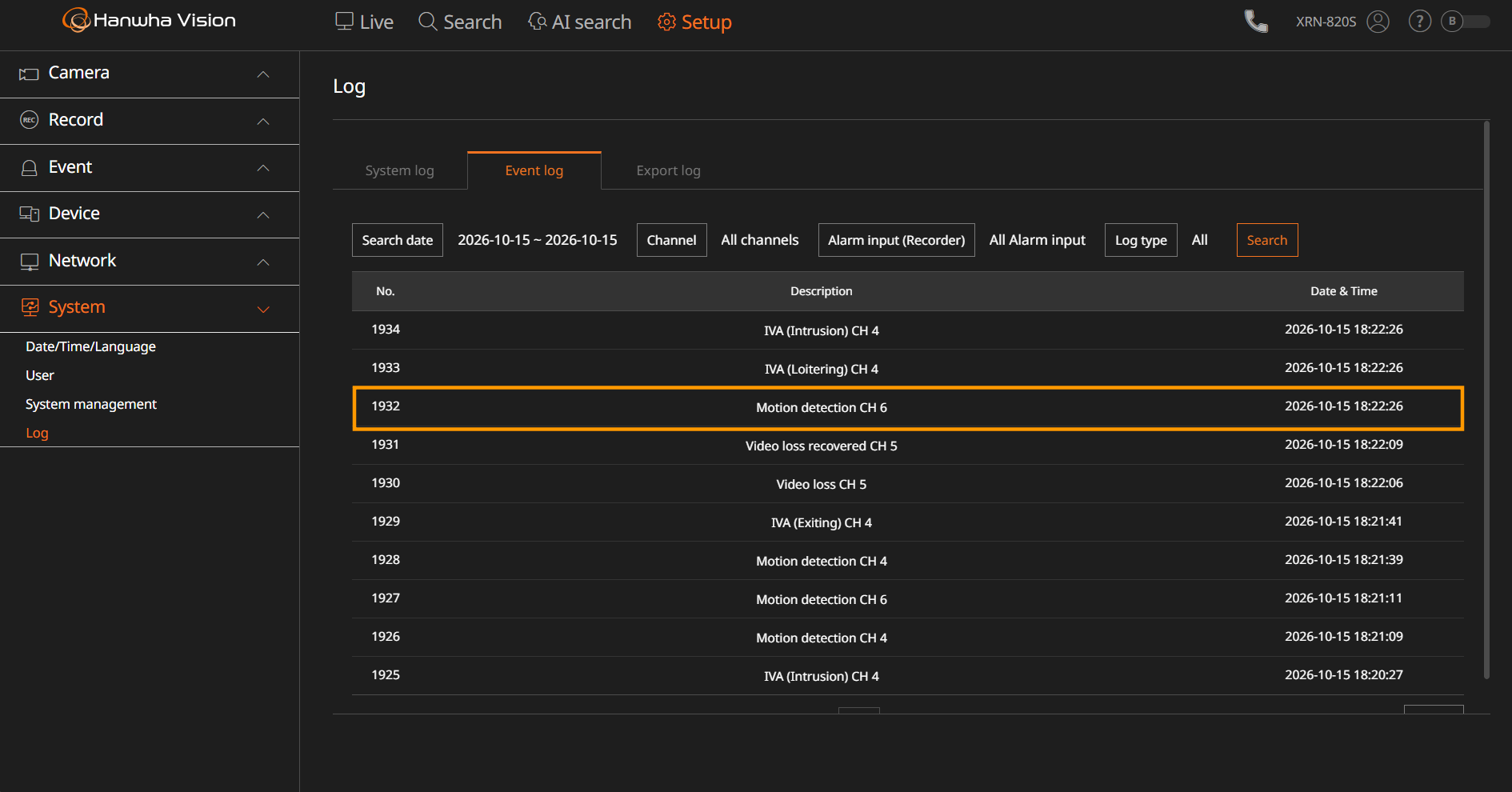

2. Navigate to Setup > System > Event log.

   The Event log shows when events occur, if any are detected.



   If motion detection events are not being detected, you may need to adjust the motion detection area, object size, or sensitivity in the Camera setup page.
